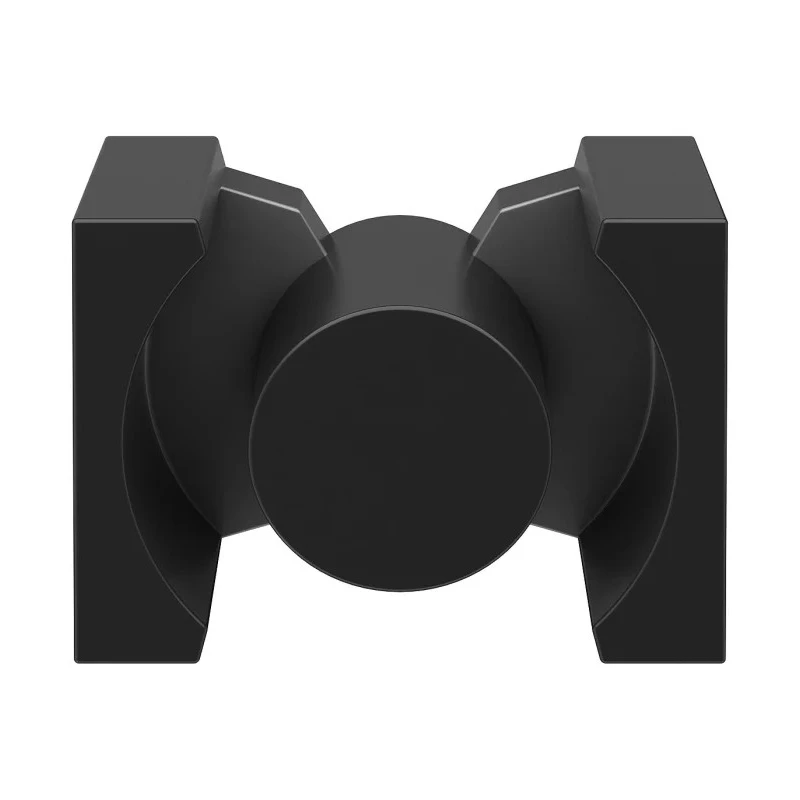

TDK PQ Transformer Ferrite Core 4700 nH N97 Material 35.1mm x 26mm x 17.4mm B65881A0000R097

TDK B65881A0000R097 PQ Transformer Ferrite Core is engineered for efficient and reliable use in power transformers. The core has an AL rating of 4700 nH, constructed with N97 ferrite material which offers excellent magnetic properties ideal for transformer applications.

The PQ core size and dimensions of 35.1 mm length, 26 mm width, and 17.4 mm depth facilitate optimal winding length and heat dissipation. The shape and design reduce thermal resistance by providing a broader surface area for heat dissipation and improved shielding for the winding.

This transformer core supports a maximum operating temperature of 155°C, ensuring stable performance under high thermal conditions. It adheres to IEC 62317-13 standards, representing a high level of quality, safety, and performance consistency.

Manufactured in the Czech Republic, this TDK ferrite core is suitable for various industrial, electrical, and electronic transformer applications requiring reliable magnetic core performance.

Constructed with PQ core size optimized for transformer applications. Features ferrite core type with high AL rating of 4700 nH. Made from N97 material ensuring high performance and durability. Maximum operating temperature rating of 155°C for reliable use in various environments.

Core dimensions: length 35.1 mm, width 26 mm, depth 17.4 mm for precise fitting. Complies with IEC 62317-13 standards for quality and safety assurance. Manufactured in Czech Republic, reflecting international production quality.

This PQ transformer ferrite core is ideal for electrical, industrial, and manufacturing sectors requiring high-performance transformer components. Explore other Transformer Cores and electrical components available through EnvMart for your industrial supply needs.
