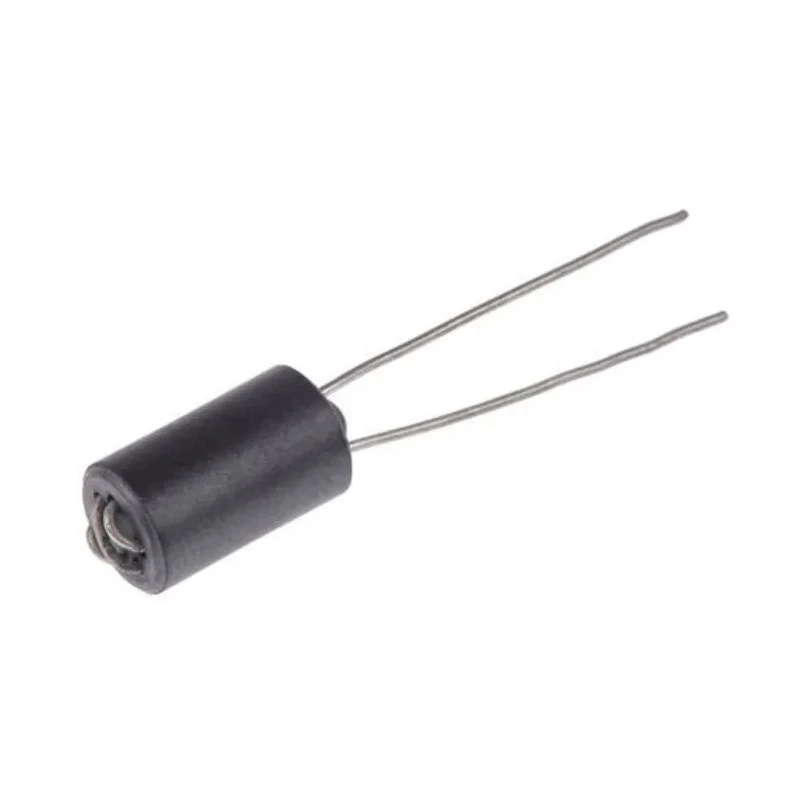

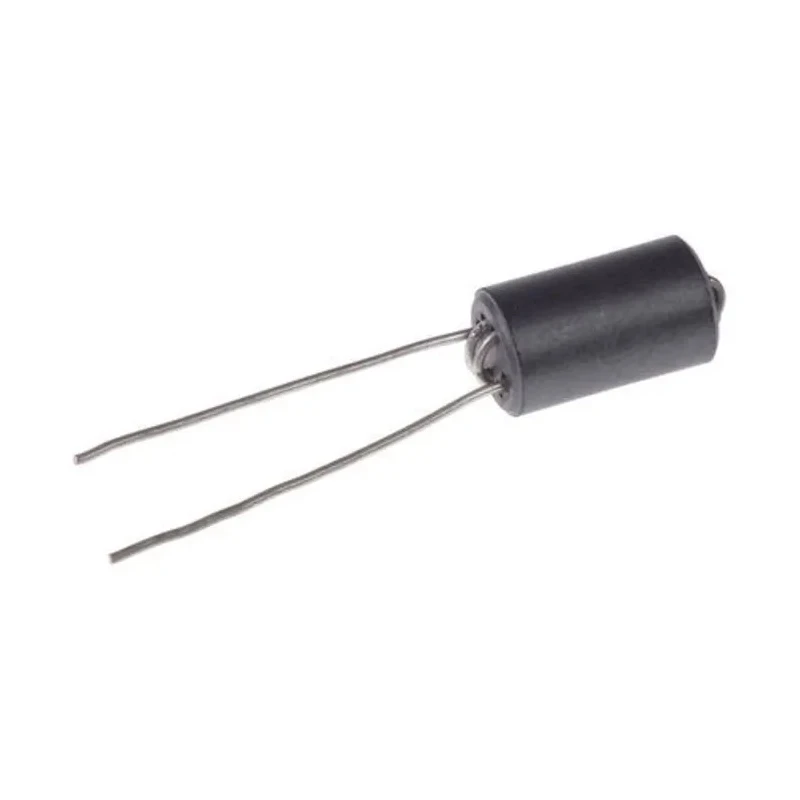

Wurth Elektronik Ferrite Bead Axial Through Hole 10 mm Height 6 mm Diameter 750 Ω Impedance at 25 MHz 74275013

Wurth Elektronik 74275013 Ferrite Bead is a high-quality axial through-hole component designed to effectively suppress high-frequency electromagnetic interference in electronic circuits. Its robust ferrite core and compact dimensions make it suitable for a variety of electronics manufacturing and repair applications.

The bead features an impedance of 750 ohms at 25 MHz and 950 ohms at 100 MHz, providing efficient noise filtering in signal and power lines. It supports a continuous current of 3A with capability of handling up to 5A for short durations, making it reliable for demanding operational conditions.

Constructed with ferrite material, the bead is mounted via through-hole with 2-pin axial form factor, measuring 10 mm in height and length and 6 mm in diameter. The device operates within a temperature range from -25°C to 125°C, ensuring stability across diverse environmental conditions.

Its low maximum DC resistance of 20 mΩ minimizes losses, enhancing circuit efficiency while conforming to environmental and safety regulations such as REACH and RoHS. The ferrite bead is especially beneficial for suppressing electromagnetic interference in radio frequency applications, digital devices, and PCB designs.

This product is essential for engineers and technicians involved in the manufacturing, assembly, testing, and maintenance of electronic equipment requiring EMI protection. Operates with 750 ohms impedance at 25 MHz frequency.

Supports a continuous current rating of 3A and short-term up to 5A. Constructed with ferrite material for high-frequency interference reduction. Suitable for printed circuit board (PCB) through-hole mounting. Temperature range from -25°C to 125°C for robust performance.

Compact axial package with 10 mm length and 6 mm diameter dimensions. Maximum DC resistance is 20 milliohms ensuring minimal power losses. Complies with REACH and RoHS environmental standards. Ideal for radio frequency interference suppression in digital and electronic devices.
