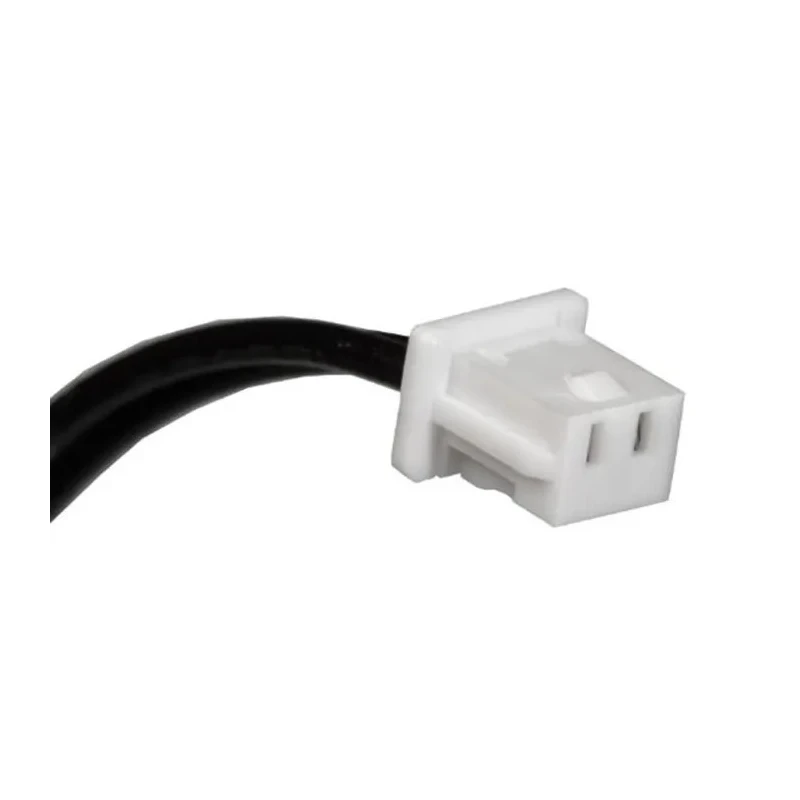

Molex Wire to Board Cable Assembly 8 Way Female to 2 Way Female PicoBlade, 125V, 300 mm Length 15134-0203

Molex 15134-0203 Wire to Board Cable Assembly with 8 Way Female to 2 Way Female PicoBlade connectors delivers reliable connections for industrial and electronic applications. Rated for 125V and constructed with UL1061 discrete wires, this 300 mm cable assembly ensures efficient routing of power and signals between printed circuit boards.

The low-profile PicoBlade connectors feature a 1.25 mm pitch, enabling compact and space-saving designs suitable for environments with limited space. Friction lock mechanisms secure the connectors firmly to mating headers, ensuring stability even in applications subject to vibration or handling.

This cable assembly is insulated, providing protection against electric shocks and is compliant with standards including 2011/65/EU RoHS, ISO and TS-16949, and UL1061. The reliable design supports a wide temperature range from -40°C to +85°C, allowing use in harsh and demanding industrial environments.

Features include pin-to-pin mapping which removes the need for specialized cable layouts, tin-plated contact receptacles for optimal electrical conductivity, and a durable black cable jacket for mechanical protection.

Applications include industrial process control systems, medical patient monitoring equipment, and gaming consoles that require secure and reliable wire-to-board cabling solutions.

This PicoBlade cable assembly is designed to simplify prototyping and production tasks. Friction locks prevent accidental disconnections in vibrating conditions. Cable length is 300 mm with 8 contact points on the female connector side and 2 contacts on the opposite female connector side.

Operating voltage of 125V and current rating of 1A adheres to industry standards. Conforms to multiple international quality and safety standards. Explore more wire to board cable assemblies and related components at EnvMart for your industrial and electrical application needs.
