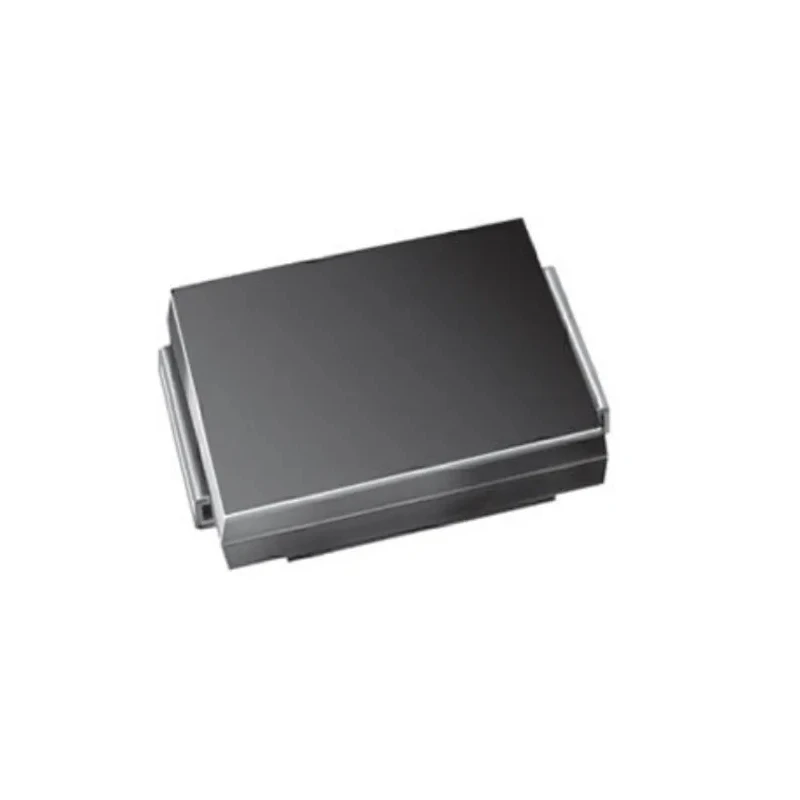

Vishay Bi-Directional TVS Diode 3 kW Surface Mount DO-214AB Package SMC3K100CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | SMC3K100CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 162V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 111V |
| Maximum Reverse Stand-off Voltage Vwm | 100V |
| Peak Pulse Power Dissipation Pppm | 3kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 18.5A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Offers bi-directional surge protection with maximum peak pulse power dissipation of 3 kW.
- Surface mount package type DO-214AB (SMC) ideal for printed circuit boards.
- Minimum breakdown voltage at 111 V ensuring reliable voltage suppression.
- Clamping voltage of 162 V and maximum reverse stand-off voltage of 100 V for effective transient voltage control.
- Certified to meet automotive AEC-Q101 standards for quality and reliability.
- Operating temperature range from -55°C to 150°C suitable for industrial environments.
- Low maximum reverse leakage current of 1 μA ensures minimal power loss.
- Test current specified at 1 mA for performance verification.
Product Description
Vishay SMC3K100CAHM3_A/H is a high-performance Bi-Directional TVS Diode designed for transient voltage suppression in sensitive electronic circuits.
This device features a surface mount DO-214AB (SMC) package and delivers a peak pulse power dissipation rating of 3 kW following a 10/1000 μs waveform which is common in surge events.
The diode protects components against voltage spikes induced by inductive load switching, lightning, and electrostatic discharge (ESD), making it well suited for industrial, automotive, telecommunication, computer, and consumer electronics applications.
Its minimum breakdown voltage of 111 V and maximum reverse stand-off voltage of 100 V enable reliable voltage clamping at 162 V, efficiently limiting transient voltages. With an operating temperature range from -55°C to 150°C, it maintains durability in demanding conditions, further certified to meet stringent automotive grade AEC-Q101 standards.
The low reverse leakage current of 1 μA minimizes power dissipation during normal operation, enhancing system efficiency. Offers bi-directional surge protection with maximum peak pulse power dissipation of 3 kW. Surface mount DO-214AB (SMC) package suitable for compact PCB designs.
RoHS compliant for environmental and health safety. Very fast response time providing excellent protection against transient surges. Meets automotive qualification ensuring reliability in vehicle electronics. Low incremental surge resistance enhancing clamping efficiency.
Ideal for industrial, telecommunications, automotive and consumer electronic device protection. The product is supplied in reels and designed to meet MSL level 1 standards with a peak soldering temperature of 260 °C. For high-quality transient voltage suppression solutions, explore additional Vishay semiconductor products available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse power dissipation of this model is 3 kW, which is effective for transient voltage suppression during surge events.
The clamping voltage of this TVS diode is 162 V, providing effective transient voltage control.
The minimum breakdown voltage is 111 V, ensuring reliable voltage suppression in sensitive circuits.
The maximum reverse stand-off voltage for this model is 100 V, which helps in limiting transient voltages effectively.
It operates within a temperature range of -55°C to 150°C, making it suitable for industrial environments.
The maximum reverse leakage current is 1 μA, which minimizes power loss during normal operation.
The dimensions of the DO-214AB (SMC) package are 7.11 mm in length, 2.62 mm in width, and 6.22 mm in height.
This model is certified to meet the automotive AEC-Q101 standards for quality and reliability.
The test current specified for this diode is 1 mA, which is used for performance verification.
The package type is DO-214AB (SMC), which is designed for surface mounting on printed circuit boards.
Yes, this TVS diode is RoHS compliant, ensuring it meets environmental and health safety standards.
This diode is suitable for applications in industrial, automotive, telecommunications, computer, and consumer electronics for transient voltage suppression.
