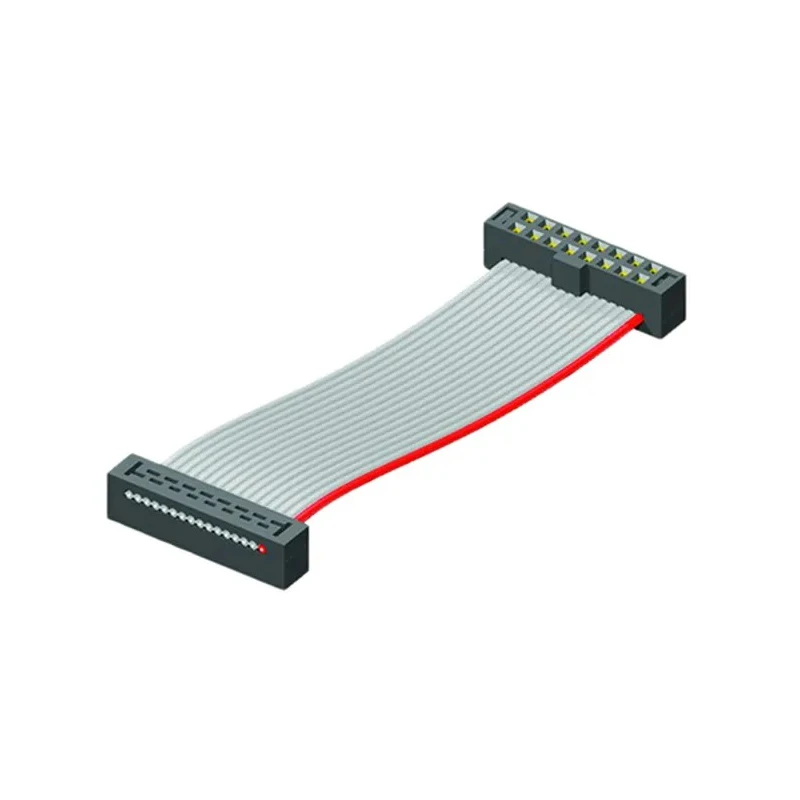

Samtec Flat Ribbon IDC Socket Cable Assembly 100 mm Length Tiger Eye IDC to Tiger Eye IDC TCSD-08-D-04.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-08-D-04.00-01-N |
| Cable Length | 100mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | Tiger Eye IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- Flat ribbon cable enables organized wiring and multiple signal transmissions.
- Constructed with a 16-way design for extensive connectivity.
- Features gold-plated contacts to resist corrosion and ensure longevity.
- Current rating of 2.8A supports safe operation in low-power electronic systems.
- Built-in polarising notch minimizes connection errors and mating mistakes.
- Robust grey PVC jacket offers electrical insulation and mechanical durability.
- Operating temperature range from -40°C to +105°C suits industrial environments.
- Connector genders are female on both ends for correct mating.
Product Description
Samtec TCSD-08-D-04.00-01-N is a Flat Ribbon IDC Socket Cable Assembly featuring Tiger Eye IDC connectors on both ends, designed with a 100 mm cable length for precise wiring connections. This cable assembly offers a 16-way flat ribbon conductor layout, enabling multiple signal and power transmissions within compact electronic and industrial systems.
The cable uses stranded tinned copper wires that provide excellent conductivity and reliability. The gold plating on contact areas significantly enhances corrosion resistance and maintains stable electrical contact over extended use. The built-in polarising notch prevents incorrect mating, reducing connection errors during assembly.
The PVC grey jacket protects the cables from mechanical damage and electrical hazards, making it suitable for harsh industrial and manufacturing use. Its wide operating temperature range from -40°C to +105°C ensures reliable functioning under extreme environmental conditions.
This cable assembly is ideal for use in measuring instruments, consumer electronics, industrial automation equipment, and computer hardware setups requiring robust, compact wiring solutions with reliable connectivity.
Flat ribbon cable design for multiple power and signal transmissions. Gold plating on contacts provides corrosion resistance. 16-way configuration with 100 mm length for short-range connections. Rated current of 2.8A to support low-power systems safely.
Polarising notch design to reduce mating errors. Grey PVC jacket ensures electrical insulation and mechanical protection. Operating temperature range from -40°C to +105°C suitable for industrial applications. Female connectors with Tiger Eye IDC contact type on both ends.
Applications include industrial automation, consumer electronics, measuring instruments, and computer hardware. Explore this Samtec cable assembly in EnvMart’s extensive Wires & Cables category for reliable and efficient wire-to-board connectivity solutions.
Explore more products in our Wire to Board Cable Assembly category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length of this assembly is 100 mm.
This cable assembly uses Tiger Eye IDC connectors on both ends, with female genders for correct mating.
The current rating for this assembly is 2.8A, suitable for low-power electronic systems.
The cable features stranded tinned copper wires for conductivity, and is protected by a grey polyvinyl chloride (PVC) jacket for insulation and durability.
The operating temperature range for this cable assembly is from -40°C to +105°C, making it suitable for industrial environments.
Yes, this cable assembly is RoHS compliant and also meets UL standards.
The built-in polarising notch in the design helps minimize connection errors and incorrect mating during assembly.
This assembly is ideal for use in industrial automation, consumer electronics, measuring instruments, and computer hardware setups.
The series name of this cable assembly is TCSD.
The jacket of this flat ribbon cable is grey in color.
This model is a flat ribbon cable, designed for organized wiring and multiple signal transmissions.
This cable assembly is manufactured in India.
