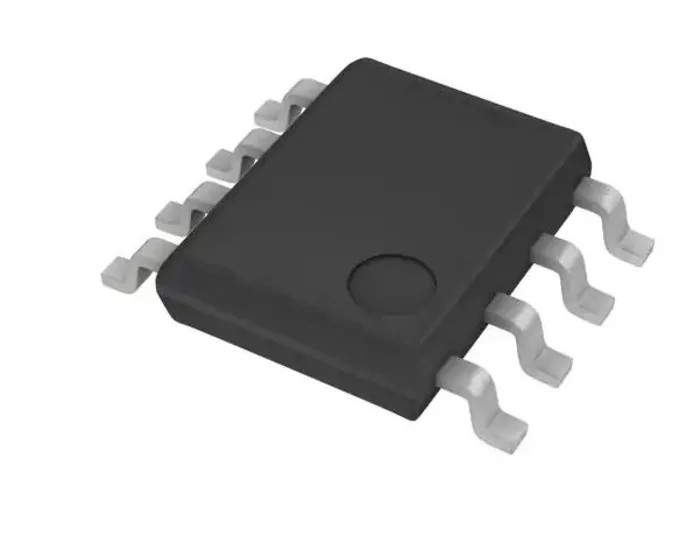

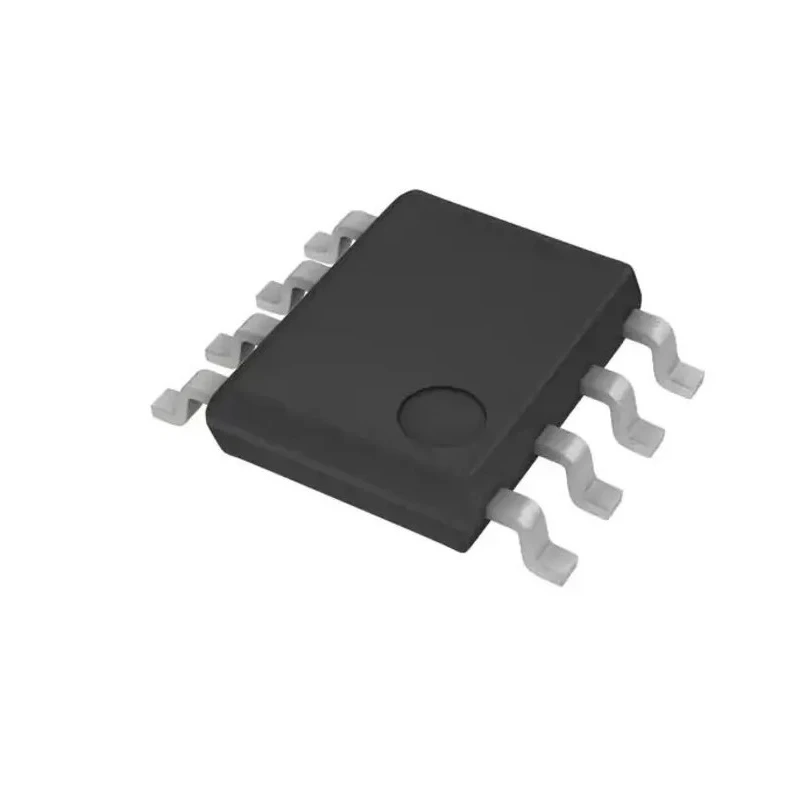

STMicroelectronics Operational Amplifier Dual Channel 22 MHz Bandwidth 5.5V MiniSO 8-Pin TSV7722IYST
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 3.2mm |
| Model | TSV7722IYST |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | TSV7722 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniSO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| GBP - Gain Bandwidth Product | 22MHz |
| Input Bias Current | 20 pA |
| Slew Rate | 11V/μs |
| Input Offset Current | 75 pA |
Key Features
- Dual channel operational amplifier optimized for low-side current measurements.
- 22 MHz gain bandwidth product enables high-speed signal processing.
- Operates at maximum supply voltage of 5.5V ensuring compatibility with low voltage systems.
- Input offset voltage of 200 μV maximum at room temperature for precision applications.
- Supports rail-to-rail output and input common-mode range including low rail.
- Automotive grade version available with AEC-Q100 certification.
- Wide operating temperature range from -40°C to 125°C for harsh environments.
- Low input bias current of 20 pA and input offset current of 75 pA.
Product Description
STMicroelectronics TSV7722IYST is a dual channel operational amplifier designed with a 22 MHz gain bandwidth product to deliver high-speed and precise amplification in various electronic applications. The device comes in an 8-pin MiniSO surface mount package measuring 3.2mm in length, 3.1mm in width, and 1.1mm in height, making it suitable for compact board layouts.
This operational amplifier supports rail-to-rail output and input common-mode range including the low rail, which optimizes the device for low-side current sensing applications. Its input offset voltage of up to 200 μV at room temperature ensures accuracy for sensitive measurements, while a low input bias current of 20 pA and input offset current of 75 pA contribute to low noise performance.
The device operates over a wide temperature range from -40°C to 125°C, making it ideal for automotive and industrial applications. It is compliant with RoHS and specifically designed to meet the automotive AEC-Q100 standard, enhancing its reliability in harsh environments.
With a maximum supply voltage of 5.5V and a high slew rate of 11V/μs, the TSV7722IYST can rapidly respond to input changes and support a maximum output current of 40mA. These characteristics make it highly suitable for precision signal processing in electronic circuit designs.
Engineers in automotive, industrial control, instrumentation, and power management sectors can leverage this amplifier for applications demanding high bandwidth and precision sensitivity. Its compact MiniSO package facilitates integration into densely populated circuit boards where space-saving is critical.
Dual channel operational amplifier optimized for low-side current measurements. 22 MHz gain bandwidth product for high-speed applications. Rail-to-rail output and input common-mode range including low rail. Automotive grade with AEC-Q100 certification compliance.
Compact Surface Mount MiniSO 8-pin package. Wide operating temperature: -40°C to 125°C. Low input offset and bias currents for precision. Maximum supply voltage of 5.5V. High slew rate of 11V/μs enables fast response. Output current capacity of 40mA.
Discover more products in the Operational Amplifier category on EnvMart to suit diverse electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 22 MHz, enabling high-speed signal processing.
It operates at a maximum supply voltage of 5.5V, ensuring compatibility with low voltage systems.
This model has a wide operating temperature range from -40°C to 125°C, making it suitable for harsh environments.
The output current capacity of the TSV7722IYST is 40mA, allowing it to drive loads effectively.
It comes in an 8-pin MiniSO surface mount package, measuring 3.2mm in length, 3.1mm in width, and 1.1mm in height.
This operational amplifier complies with the AEC-Q100 automotive standard, enhancing its reliability for automotive applications.
The input offset voltage is a maximum of 200 μV at room temperature, which is crucial for precision applications.
The slew rate of this operational amplifier is 11V/μs, allowing for rapid response to input changes.
The input bias current is 20 pA and the input offset current is 75 pA, contributing to low noise performance.
Yes, it is optimized for low-side current measurements, supporting rail-to-rail output and input common-mode range including the low rail.
The minimum operating temperature for the TSV7722IYST is -40°C, making it suitable for a variety of environments.
This operational amplifier is compliant with RoHS standards, ensuring it meets environmental regulations.
