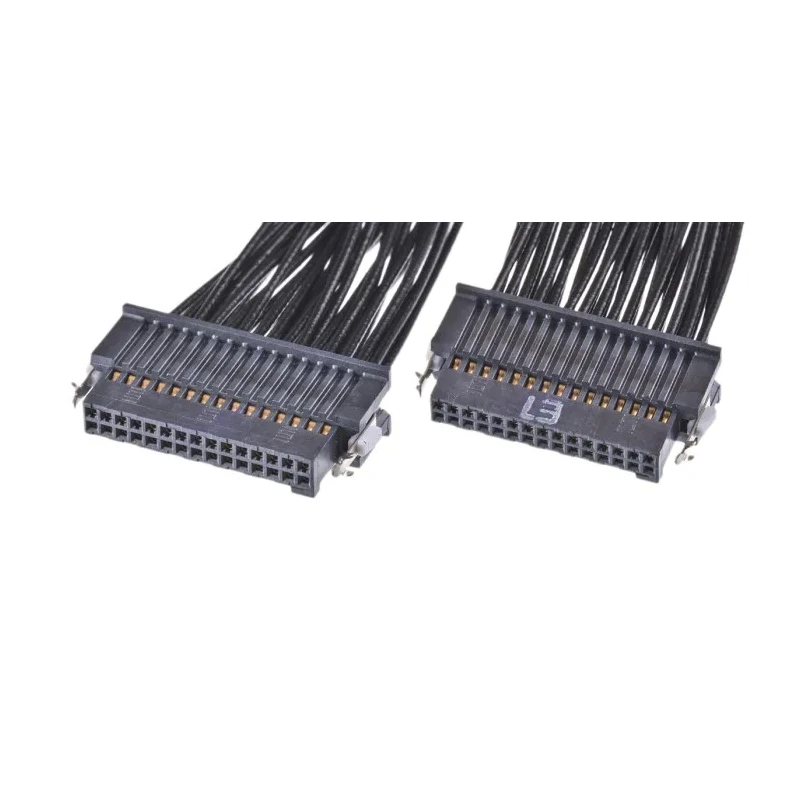

Samtec Wire to Board Cable Assembly 15 Way Female Tiger Eye SFSD to 30 Way Female Tiger Eye SFSD SFSD-15-28-H-10.00-DR-NDX
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 275V ac |
| Brand | Samtec |
| Operating Temperature Range | -35 → 80 °C |
| Model | SFSD-15-28-H-10.00-DR-NDX |
| Cable Length | 250mm |
| Series | SFSD |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant |
| Connector Type A | Tiger Eye SFSD |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 15 |
| Number of Contacts B | 30 |
| Socket Housing Insulator Material | Black LCP |
Key Features
- The cable assembly uses 28 AWG cable with black PVC insulation for durability.
- Both connectors are female with Tiger Eye contacts featuring gold plating for enhanced conductivity.
- The dual-row ISDF series sockets provide robust connection performance.
- Operating temperature ranges from minus 35 to 80 degrees Celsius, ensuring wide environmental compatibility.
- The socket housing insulator is made from black Liquid Crystal Polymer (LCP) for thermal and mechanical stability.
- Designed to meet RoHS compliance standards for environmental safety.
- The cable assembly end has a double end with retention latch and notch down, cross pin configuration.
- Ideal for electrical and automation wiring requiring high reliability connections.
Product Description
Samtec SFSD-15-28-H-10.00-DR-NDX Wire to Board Cable Assembly is a precision cable harness designed for use in electrical, automation, and industrial electronic applications requiring secure and reliable connections. Featuring a 15 way female Tiger Eye SFSD connector to a 30 way female Tiger Eye SFSD connector, this assembly spans 250 mm in length supporting 275V AC voltage.
The cable employs 28 AWG wires with robust black Polyvinyl Chloride (PVC) insulation, providing excellent electrical insulation and mechanical protection. Both connectors feature Tiger Eye contact technology with 0.76 micrometer gold plating on contact areas and 0.076 micrometer gold plating on tails to ensure optimum electrical conductivity and corrosion resistance.
The dual-row ISDF Series sockets offer a secure and consistent connection within electrical systems. The socket housing’s black Liquid Crystal Polymer (LCP) provides high resistance to heat and mechanical stress, enabling reliable operation within an environmental temperature range from -35 to 80 degrees Celsius.
The cable ends incorporate a double end configuration including retention latch and a notch down, crossed pin orientation for secure mating and resistance to vibration. This cable assembly is RoHS compliant, meeting environmental directives on hazardous substances.
The 15 and 30 contact points facilitate complex wiring requirements, providing flexibility in board-to-board connections. Black PVC jacket offers both electrical and environmental protection. Gold plating on contacts ensures high conductivity and long service life.
Wide operating temperature range supports various industrial environments. Robust construction with durable insulating materials guarantees longevity in harsh conditions. Double-ended design with retention latch enhances secure connections, minimizing disconnections.
Meets RoHS compliance for environmental and health safety standards. Suitable for high-reliability applications in industrial electronics, automation, and electrical systems.
This cable assembly is a critical component in wire-to-board interfaces in industrial automation, manufacturing equipment, HVAC control systems, and advanced electronic instrumentation. Its engineered design supports high reliability and performance in demanding usage environments.
Explore more wire to board cable assemblies and compatible connectors at EnvMart for a complete electrical connectivity solution.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this cable assembly is 275V AC.
This model operates within a temperature range of -35 to 80 degrees Celsius.
The cable length of this assembly is 250 mm.
This cable assembly features a 15 way female Tiger Eye SFSD connector on one end and a 30 way female Tiger Eye SFSD connector on the other end.
The cable jacket is made of black Polyvinyl Chloride (PVC).
The socket housing insulator is made from black Liquid Crystal Polymer (LCP).
Yes, this cable assembly is RoHS compliant, meeting environmental directives on hazardous substances.
This assembly is suitable for electrical, automation, and industrial electronic applications requiring secure and reliable connections.
The assembly includes a double end configuration with a retention latch and a notch down, cross pin orientation for secure mating and resistance to vibration.
The connector on one end has 15 contacts, while the connector on the other end has 30 contacts.
The gold plating on the contacts enhances electrical conductivity and provides corrosion resistance, ensuring optimal performance.
This cable assembly is manufactured in India.
