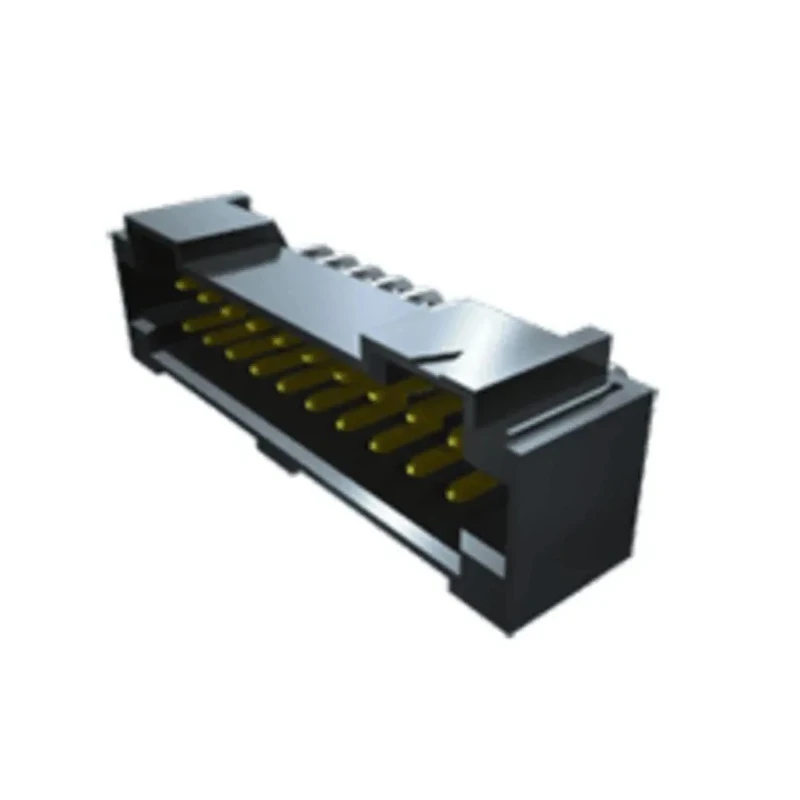

Samtec T2M Series Right Angle Through Hole PCB Header, 50 Contacts, 2 mm Pitch, 2 Row, Shrouded T2M-125-01-L-D-RA-WT

Free Delivery in India | Lowest Global Shipping Charges

Samtec T2M Series Right Angle Through Hole PCB Header, 50 Contacts, 2 mm Pitch, 2 Row, Shrouded T2M-125-01-L-D-RA-WT

Name: Samtec T2M Series Right Angle Through Hole PCB Header, 50 Contacts, 2 mm Pitch, 2 Row, Shrouded T2M-125-01-L-D-RA-WT
Brand: Samtec
SKU: 162802
Price: 15.33 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Right Angle
Current	3.8A
Model	T2M-125-01-L-D-RA-WT
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	T2M
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Silver, Tin
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features a shrouded design to protect contacts and ensure secure mating.
Constructed with liquid crystal polymer housing for high insulation and durability.
Phosphor bronze male contact pins plated with silver and tin for conductivity and corrosion resistance.
Rated for 3.8A current per contact and 250V operating voltage.
Two rows of 50 contacts provide compact and efficient PCB interfacing.
Designed for through-hole mounting with a 2 mm row pitch and right-angle orientation.
Operational temperature range from -55°C to 125°C for diverse applications.
Solder termination type ensures reliable mechanical and electrical connection.

Product Description

Samtec T2M-125-01-L-D-RA-WT is a high-quality right angle through hole PCB header designed for electronic and industrial applications requiring reliable and durable board-to-board connections. It features 50 male phosphor bronze contact pins arranged in two rows with a precise 2 mm pitch to ensure stable and compact mounting on circuit boards.

The connector housing is made of robust black liquid crystal polymer, providing excellent insulation and mechanical strength. The contact pins are plated with silver and tin to improve conductivity and resist oxidation, thereby extending connector lifespan.

This PCB header supports a current rating of 3.8 amperes per pin and a voltage rating of 250 volts AC or 350 volts DC. It operates efficiently within temperatures from -55°C to 125°C, making it suitable for various harsh and industrial environments.

The design includes a shrouded connector system that protects contacts against damage and reduces the risk of incorrect mating. The right angle orientation and through-hole mounting type facilitate easy integration into PCBs requiring compact layouts.

Shrouded connector design prevents accidental contact and improves connection reliability. The liquid crystal polymer housing ensures mechanical durability and electrical insulation. Phosphor bronze and silver/tin plating provide excellent contact performance and corrosion resistance.

Rated for 3.8A current and 250V voltage for standard industrial electronic applications. Wide operating temperature range supports use in demanding environments. Solder termination ensures strong mechanical fixing and electrical continuity.

2 mm pitch with 50 contacts arranged in 2 rows for efficient PCB connectivity.

This PCB header is ideal for electronics manufacturing, industrial control equipment, telecommunications hardware, and automotive PCB assembly where reliable board-to-board connection is critical.
