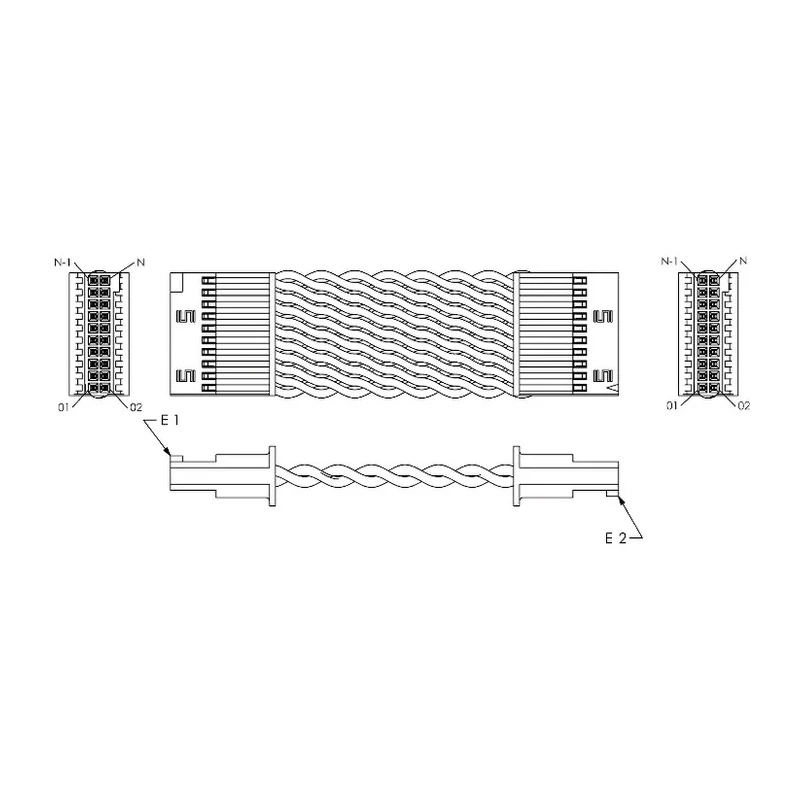

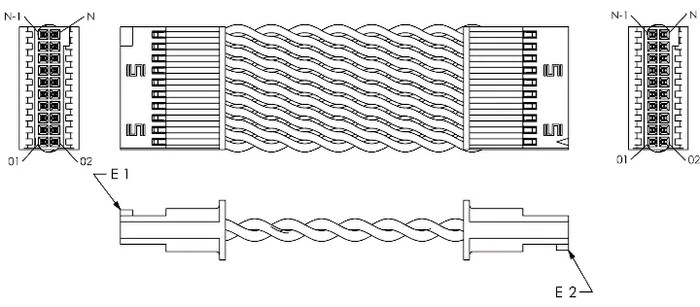

Samtec Wire to Board Cable Assembly 20 Way Female to 40 Way Female Tiger Eye SFSD, 250 mm Length SFSD-20-28-H-10.00-DR-NDX

Samtec SFSD-20-28-H-10.00-DR-NDX is a high-quality Wire to Board Cable Assembly designed for use in electronics and electrical automation applications. This assembly features a 20 Way Female Tiger Eye SFSD connector on one end and a 40 Way Female Tiger Eye SFSD connector on the other, connected by a 250 mm length of 28 AWG cable insulated with black polyvinyl chloride (PVC) jacket.

The Tiger Eye contacts have 0.76 μm gold plating on the contact surfaces and 0.076 μm gold plating on the tails, providing excellent conductivity and corrosion resistance. The sockets use a black liquid crystal polymer (LCP) housing insulator material ensuring robust insulation and mechanical stability.

This cable assembly operates reliably within a temperature range of -35 to 80 °C, making it suitable for diverse industrial environments. The double end with retention latch and notch down crossed pin (NDX) end option enhances secure connection and alignment in assembly systems.

The product is RoHS compliant, confirming its adherence to environmental safety regulations. Its voltage rating of 275V AC is ideal for a wide range of electrical connection tasks.

Typical applications include electronic equipment wiring, automation control panels, and various industrial electronics requiring reliable wire to board connections. Constructed with 28 AWG cable and Black PVC jacket for durability.

Tiger Eye contacts with 0.76 μm gold plating on contact area ensure reliable conductivity. Black LCP socket housing insulator for stable mechanical support. Operating temperature range from -35 to 80 °C for versatile application environments.

Double end retention latch with notch down crossed pin end options. Meets RoHS compliance standards for environmental safety. Designed for wire to board connection applications in electronics and electrical assemblies.
