Samtec Flat Ribbon IDC Socket Cable Assembly 100 mm Length TCSD Series TCSD-15-D-04.00-01-N

Free Delivery in India | Lowest Global Shipping Charges

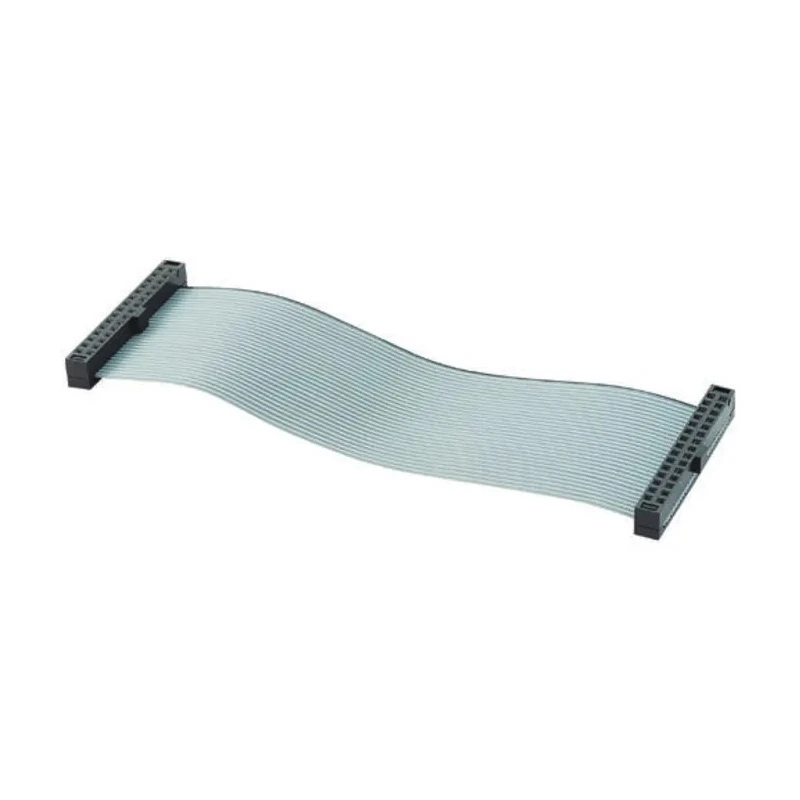

Samtec Flat Ribbon IDC Socket Cable Assembly 100 mm Length TCSD Series TCSD-15-D-04.00-01-N

Name: Samtec Flat Ribbon IDC Socket Cable Assembly 100 mm Length TCSD Series TCSD-15-D-04.00-01-N
Brand: Samtec
SKU: 189168
Price: 20.98 USD
Availability: InStock



Category Wire to Board Cable Assembly Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Model	TCSD-15-D-04.00-01-N
Cable Length	100mm
Series	TCSD
Cable Type	Flat Ribbon
Jacket Material	Polyvinyl Chloride
Standards/Approvals	RoHS Compliant, UL
Connector Type A	TCSD IDC
Connector Gender A	Female
Jacket Colour	Grey
Contact Gender A	Female

Key Features

The cable assembly has a 2.00 mm pitch double row female socket on both ends.
It consists of a 28 AWG stranded tinned copper wire with PVC insulation for durability.
The jacket material is grey polyvinyl chloride, providing mechanical protection.
Gold-plated Tiger Eye IDC contacts ensure reliable, precise mating with polarizing notch.
Compatible with various Samtec headers such as TMM, TMMH, STMM, and MTMM series.
Complies with RoHS and UL standards for quality and safety.
Ideal for industrial, electronic, and automation applications requiring reliable ribbon cable assemblies.

Product Description

Samtec TCSD-15-D-04.00-01-N is a Flat Ribbon IDC Socket Cable Assembly from the TCSD series with a length of 100 mm designed for industrial and electronic applications.

This cable assembly features a 2.00 mm pitch double row female socket connector on either end, utilizing 28 AWG 7/36 stranded tinned copper conductors with a grey polyvinyl chloride jacket for enhanced durability and flexibility.

The cable incorporates Samtec's Tiger Eye IDC contacts that are gold plated to ensure high reliability and excellent electrical contact, augmented by a polarizing notch to maintain accurate connector mating.

The assembly is compliant with RoHS and UL standards, reflecting its suitability for use in electronics, automation systems, and wiring harnesses requiring quality ribbon cable assemblies.

Samtec's TCSD series assemblies are compatible with a range of headers including TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM series, offering versatile connectivity solutions.

The cable length is precisely 100 mm for compact wiring needs. The flat ribbon construction supports orderly cable management in tight spaces. Polyvinyl chloride jacket offers excellent mechanical protection and flexibility.

The gold-plated IDC contacts provide secure and corrosion-resistant connections. The series emphasizes industrial-grade reliability with compliance to major electrical norms. These assemblies suit applications in electronics manufacturing, test equipment, industrial automation, and more.

The polarized notch design ensures precise connector orientation and ease of use. Please explore the Industrial & Electrical cables category at EnvMart for similar high-quality cable assemblies and connectors.
