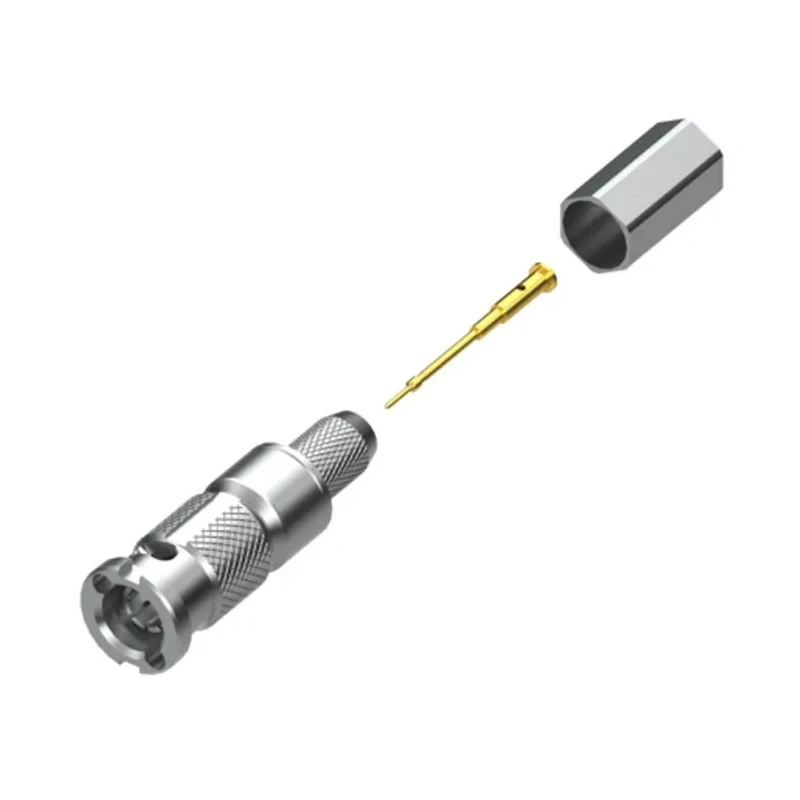

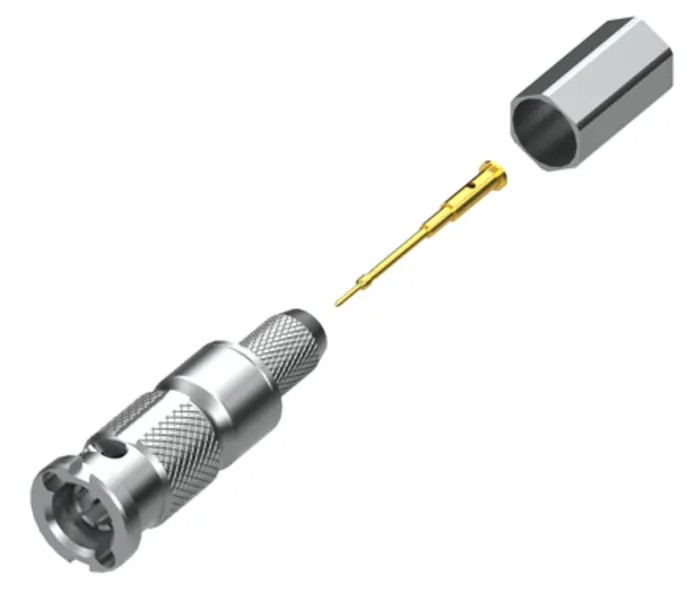

Samtec HD-BNC Series 75 Ω Coaxial Connector Cable Male BNC, Straight Body Crimp HDBNC-P-C-GN-ST-CA8
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Samtec |
| Orientation | Straight |
| Model | HDBNC-P-C-GN-ST-CA8 |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Copper Alloy |
| Series | HD-BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Cable Type | BELDEN 1855A |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- This coaxial connector features a 75 ohm impedance ideal for 3G-SDI performance.
- The simple bayonet coupling allows quick and secure connection with a quarter-turn locking mechanism.
- Constructed with gold-plated body and copper alloy contacts for excellent conductivity and corrosion resistance.
- Designed for use with BELDEN 1855A cable and suitable for RG6 and Belden 1694A cables.
- Operates reliably between -65°C and 125°C temperature range.
- Supports operating frequency up to 6 GHz for demanding instrumentation and broadcast applications.
- Ideal for security, telecom, and professional broadcast systems.
- Easy to install with crimp termination ensuring firm cable attachment and consistent electrical performance.
Product Description
Samtec HDBNC-P-C-GN-ST-CA8 is a 75 Ω coaxial connector cable featuring a male BNC connector with a straight body and crimp termination type. The connector is part of the HD-BNC series, known for delivering true 75 ohm performance supporting high-frequency signals up to 6 GHz, making it suitable for professional 3G-SDI broadcast and video instrumentation applications.
The connector body is gold plated with copper alloy contacts that ensure superior signal integrity and resistance to corrosion, prolonging connector life in demanding environments. With a simple bayonet coupling mechanism requiring only a quarter turn, the connector ensures quick and secure mating and unmating, enhancing reliability and ease of use.
This cable assembly is designed specifically to fit BELDEN 1855A cable and is compatible with RG6 and Belden 1694A types. It operates effectively over a wide temperature range from -65°C to +125°C, making it suitable for varied industrial and outdoor conditions.
The male straight body design provides normal polarity and is optimized for high-density cable mount applications. Its crimp termination type guarantees solid mechanical retention and stable electrical characteristics essential for critical signal transmission.
Common use cases include instrumentation, security systems, telecom networks, and broadcast video transmission. The Samtec HD-BNC series is recognized for ease of installation, reliable signal performance, and durability in professional electronic systems requiring 75 ohm impedance coaxial connections.
This coaxial cable connector features true 75 ohm 3G-SDI performance. Simple bayonet coupling allows fast connection and disconnection. Gold plated body and copper alloy contacts ensure durable conductivity. Compatible with BELDEN 1855A and similar cables for professional use.
Operates at frequencies up to 6 GHz across -65°C to 125°C. Crimp termination provides secure and consistent cable attachment. Ideal for industrial and broadcast audio-video applications. Supports professional instrumentation, telecom, and security systems.
Explore the Electronics Components category at EnvMart for more high-performance Coaxial Connectors and cables from leading brands like Samtec.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 75 Ω impedance, making it ideal for 3G-SDI performance.
It supports an operating frequency of up to 6 GHz, suitable for demanding instrumentation and broadcast applications.
It is designed specifically for use with BELDEN 1855A cable and is also compatible with RG6 and Belden 1694A cables.
The connector operates reliably between -65°C and 125°C, suitable for varied industrial and outdoor conditions.
It features a crimp termination type, ensuring firm cable attachment and consistent electrical performance.
The connector body is gold plated with copper alloy contacts, providing excellent conductivity and corrosion resistance.
The simple bayonet coupling allows for quick and secure connection with a quarter-turn locking mechanism, enhancing reliability.
This model has a straight body orientation, suitable for high-density cable mount applications.
It features a male contact gender, which is typical for BNC connectors.
This connector is part of the HD-BNC series, recognized for delivering true 75 ohm performance.
It is ideal for professional instrumentation, security systems, telecom networks, and broadcast video transmission.
The country of origin for this connector is India.
