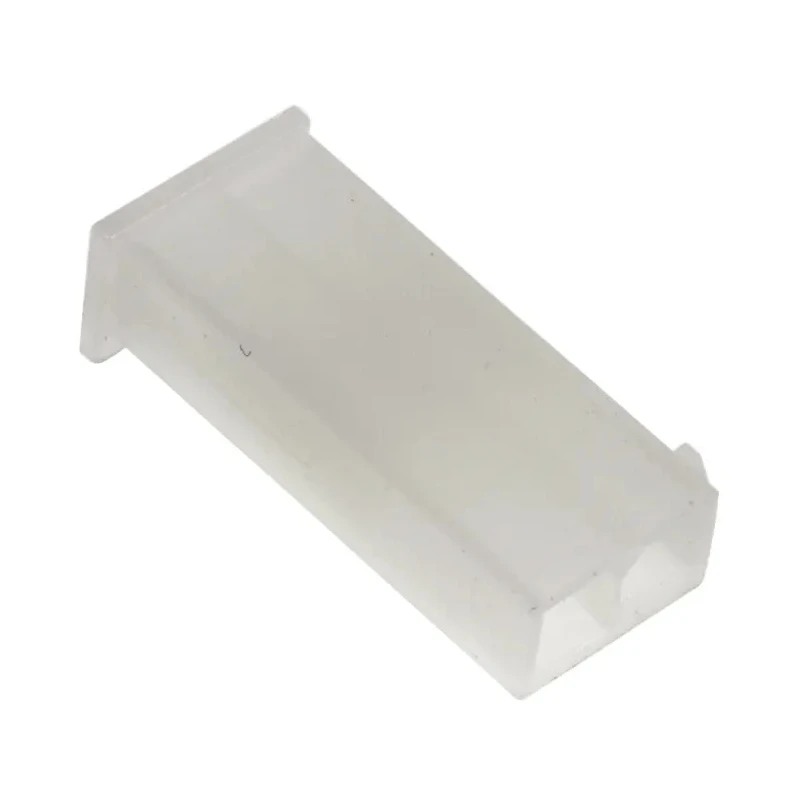

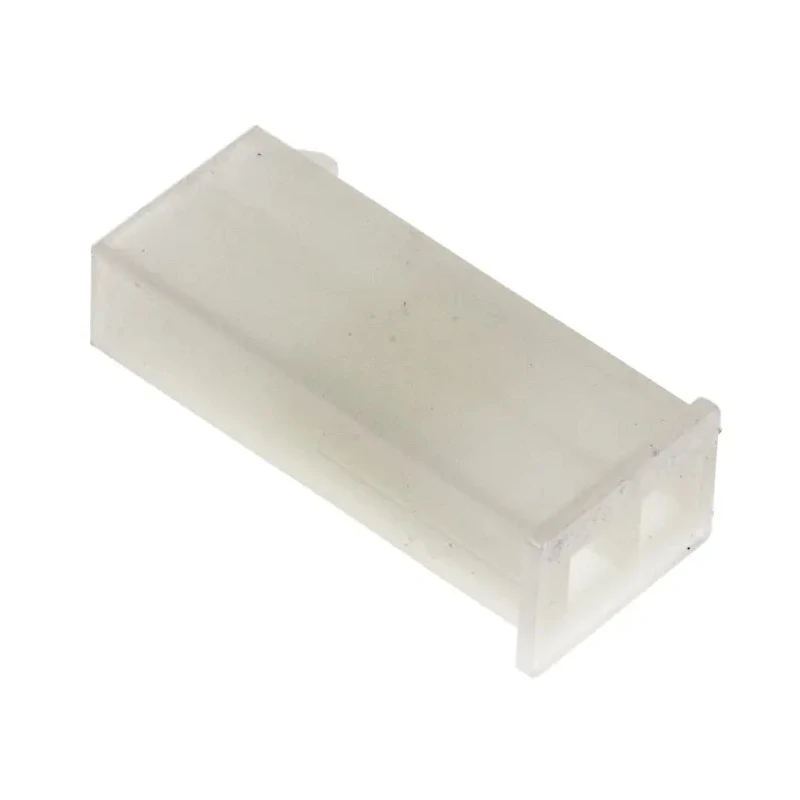

Molex Mini-Fit Jr Male Connector Housing, 4.2 mm Pitch, 2 Contacts, 2 Row Straight Nylon Cable Mount 39-01-3023
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 7.4mm |
| Width | 23.9mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 30490 Mini-Fit Male Grounding Crimp Terminals, 46012 Mini-Fit Plus Crimp Terminals, 5558 Mini-Fit Jr. Male Crimp Terminals |
| Number of Contacts | 2 |
| Connector Gender | Male |
Key Features
- Constructed from impact-resistant nylon for durability in harsh environments.
- Supports up to 13A current per circuit, suitable for high-current applications.
- Features positive locking mechanism with audible click for secure mating.
- Includes polarisation and keying to prevent mismating and misalignment.
- Wide operating temperature range from -40°C to +105°C for demanding conditions.
- Compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals.
- Lightweight design at approximately 0.857 grams reduces strain on PCB headers.
- Ideal for applications in factory automation, automotive industries, and desktop computers.
Product Description
Molex 39-01-3023 Mini-Fit Jr Male Connector Housing is a 2-contact, 2-row straight male connector housing with a 4.2 mm pitch designed for cable mounting. Manufactured from robust nylon material, this connector housing ensures excellent durability and impact resistance for use in demanding industrial and electronic applications. It is engineered to carry up to 13 amps per circuit, making it suitable for high-current electronic interfaces while providing insulation to protect against electric shock.
The connector features a positive locking mechanism with an audible click to confirm secure mating, enhancing reliability in environments subject to vibration or shock. Polarisation and keying features are integrated to prevent mismating and to ensure correct assembly, improving overall safety and performance. Its operating temperature range from -40°C to +105°C allows usage in a variety of tough environmental conditions.
This connector housing is compatible with Mini-Fit and Mini-Fit Plus crimp terminals, facilitating flexible design adaptations. The lightweight receptacle housing (about 0.857 grams) minimizes mechanical strain on PCB headers, making installation easier and longer-lasting.
Applications of this Molex Mini-Fit Jr housing include factory automation systems, automotive electronics, and desktop computing hardware, where secure, durable, and high-current connection solutions are essential.
Constructed from impact-resistant nylon ensuring product longevity. Rated for up to 13A current per circuit to support high power requirements. Incorporates polarisation and keying to eliminate mismating risks. Positive locking mechanism with audible click ensures reliable connection.
Wide temperature tolerance between -40°C and +105°C for diverse environments. Lightweight design at 0.857 grams reduces mechanical load on PCBs. Compatible with Mini-Fit and Mini-Fit Plus crimp terminals for flexible applications.
Suitable for industrial automation, automotive, and computer applications.
Explore our broad range of electronic Connector Housings and components at EnvMart for dependable and precise electrical interconnections tailored to your manufacturing and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports up to 13A current per circuit, making it suitable for high-current applications.
It has a wide operating temperature range from -40°C to +105°C, allowing usage in various demanding conditions.
The housing is constructed from impact-resistant nylon, ensuring durability and resistance in harsh environments.
The connector features a positive locking mechanism with an audible click, confirming secure mating and enhancing reliability in vibration-prone environments.
It is compatible with Mini-Fit and Mini-Fit Plus crimp terminals, including 30490 Mini-Fit Male Grounding Crimp Terminals and 46012 Mini-Fit Plus Crimp Terminals.
The housing measures 7.4mm in length and 23.9mm in width, making it compact for various applications.
This model features 2 contacts arranged in 2 rows, designed for effective electrical connections.
The orientation of this connector housing is straight, suitable for cable mounting.
It is ideal for applications in factory automation, automotive industries, and desktop computers, where secure and high-current connections are needed.
The connector includes polarization and keying features to prevent mismating and ensure correct assembly.
The lightweight design of this housing is approximately 0.857 grams, which helps reduce strain on PCB headers.
The country of origin for this connector housing is India.
