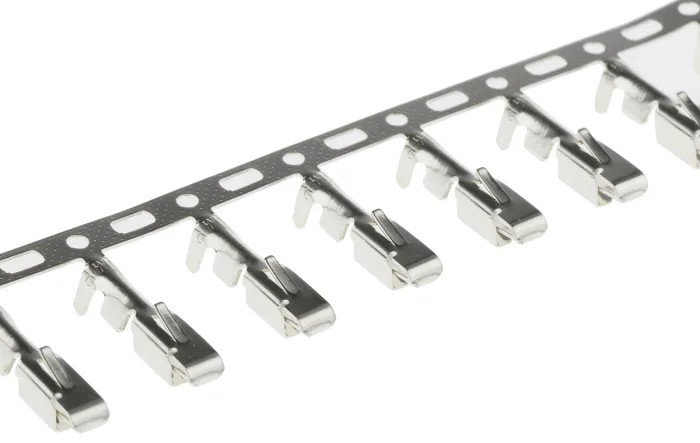

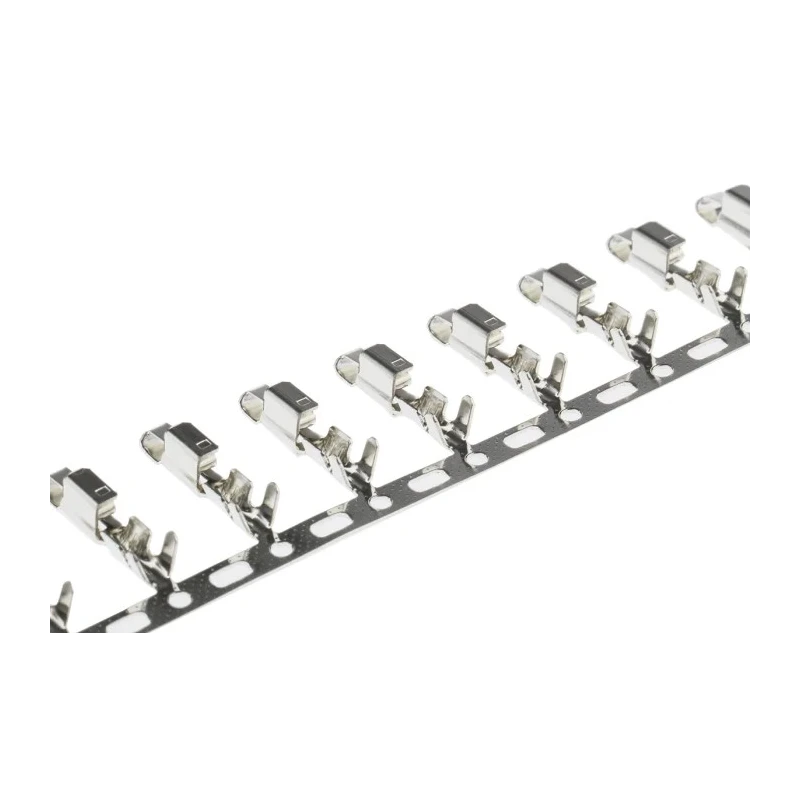

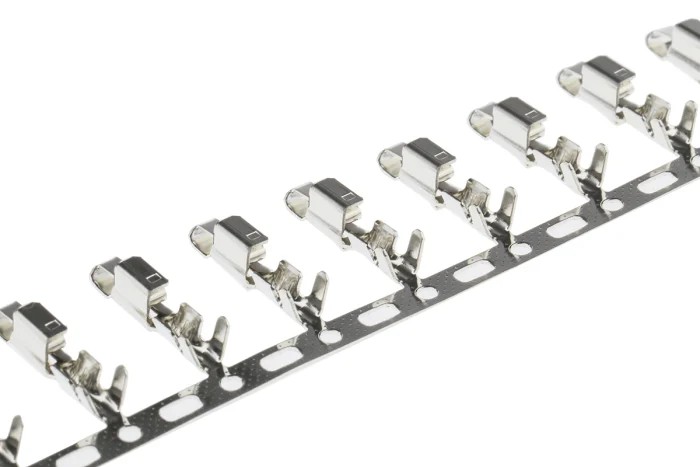

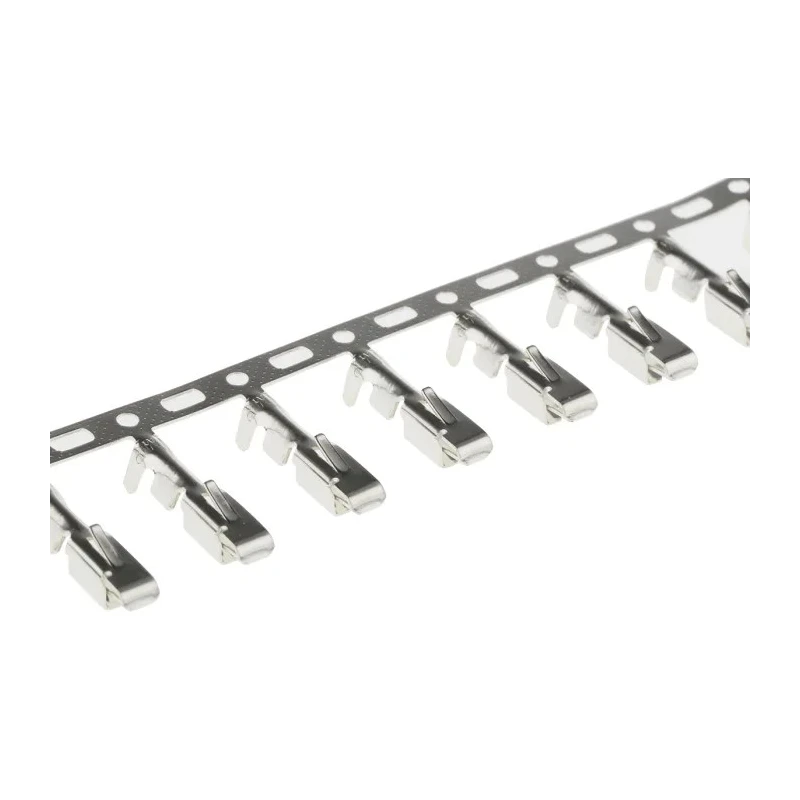

TE Connectivity SL-156 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max 3-770476-1

TE Connectivity 3-770476-1 Female Crimp Terminal from the SL-156 Series is engineered for high-quality electrical and electronic assembly applications. It supports wire sizes from 24 AWG (0.2 mm²) to 18 AWG (0.9 mm²) and is engineered for use with SL-156 connector housings, providing secure and reliable wire terminations.

This crimp terminal features a phosphor bronze contact material with tin plating to offer excellent conductivity and corrosion resistance. Designed for efficient current handling up to 6.5 A, it is well-suited for various industrial, electronic, and telecommunications applications.

The terminal operates reliably in extreme environmental conditions ranging from -55°C up to 105°C, ensuring performance stability across temperature fluctuations. With a compact length of 2.03 mm and a low maximum contact resistance of 3 mΩ, it supports efficient signal transmission with minimal power loss.

The crimp termination style enables secure wire attachment by applying a proper crimping tool, enhancing mechanical robustness and electrical continuity. This product complements TE Connectivity's range of connection solutions for PCB connectors and wire housings.

Although this terminal does not carry specific certifications, it conforms to established industry practices and design standards for reliable electronic connections. It is suitable for industrial automation, telecommunication equipment, automotive electronics, and other electronic manufacturing sectors requiring dependable wire termination solutions.

Compatible with SL-156 connector housing for secure assembly. Handles a current rating of 6.5 amperes for efficient performance. Constructed from phosphor bronze with tin plating to ensure durability and corrosion resistance.

Supports wire sizes from 0.2 mm² (24 AWG) to 0.9 mm² (18 AWG) for versatile use. Crimp termination type enables strong and reliable wire connections. Operates within a broad temperature range from -55°C to 105°C for diverse environments.

Compact size with a length of 2.03 mm for dense connector layouts. Maximum contact resistance of 3 milliohms ensures minimal signal loss. Designed for industrial, electronic, telecommunications, and automotive applications.
