Molex 5556 Series Female Crimp Terminal 9A Current, 28 to 22 AWG Wire Size, Brass Contact, Tin Plating 39-00-0047

Free Delivery in India | Lowest Global Shipping Charges

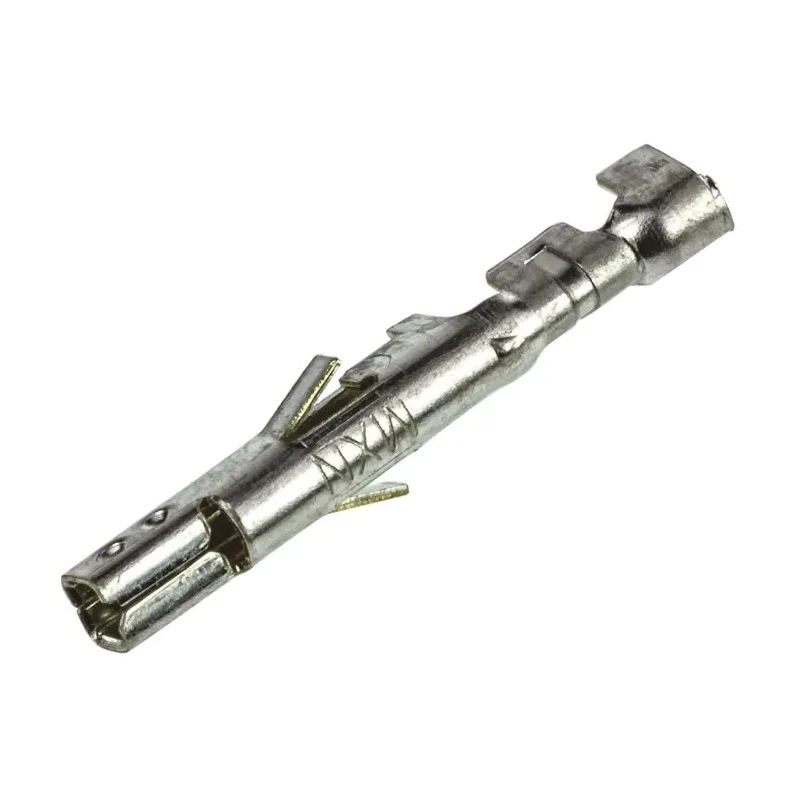

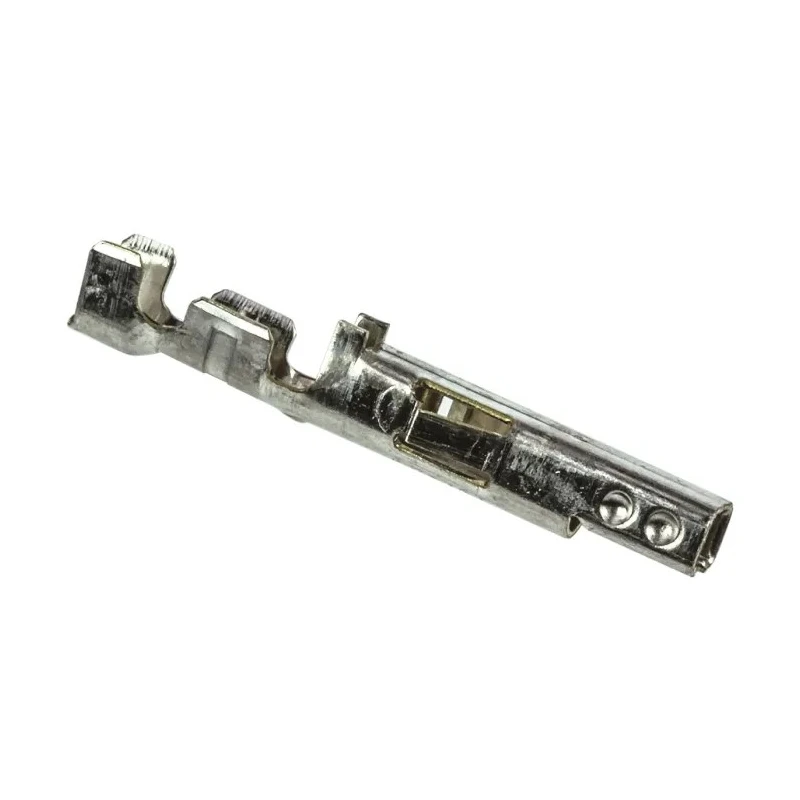

Molex 5556 Series Female Crimp Terminal 9A Current, 28 to 22 AWG Wire Size, Brass Contact, Tin Plating 39-00-0047

Name: Molex 5556 Series Female Crimp Terminal 9A Current, 28 to 22 AWG Wire Size, Brass Contact, Tin Plating 39-00-0047
Brand: Molex
SKU: 126076
Price: 0.08 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	9A
Gender	Female
Contact Material	Brass
Series	5556
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Supports wire sizes from 28 AWG to 22 AWG for flexible applications.
Made from brass contact material with tin plating to resist corrosion.
Rated for a maximum continuous current of 9 amps to handle moderate electrical loads.
Operates reliably in temperatures ranging from -40°C to 105°C.
Features locking tangs to secure the terminal firmly in connector housings.
Crimp termination method provides strong cable-to-connector bonding without soldering.
Low halogen design improves fire safety by limiting toxic fume emissions.
Suitable for use in automotive, telecommunications, and security system applications.

Product Description

Molex 39-00-0047 female crimp terminal, part of the 5556 series, offers a reliable and durable connection solution for Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Designed for wires sized from 28 AWG (0.08mm²) to 22 AWG (0.35mm²), this terminal ensures secure electrical connectivity rated for 9 amps of current.

The terminal features a brass contact material finished with tin plating, providing excellent resistance to corrosion in damp or challenging environments. Its crimp termination style allows for quick and efficient installation without the need for soldering, reducing labor time and potential failure points.

Engineered to perform in harsh conditions, the terminal reliably operates within a wide temperature range from -40°C to 105°C. Locking tangs increase retention strength by firmly securing the terminal inside the connector housing, preventing disconnection even under vibration and stress.

Designed with low halogen materials, the terminal enhances fire safety by minimizing the emission of harmful toxic fumes during combustion. This makes it suitable for automotive, telecommunications systems, and security equipment that demand high reliability and safety standards.

Molex's Mini-Fit Crimp Contacts feature multiple points of contact per terminal, enabling enhanced electrical connection stability and higher current carrying capability. This specific model number 39-00-0047 is an essential component for precision electrical assemblies requiring robust and secure PCB wire terminations.

Supports 28 to 22 AWG wire sizes for broad application flexibility. Brass contact with tin plating ensures corrosion resistance. Rated current of 9 amps suitable for moderate loads. Operating temperature range from -40°C to 105°C for harsh conditions.

Crimp termination reduces installation complexity and error. Locking tangs secure terminal against vibration and dislodgement. Low halogen materials provide increased fire safety. Applications include automotive, telecom, and security systems.

EnvMart offers this Molex connector terminal as a high-quality solution for electronics assembly, industrial automation, and communication equipment manufacturers. For additional components and compatible connectors, browse EnvMart Power Connectors and Crimp Contact categories.
