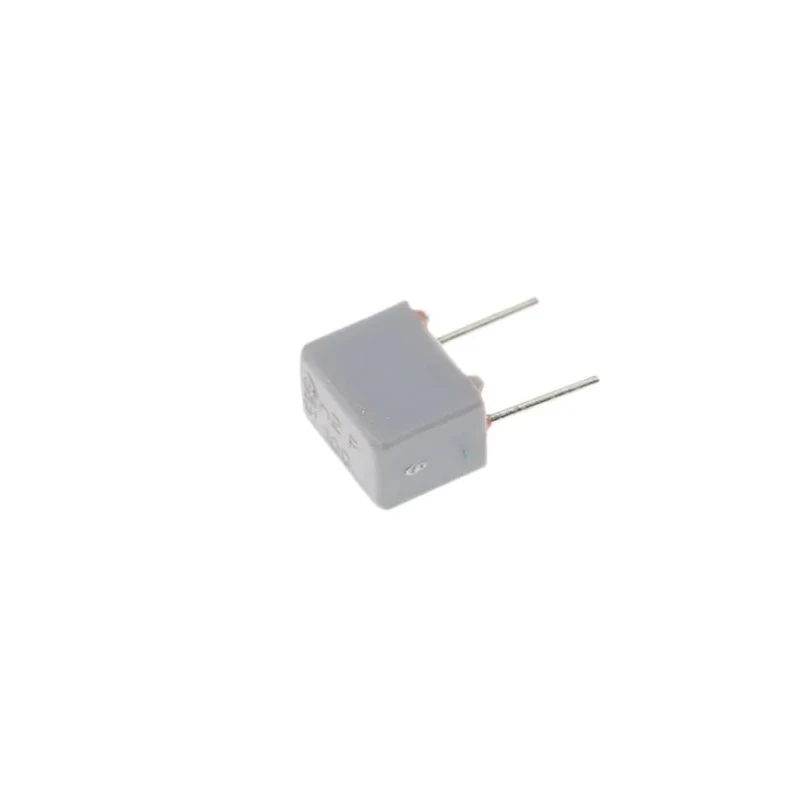

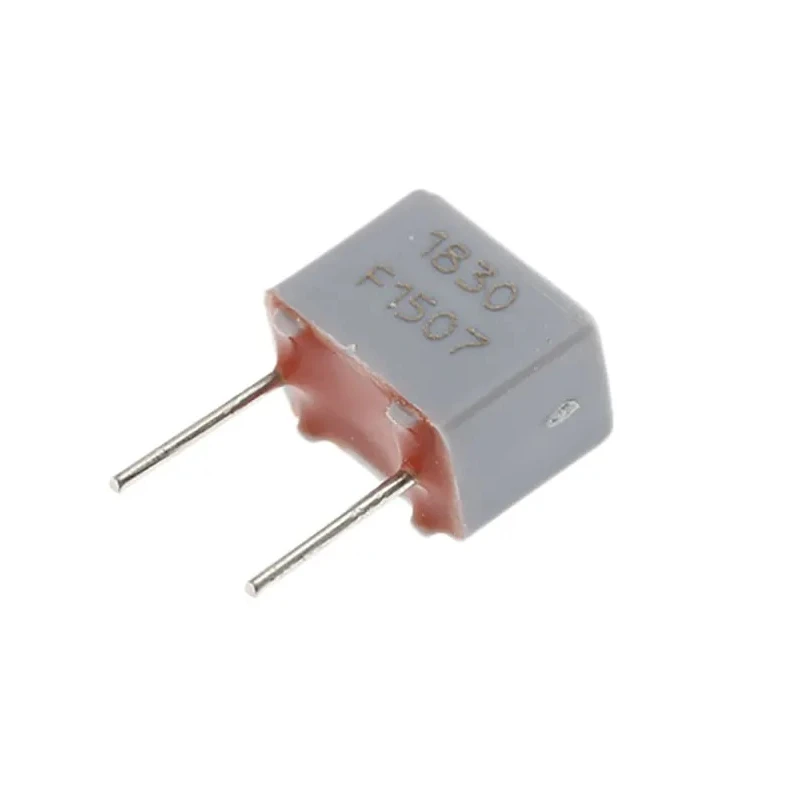

Vishay KP 1830 Film Capacitor, ±1 % Tolerance, 2.2 nF Capacitance, 630 V DC, 40 V AC, Through Hole KP1830222631
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7mm |
| Length | 7.2mm |
| Model | KP1830222631 |
| Packaging | Bulk |
| Width | 5.5mm |
| Mount Type | Through Hole |
| Series | KP 1830 |
| Maximum Operating Temperature | 100°C |
| Tolerance | ±1 % |
| Capacitance | 2.2nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Lead Length | 6mm |
| Standards/Approvals | IEC 60384-13 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 40V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 5mm |
| Lead Diameter | 0.5mm |
| Applications include | oscillators for LC/RC circuits and filters, high frequency coupling and decoupling for analogue and digital circuits |
| WIMA FKP2 Film Capacitor, ±5 %, 2.2 nF 100 V dc 63V ac, Through HoleBrand | WIMA |
Key Features
- Capacitance of 2.2 nanofarads with a tolerance of ±1 percent.
- Rated for 630 volts direct current and 40 volts alternating current.
- Encapsulated in a flame retardant plastic case conforming to UL 94 V-0 standards.
- Through hole mount type with 5 mm lead pitch and 6 mm lead length.
- Operating temperature range from -55°C to 100°C.
- Complies with IEC 60384-13 and approvals including CECC 31 801 and DIN 41 380 part 4.
- Terminal type designed for soldering with 0.5 mm lead diameter.
- Physical dimensions of approximately 7 mm height, 7.2 mm length, and 5.5 mm width.
Product Description
Vishay KP1830222631 Film Capacitor is a high precision film capacitor engineered for reliable performance in electronic applications requiring stable capacitance and voltage handling. This component features a capacitance of 2.2 nF with a narrow tolerance of ±1%, making it ideal for precision oscillator circuits, LC and RC circuits, and filters where signal integrity is critical.
Designed for through hole mounting with a 5 mm lead pitch, the capacitor ensures secure and stable PCB integration. Its encapsulation in a flame retardant plastic case that complies with UL 94 V-0 standards provides enhanced safety and durability under demanding environmental conditions.
Rated to withstand 630 V DC and 40 V AC, this film capacitor supports a wide range of operating voltages common in analog and digital circuit applications. Operating temperature ranges from -55°C to 100°C enable stable operation in varied industrial and commercial environments.
The capacitor's physical size includes a height of 7 mm, length of 7.2 mm, and width of 5.5 mm, with leads of 0.5 mm diameter and 6 mm length, facilitating reliable solder connections. It also meets established international standards including IEC 60384-13 and is approved by CECC and DIN standards, assuring quality and consistency.
Common applications include use as an oscillator component, high frequency coupling, and decoupling capacitor in analogue and digital electronics, providing efficient noise reduction and signal filtering.
Capacitance of 2.2 nanofarads with ±1% tolerance. Rated voltage of 630 V DC and 40 V AC for versatile applications. Flame retardant plastic case conforming to UL 94 V-0 for enhanced safety. Through hole mounting with 5 mm lead pitch and solder-type terminals.
Operates reliably from -55°C to 100°C ambient temperatures. Complies with IEC 60384-13 and other international approvals. Compact dimensions suitable for dense PCB layouts. Ideal for high frequency coupling, oscillators, and timing circuits.
This Vishay Film Capacitor is suited for industrial, electronic manufacturing, instrumentation, and communications equipment. Browse EnvMart's range of high-quality electronic components for reliable circuit design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay KP 1830 Film Capacitor has a capacitance value of 2.2 nanofarads (nF).
It is rated for 630 volts direct current (DC) and 40 volts alternating current (AC).
This capacitor has a tolerance of ±1 percent.
The dimensions of this model are approximately 7 mm in height, 7.2 mm in length, and 5.5 mm in width.
It operates reliably within a temperature range of -55°C to 100°C.
This model is designed for through hole mounting with a lead pitch of 5 mm.
It features solder-type terminals with a lead diameter of 0.5 mm and a lead length of 6 mm.
It complies with IEC 60384-13 and has approvals including CECC 31 801 and DIN 41 380 part 4.
Common applications include use in oscillators for LC/RC circuits, high frequency coupling, and decoupling in analogue and digital circuits.
The capacitor is encapsulated in a flame retardant plastic case that conforms to UL 94 V-0 standards.
This model has a pin count of 2.
The country of origin for this capacitor is India.
