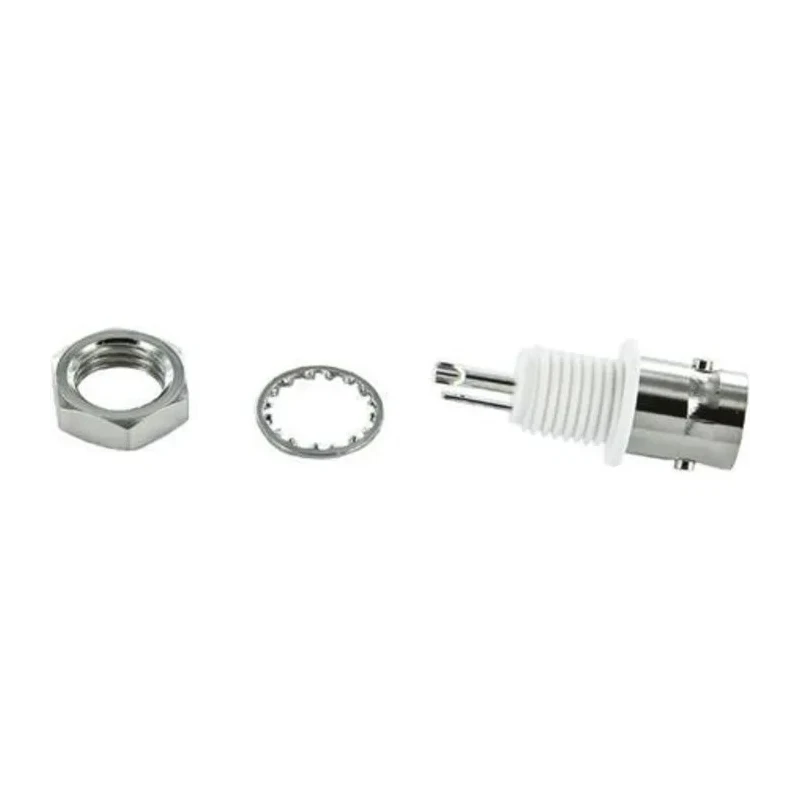

TE Connectivity Greenpar Series 75 Ohm Panel Mount Female BNC Coaxial Connector Straight Body Solder 1-1478201-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 2GHz |
| Contact Material | Brass |
| Series | Greenpar |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Professional grade bulkhead solder jack with ABS dielectric and silver-plated center contact.
- Nickel-plated body construction ensures durability and corrosion resistance.
- Operates at frequencies up to 2 GHz for reliable RF signal transmission.
- Panel cut-out dimensions are 8.9 x 9.6 mm suitable for 1.52 mm panel thickness.
- Operating temperature range from -65°C to 85°C for varied environmental conditions.
- Brass contact material with silver plating ensures excellent conductivity.
- Designed for normal polarity and standard size with bulkhead mount capability.
Product Description
TE Connectivity 1-1478201-0 is a premium Greenpar Series 75 Ohm panel mount coaxial connector engineered for professional RF and electronic applications. This female BNC connector features a straight body design with solder termination, ideal for panel mounting in communication, broadcast, and testing equipment.
The connector incorporates a nickel-plated body that provides robust protection against corrosion and mechanical wear, while the silver-plated brass contact ensures superior electrical conductivity and signal integrity at operating frequencies up to 2 GHz.
Designed for use in industrial, laboratory, communication, and manufacturing environments, this connector performs reliably across a wide temperature range from -65°C to 85°C. The standard panel cut-out size of 8.9 x 9.6 mm accommodates panels with a thickness of 1.52 mm, facilitating versatile installation.
The Greenpar Series ensures consistent quality and durability in coaxial connections, supporting normal polarity and bulkhead mounting configurations. Its ABS dielectric insulates the center contact, maintaining signal isolation and performance.
Professional grade bulkhead solder jack with ABS dielectric and silver-plated contact. Nickel-plated body construction for enhanced durability. Supports operating frequencies up to 2 GHz for RF applications. Panel cut-out dimension: 8.9 x 9.6 mm, fits 1.52 mm panel thickness.
Wide temperature range from -65°C to 85°C. Brass contact material with silver plating for excellent conductivity. Normal polarity design with standard size and bulkhead mounting.
This TE Connectivity Greenpar Series coaxial connector is suitable for demanding electronic and industrial connectivity applications requiring reliable, professional grade performance. For additional technical documents and design resources, TE Connectivity provides extensive support including 3D models and RoHS certification.
Explore more Coaxial Connectors and related electronic components within the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector operates at frequencies up to 2 GHz, ensuring reliable RF signal transmission.
It operates within a temperature range from -65°C to 85°C, making it suitable for various environmental conditions.
The required panel cut-out dimensions for installation are 8.9 x 9.6 mm, accommodating panels with a thickness of 1.52 mm.
The connector features a nickel-plated body for corrosion resistance and a brass contact material with silver plating for excellent conductivity.
This model uses a solder termination type, which is ideal for secure connections in panel mount applications.
The impedance of this connector is 75 Ohm, making it suitable for RF applications.
This connector has a straight body orientation, which is standard for panel mount applications.
Yes, it is designed for normal polarity, ensuring compatibility with standard connections.
The country of origin for this connector is India.
This model is suitable for industrial, laboratory, communication, and manufacturing environments requiring reliable RF connections.
The connector is a female BNC type, designed for use in various RF applications.
The body of this connector is nickel-plated, providing enhanced durability and corrosion resistance.
