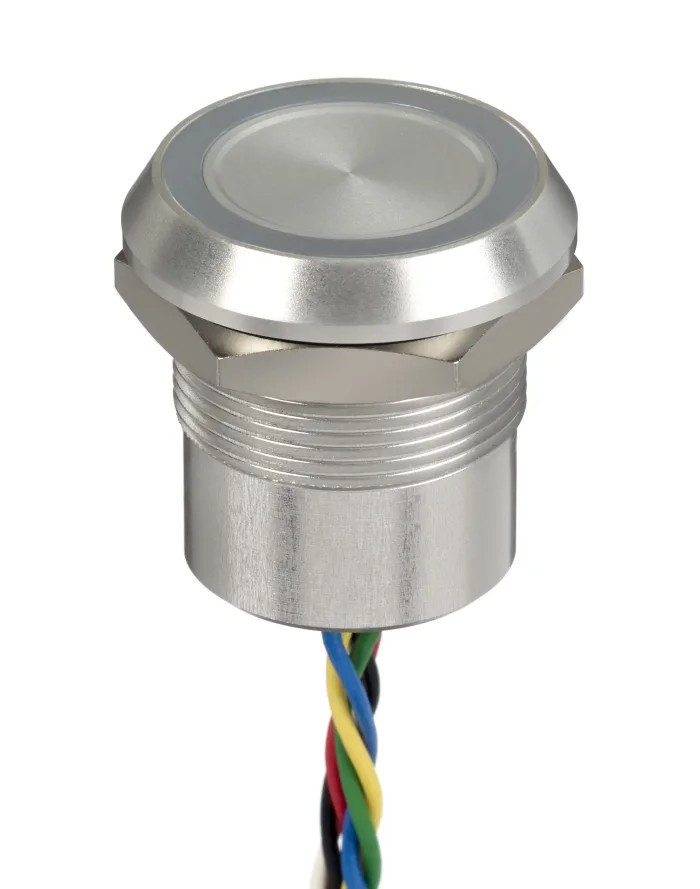

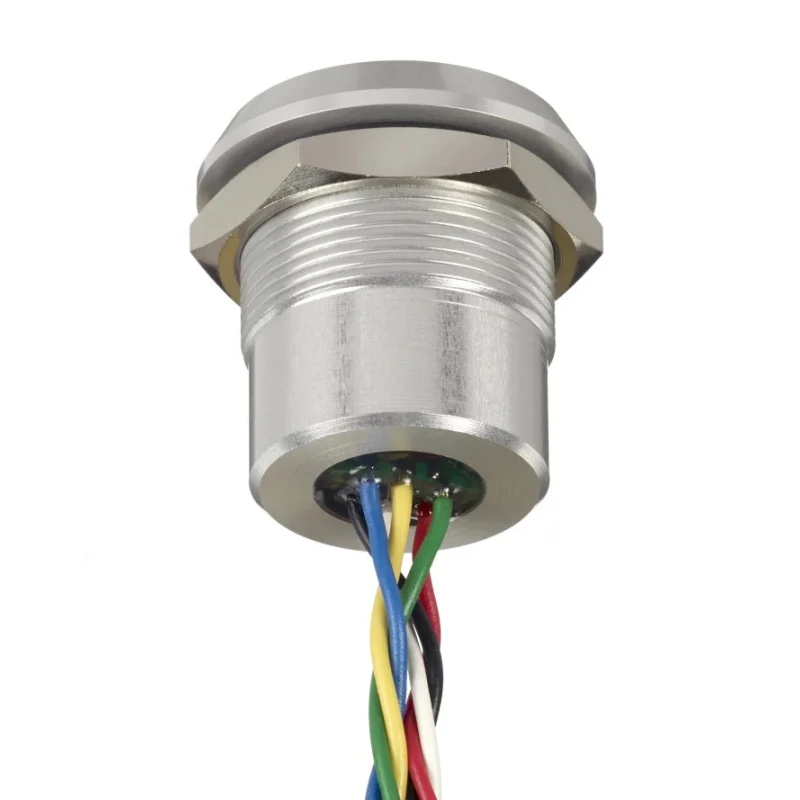

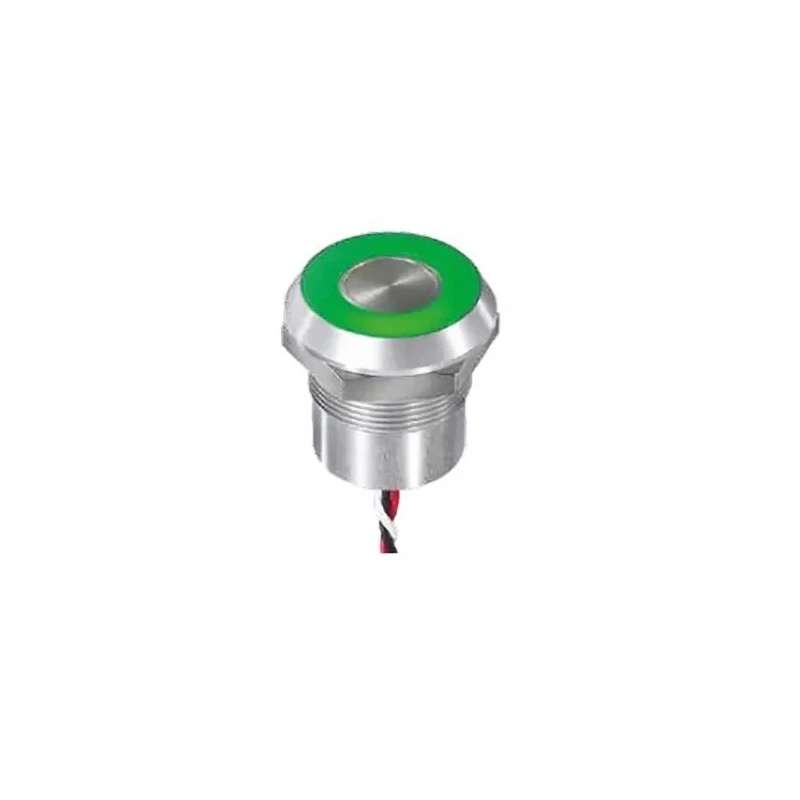

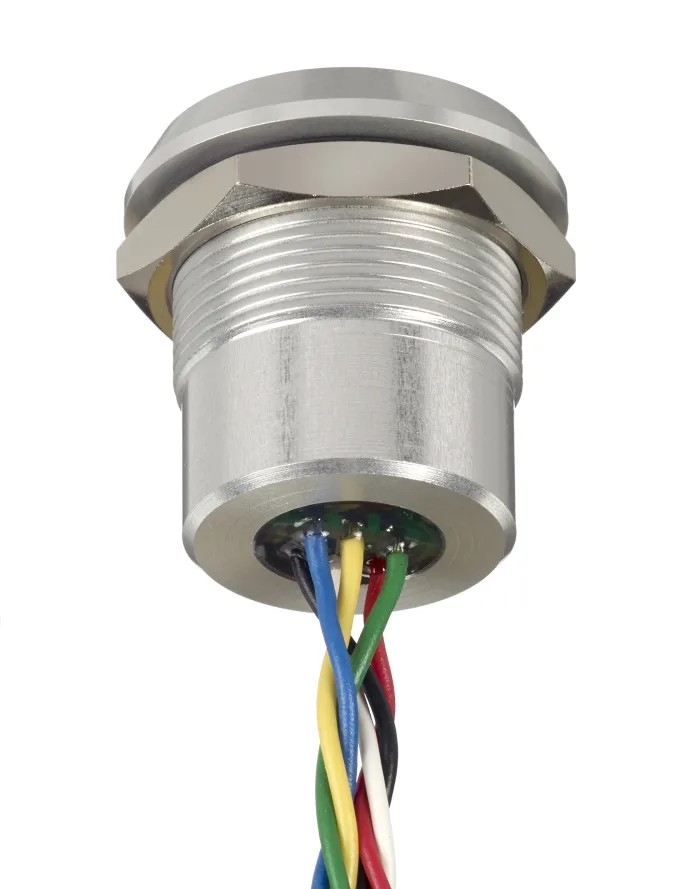

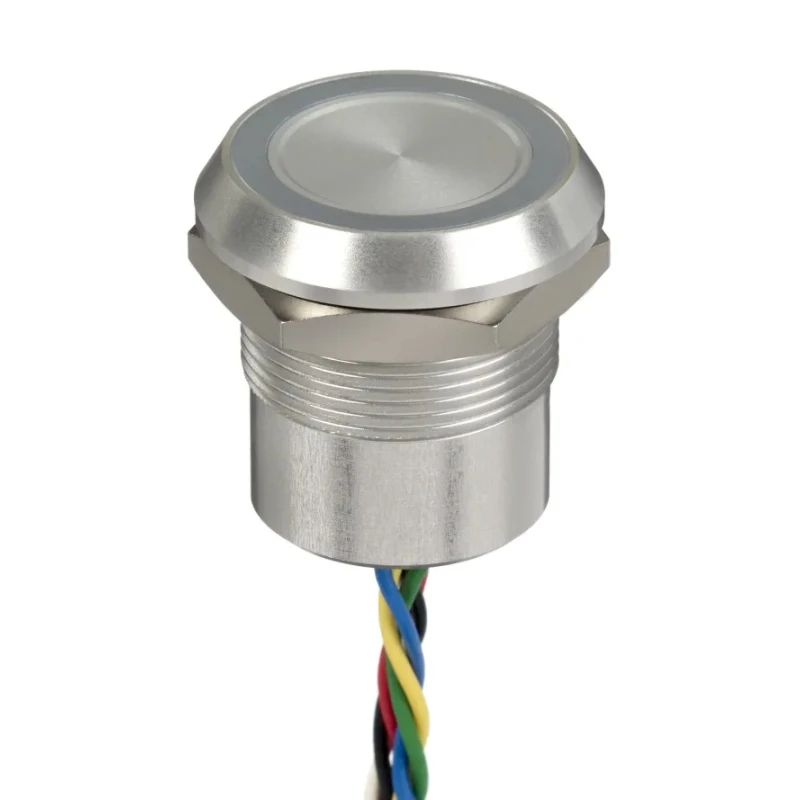

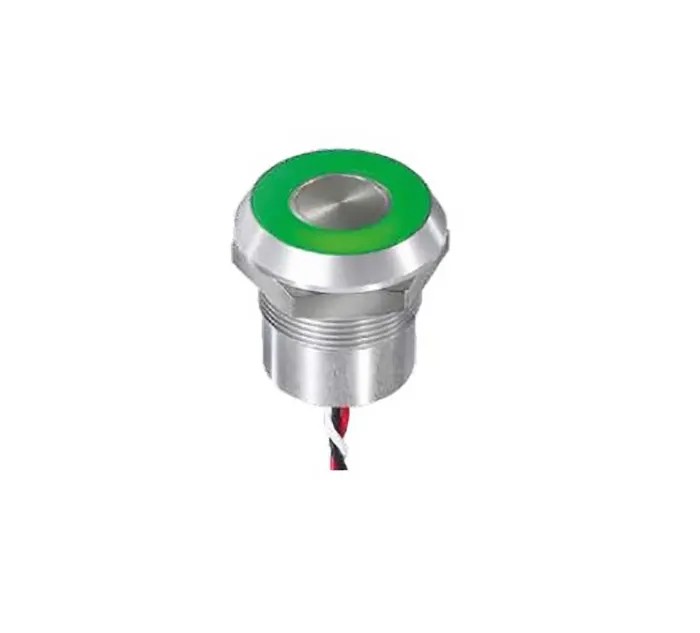

APEM Capacitive Switch Momentary Latching Illuminated Red Green NPN IP68 IP69K CPB3110000DGSS

The APEM CPB3110000DGSS Capacitive Switch is a high-quality switch designed for momentary latching applications. Featuring a robust aluminium anodized housing, this switch is highly resistant to chemicals and contaminants, making it ideal for harsh industrial environments. It includes illuminated red and green LED indicators with NPN output type, providing clear status signals for operators.

Its IP68 and IP69K certification ensures it is dust-tight and protected against high-pressure water jets, suitable for use in outdoor and industrial conditions. The switch operates between a minimum input voltage of 5 V and a maximum of 24 V, with a current rating of 200 mA, making it compatible with a wide range of control systems.

With a life expectancy of 50 million cycles and an IK10 impact resistance rating, the switch is ideal for repetitive uses in self-service kiosks, machinery controls, and automated processes. The touch sensor simplifies user interaction with no operating force required, improving ergonomic efficiency.

Adjustable sensitivity and an auto-calibration feature help maintain reliable and accurate operation across different environments. The switch is suitable for various industrial applications including manufacturing automation, process controls, electrical cabinets, HVAC systems, and machine building.

Certified to meet the EN61000-4-2 standard, the switch provides robust immunity to electrostatic discharge, ensuring reliable, uninterrupted performance. Its compact size with a bushing diameter of 22 mm makes it easy to integrate into existing control panels or custom machinery.

The switch operates with a momentary and latching function suitable for repetitive applications. It features a robust aluminium housing with anodized finish for durability and chemical resistance. Provides IP68 and IP69K ingress protection ensuring resistance to dust, dirt, and water.

The switch includes adjustable sensitivity and auto-calibration for reliable touch activation. Designed to withstand operating temperatures from -20°C to 65°C for versatility in environments. Offers a maximum input voltage of 24 V and a current rating of 200 mA.

Illuminated with independent LED colors (red and green) to indicate switch status clearly. The product complies with EN61000-4-2 standards for electrostatic discharge immunity. It has an expected life of 50 million cycles with no mechanical wear due to the absence of moving parts.
