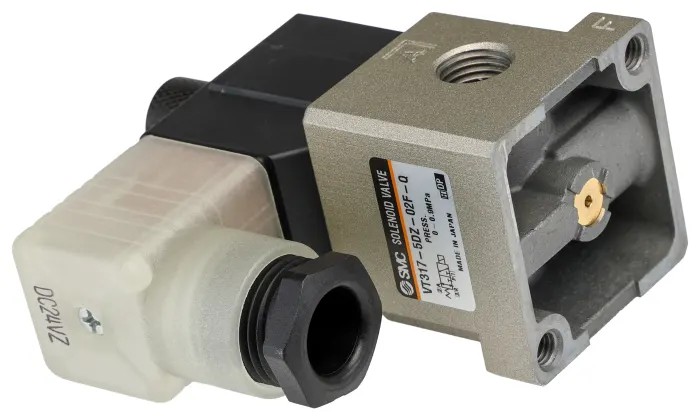

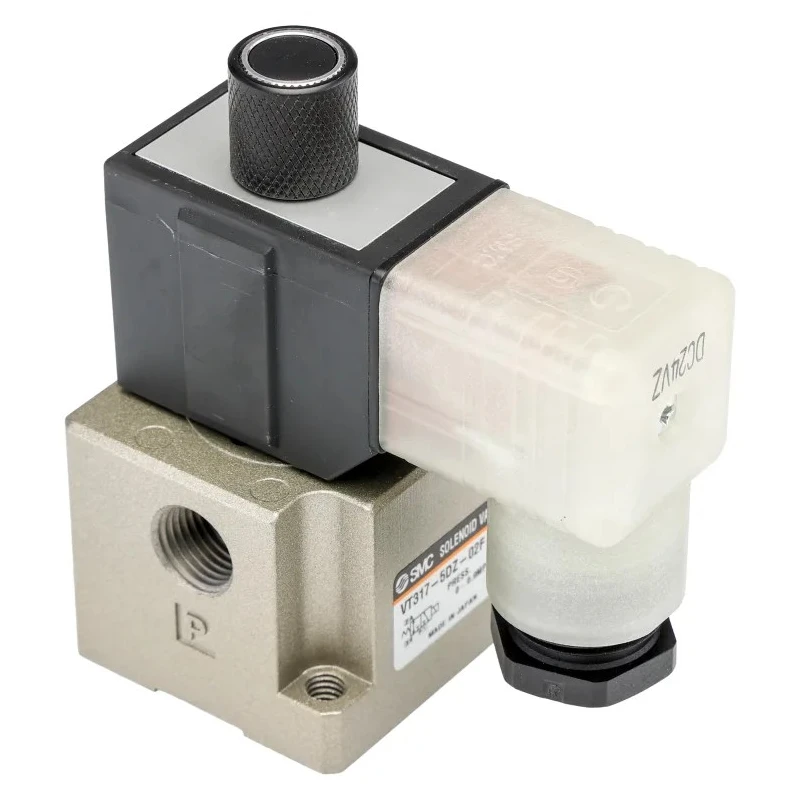

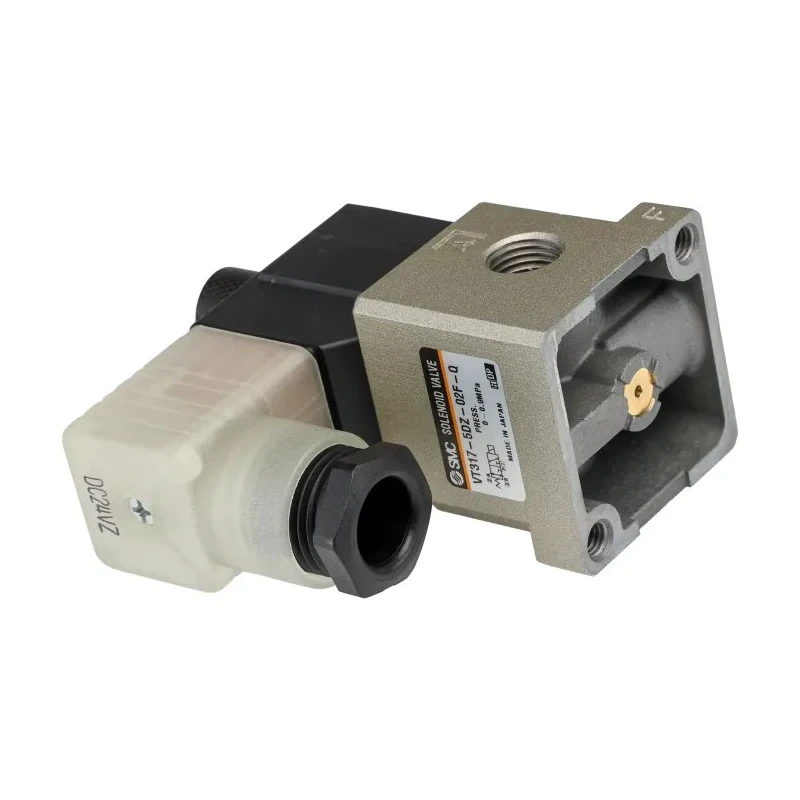

SMC Pneumatic Control Valve 3/2 NC Solenoid G VT317 Series 24V DC 6.3W Power

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Control Valve 3/2 NC Solenoid G VT317 Series 24V DC 6.3W Power



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.9 Mpa
Height	110mm
Length	145mm
Model	VT317
Width	40mm
Mount Type	Stand Alone
Series	VT317
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	1/4 in
Seal Material	Hydrogenated Nitrile Rubber
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	687.05NL/min
Standards/Approvals	RoHS
Connection Thread Standard	G
Mount Pattern	DIN
Minimum Pilot Pressure	0MPa

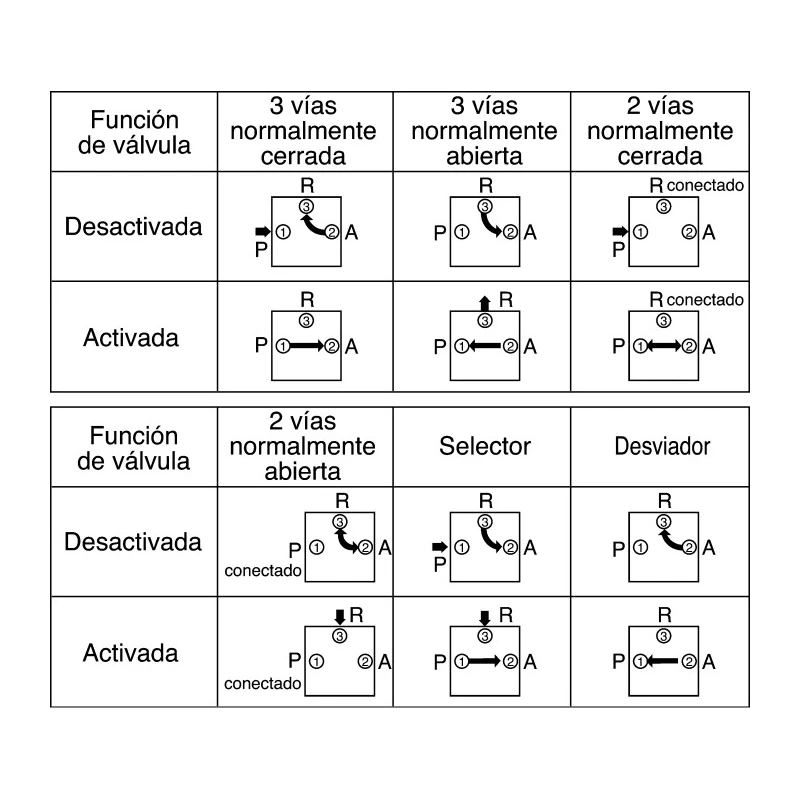

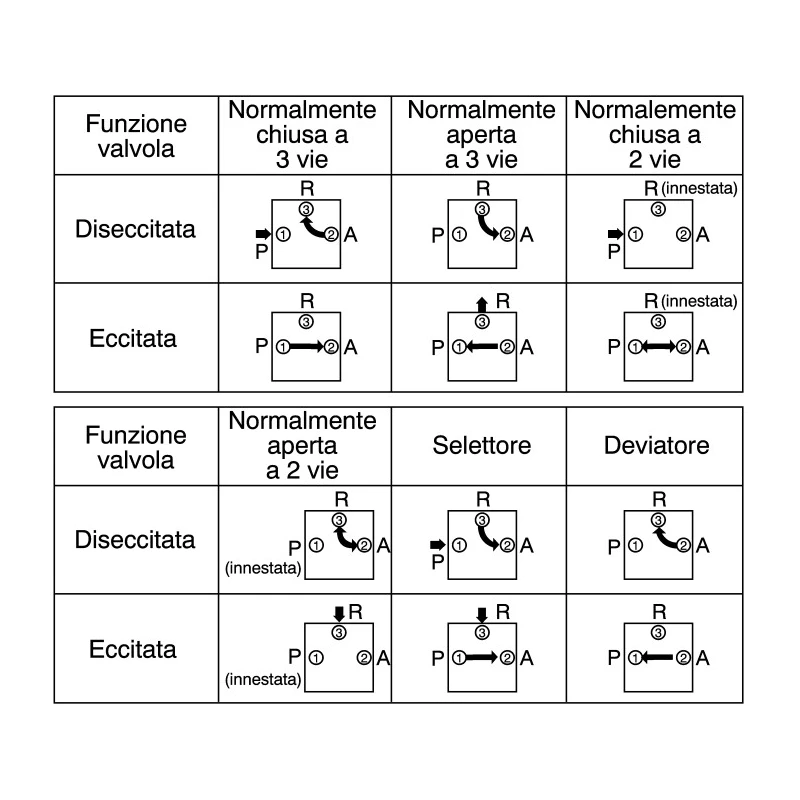

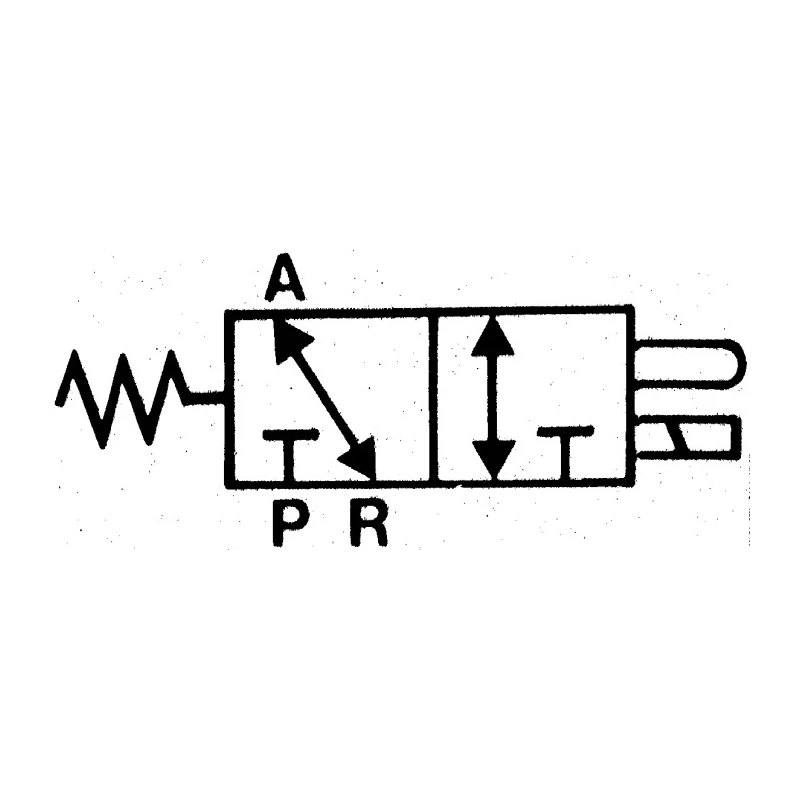

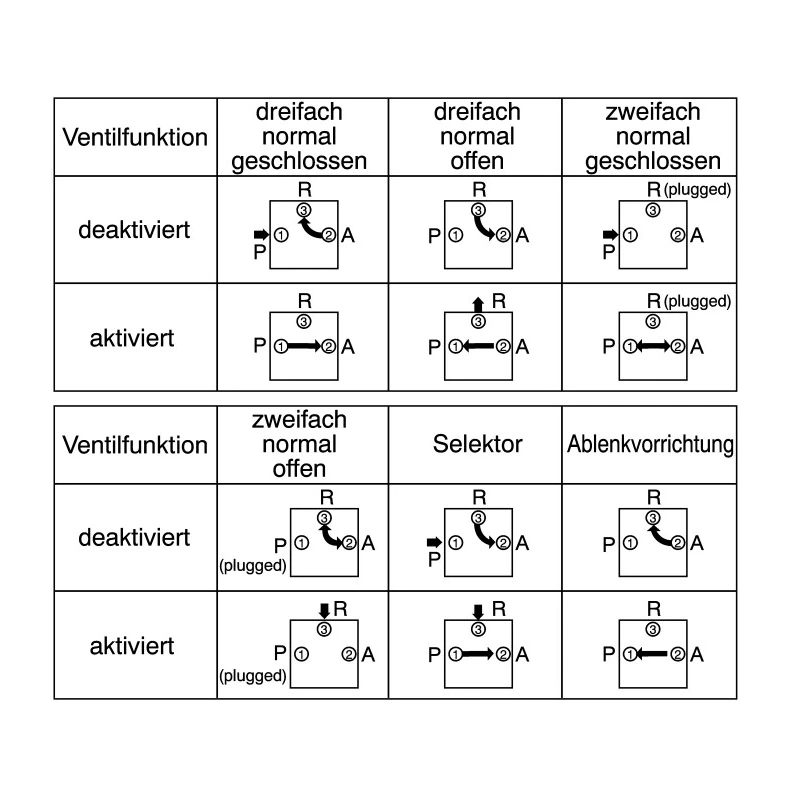

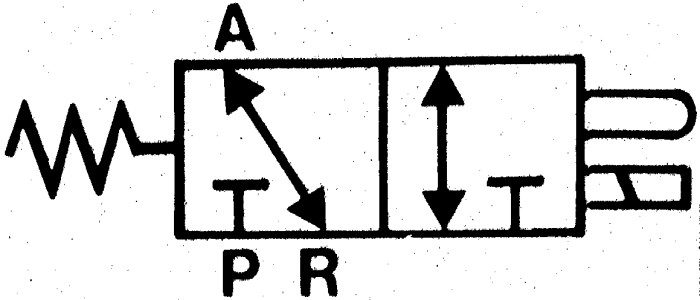

Valve Function	3/2 NC
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Solenoid Power Consumption	6.3W
SMC Pneumatic Solenoid Valve - 3/2 NC Solenoid G VT317 Series 24V dcBrand	SMC

Key Features

Robust die-cast aluminium body for durability and lightweight handling.
Operates at a maximum pressure of 0.9 MPa, suitable for moderate pressure applications.
Maximum flow rate of 687.05 NL/min ensures high performance.
Stand-alone mounting with DIN pattern simplifies installation.
Works effectively in temperature ranges from 0 to 50°C.
Hydrogenated nitrile rubber seals provide enhanced resistance and longevity.

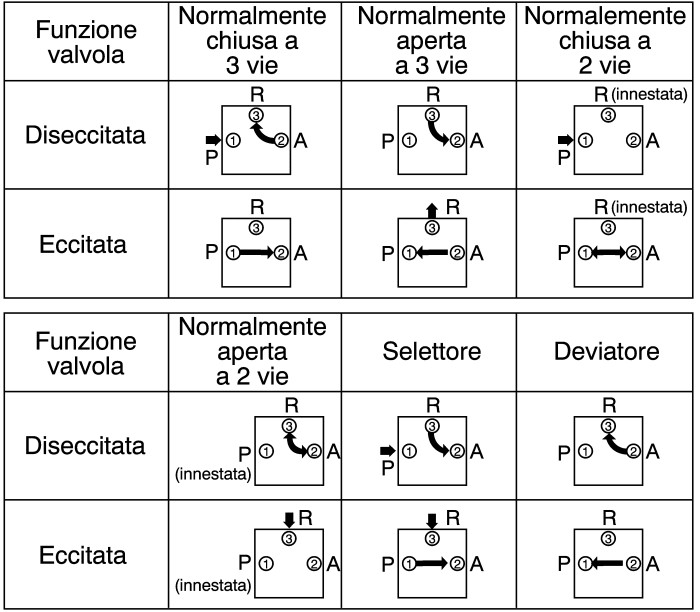

Features a 3/2 NC valve function with two positions for precise control.
Single solenoid actuation with a power consumption of 6.3 W for energy-efficient operation.

Product Description

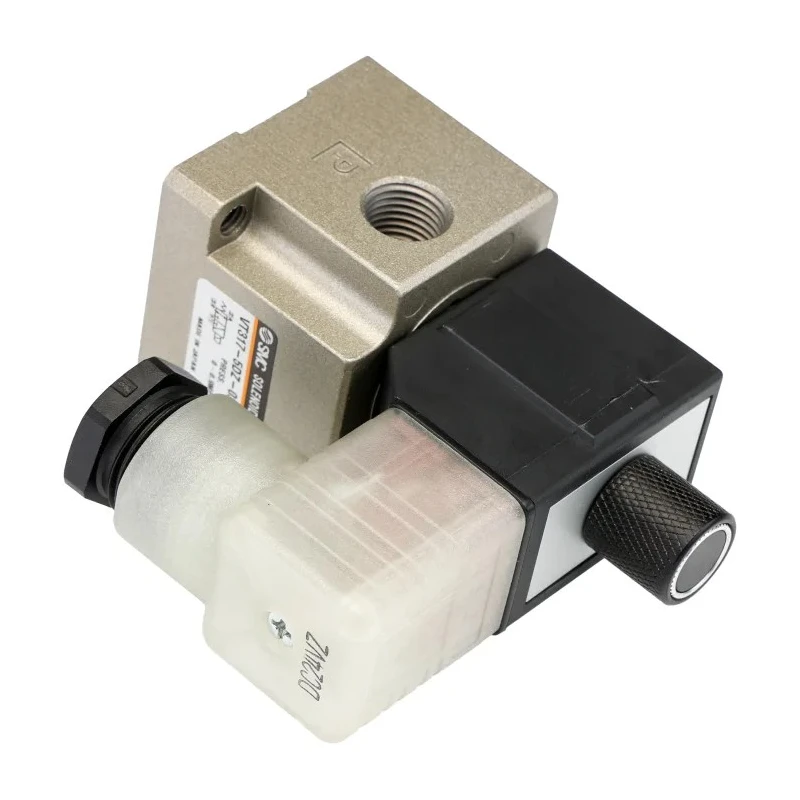

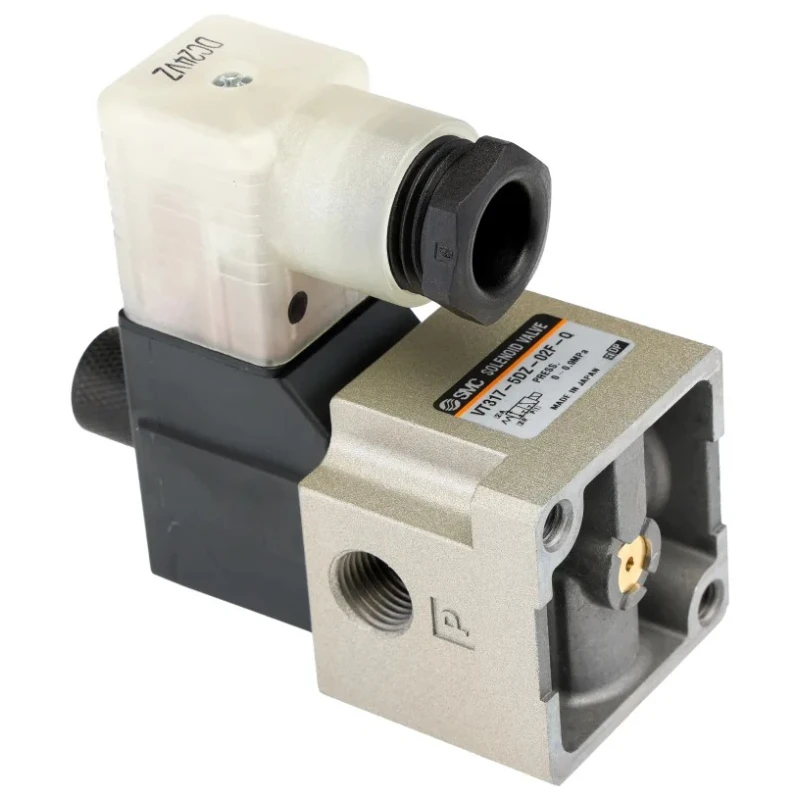

The SMC VT317 Pneumatic Control Valve EVT317-5DZ-02F-Q is engineered for precise and reliable pneumatic control in industrial automation. Featuring a 3/2 normally closed valve configuration actuated by a 24V DC single solenoid, it delivers efficient flow control with a maximum rate of 687.05 NL/min. Its die-cast aluminium body offers robust construction with lightweight characteristics well-suited for demanding environments.

This valve supports a maximum operating pressure of 0.9 MPa and functions flawlessly within an operating temperature range of 0°C to 50°C. The hydrogenated nitrile rubber seals enhance durability and resistance against wear, contributing to extended service life in pneumatic systems.

Mounting is designed for stand-alone installation with a DIN pattern, facilitating easy setup. The single solenoid actuation consumes only 6.3 watts, promoting energy efficiency. The electrical connection is made through a DIN connector, aligning with standard industrial electrical interfaces.

Ideal for applications requiring two-position valve functionality, the VT317 valve is widely applied in controlling pneumatic actuators on assembly lines and machinery demanding quick and precise pneumatic responses. It is suitable for manufacturing, automation, laboratory setups, HVAC controls, and general industrial pneumatic tasks.

Robust die-cast aluminium body for strength and weight efficiency. 3/2 Normally Closed valve function for versatile pneumatic flow control. 24V DC single solenoid actuation consuming 6.3 W power. Maximum operating pressure of 0.9 MPa suitable for diverse applications.

Maximum flow rate of 687.05 NL/min ensuring optimal performance. Operation from 0°C to 50°C for use in typical industrial temperature ranges. Hydrogenated nitrile rubber seals providing enhanced sealing and durability. Stand-alone mounting with DIN pattern for easy installation.

Standardized electrical connection using DIN connector.

This valve embodies the reliability and engineering excellence expected from SMC, making it a dependable choice for pneumatic control in industrial and automation environments. Explore our wide range of pneumatic valves and components at EnvMart for your engineering needs.

Explore more products in our Pneumatic Solenoid Valves category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum flow rate of this model is 687.05 NL/min, ensuring efficient performance in pneumatic applications.

This valve supports a maximum operating pressure of 0.9 MPa and a minimum pilot pressure of 0 MPa, making it suitable for moderate pressure applications.

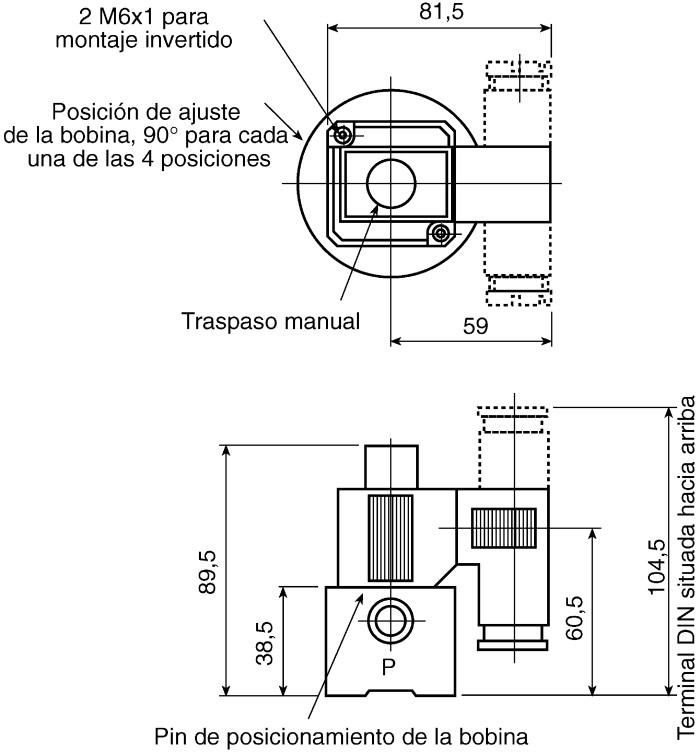

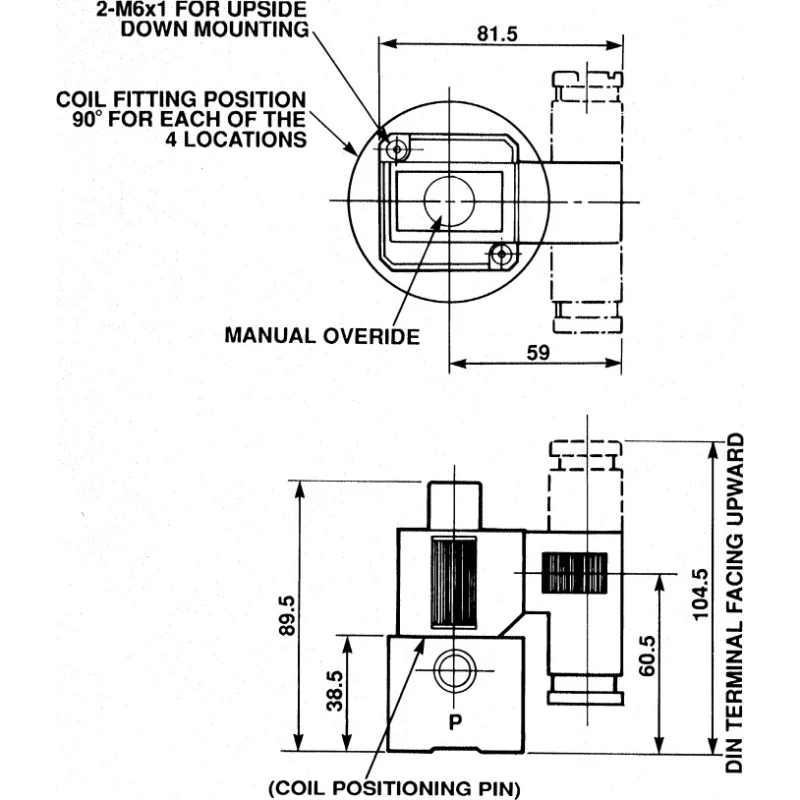

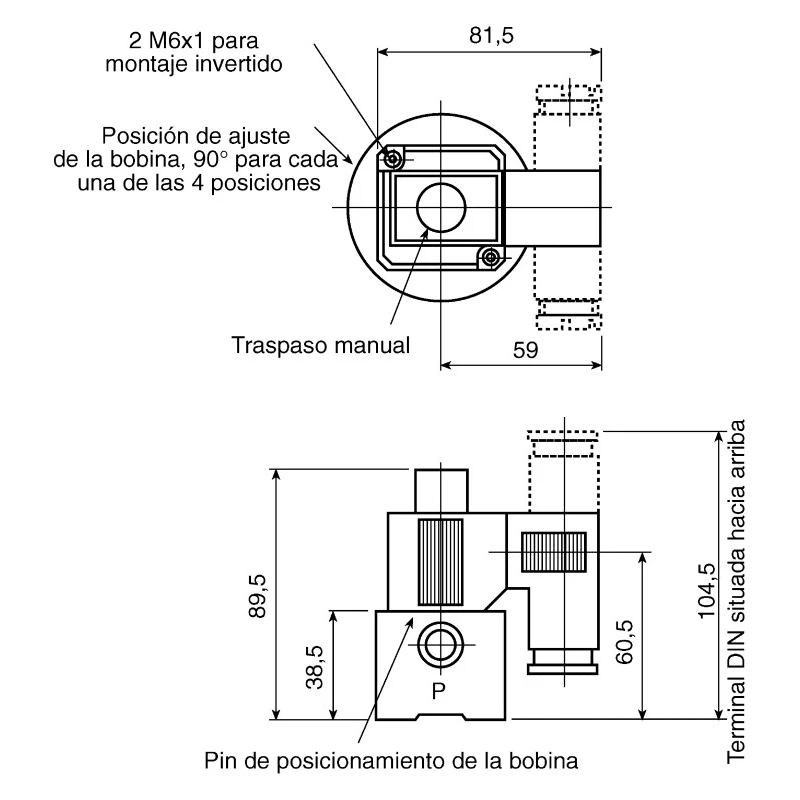

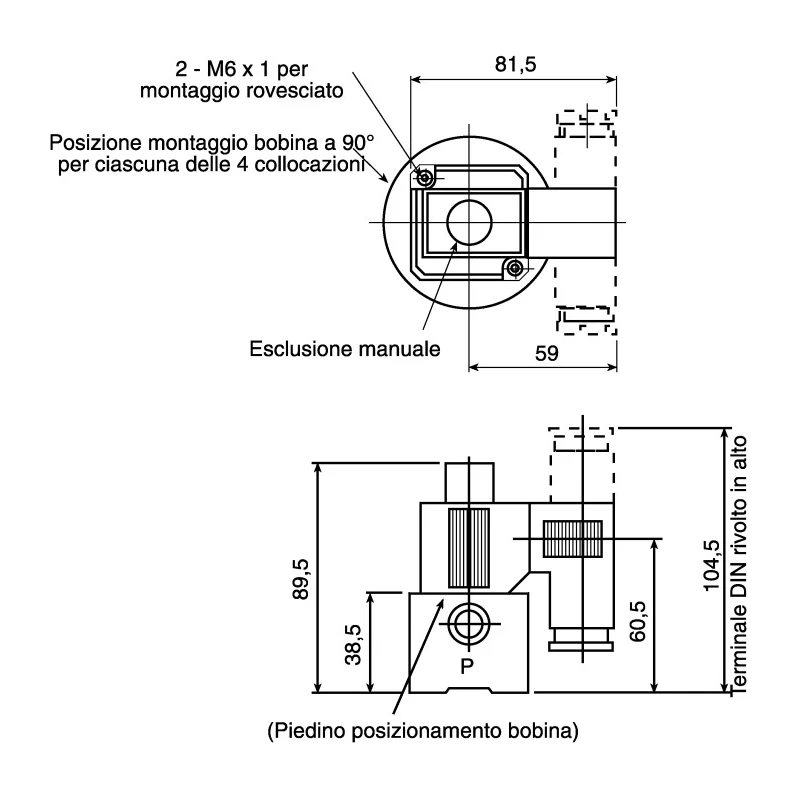

The dimensions of this unit are 145 mm in length, 40 mm in width, and 110 mm in height.

The valve operates at a voltage of 24V DC, making it compatible with standard industrial electrical systems.

The body of the valve is made from die-cast aluminium, and it features hydrogenated nitrile rubber seals for enhanced durability.

It operates effectively within a temperature range of 0°C to 50°C, suitable for typical industrial environments.

This model features single solenoid actuation, which consumes 6.3 watts of power for operation.

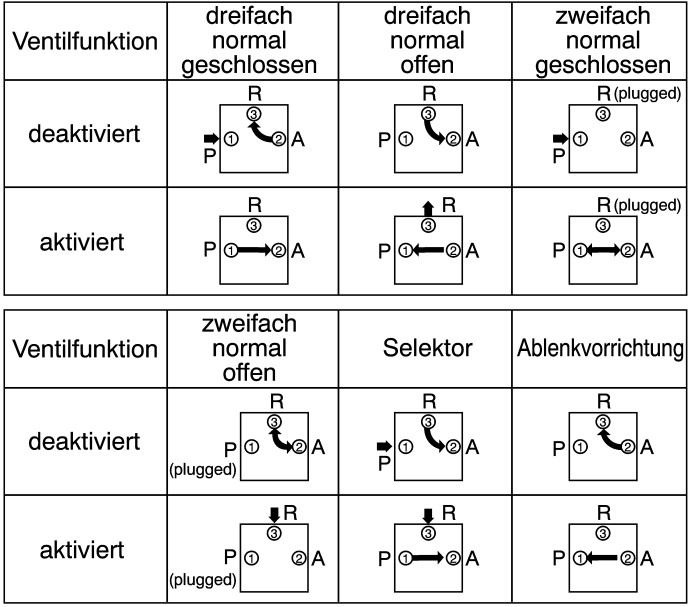

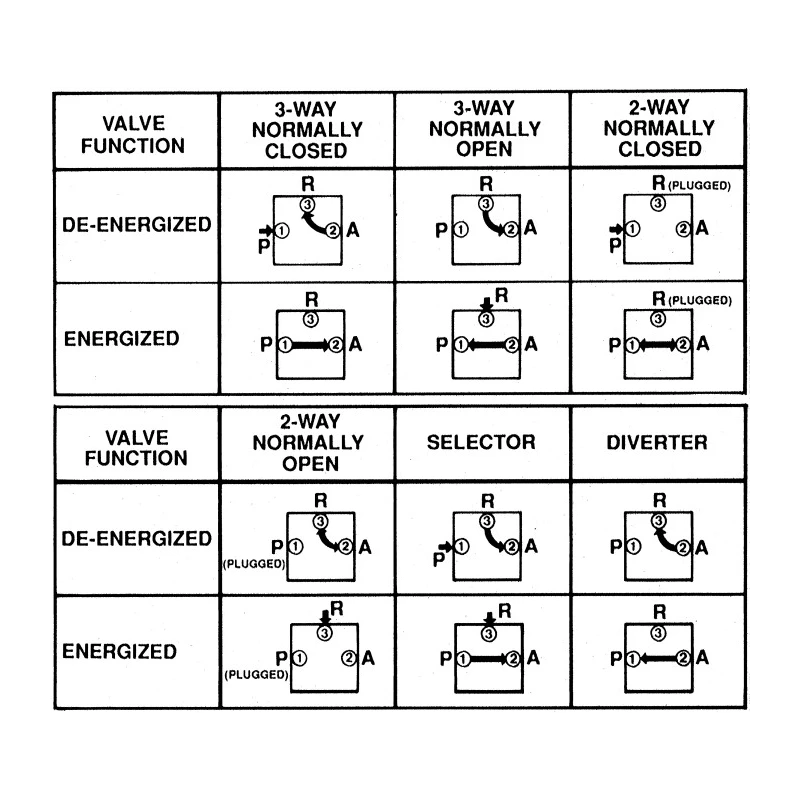

The valve functions as a 3/2 normally closed (NC) valve, providing precise control over pneumatic flow.

It is designed for stand-alone mounting with a DIN pattern, facilitating easy installation.

The electrical connection is made through a DIN connector, which aligns with standard industrial interfaces.

This model is RoHS compliant, ensuring it meets environmental standards for hazardous substances.

It is widely applied in controlling pneumatic actuators in manufacturing, automation, laboratory setups, HVAC controls, and general industrial pneumatic tasks.
