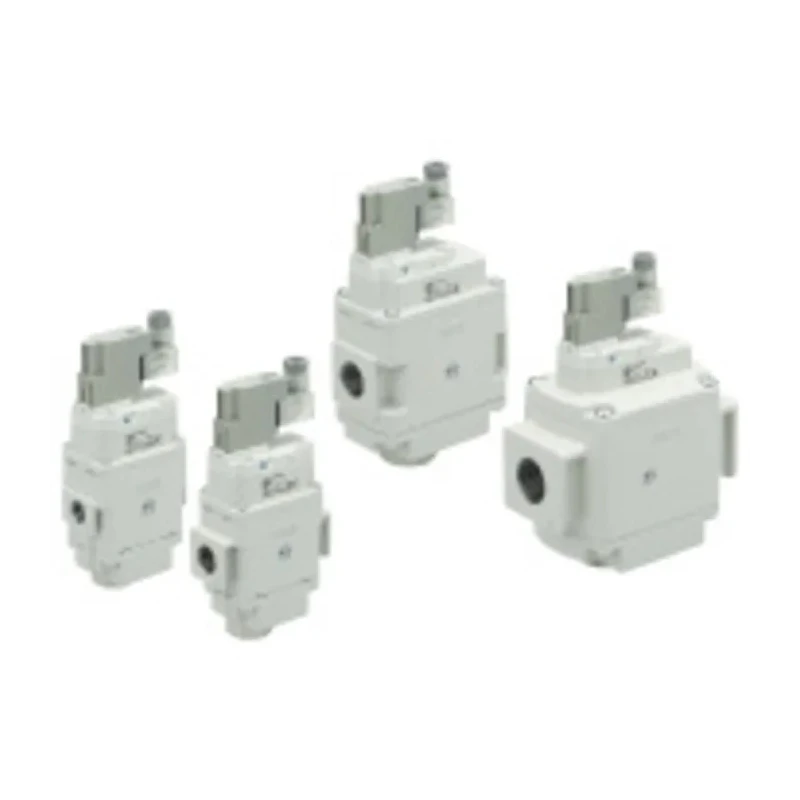

SMC Pneumatic Solenoid Start-Up Valve G Series AV 230V AC, 552 L/min Flow, 1/4 in Port AV2000-F02-4YOB-A

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Start-Up Valve G Series AV 230V AC, 552 L/min Flow, 1/4 in Port AV2000-F02-4YOB-A



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	230V ac
Power Consumption	0.35 W
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	66mm
Length	147.5mm
Model	AV2000-F02-4YOB-A
Width	40mm
Mount Type	Stand Alone
Series	AV
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/4 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Energy Saving	No air flow when the main valve is switched
Actuation Type	Start-Up Valve
Maximum Flow Rate	552L/min
Standards/Approvals	CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.45W
Improved flow rate characteristics	Up to 2.3 times C[dm3/(s·bar)]: 9.2

Key Features

This start-up valve supports low-speed air supply for gradual pressure rise.
Features a 1/4 in threaded port with female G connection standard.
Maximum operating pressure is 1 MPa with a maximum flow rate of 552 L/min.
Constructed with die cast aluminium body and nitrile rubber seals for durability.
Operates efficiently at temperatures between 0°C and 50°C with a power consumption of 0.45W.
Includes a three-position design and DIN electrical connector for easy installation.
Designed to ensure energy savings by cutting off air flow when main valve is switched off.
Compact size with dimensions 147.5mm length, 66mm height, and 40mm width.

Product Description

SMC AV2000-F02-4YOB-A pneumatic solenoid start-up valve is engineered for precise control of low-speed air supply in industrial applications, operating at 230V AC voltage and designed to handle a maximum flow rate of 552 L/min. This valve gently raises initial air system pressure and enables quick exhaust by cutting off air supply efficiently.

The valve features a robust die cast aluminium body with nitrile rubber seals to ensure durability and reliable operation. It includes a 1/4 inch threaded female port with G thread standard, suitable for various pneumatic systems.

Designed for high-performance and energy efficiency, the valve consumes only 0.45W power and provides improved flow rate characteristics, up to 2.3 times higher flow coefficients with excellent adjustability. This ensures minimal energy wastage by discontinuing airflow when the main valve is off.

The compact and lightweight profile dimensions of 147.5mm length, 66mm height, and 40mm width facilitate easy installation and reduce maintenance hours. The three-position setup and DIN electrical connector provide flexibility and reliable connectivity in industrial environments.

This valve is CE certified and ideal for applications in pneumatic systems within industrial, manufacturing, and fluid power environments. Its low pilot pressure requirement (0.2 MPa minimum) and a maximum operating pressure rating of 1 MPa support stable and safe operation.

This valve supports energy saving by preventing air flow when not in use. Low operating temperatures down to 0°C suit various environmental conditions. The integrated silencer reduces noise, enhancing workplace comfort. Compact size enables installation in limited spaces.

Durable materials ensure long service life in demanding applications. Explore more Pneumatic Solenoid Valves from SMC and other industrial valve solutions at EnvMart for reliable and energy-efficient fluid power control systems.
