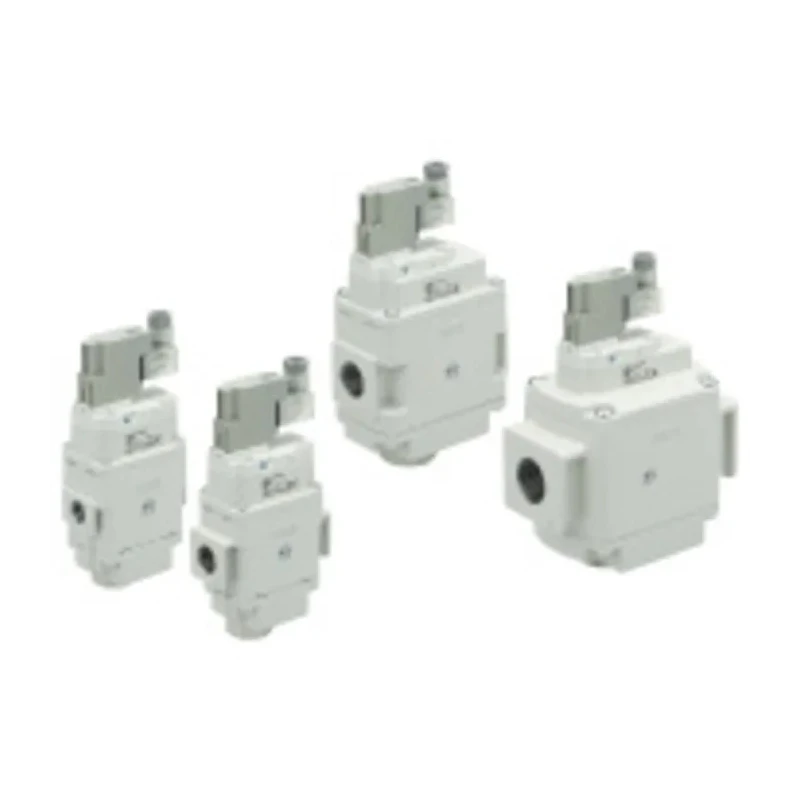

SMC Pneumatic Solenoid Valve Start-Up Valve G AV Series 24V dc 3/8 in Threaded Port AV3000-F03-5YZB-A
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 1 Mpa |
| Height | 76mm |
| Length | 149.5mm |
| Model | AV3000-F03-5YZB-A |
| Width | 40mm |
| Mount Type | Stand Alone |
| Series | AV |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 50°C |
| Port Type | Threaded |
| Number of Positions | 3 |
| Port Size | 3/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | 0°C |
| Actuation Type | Start-Up Valve |
| Maximum Flow Rate | 786L/min |
| Standards/Approvals | CE |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 0.2MPa |
| Electrical Connection Type | DIN Connector |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 0.35W |
Key Features
- Designed for controlling compressed air with a maximum operating pressure of 1 MPa.
- Single solenoid type with three positions and two ports for effective start-up valve functionality.
- Die cast aluminium body with Nitrile Rubber (NBR) seals suitable for temperatures up to 50°C.
- Compact dimensions with 149.5 mm length, 76 mm height, and 40 mm width for space-efficient mounting.
- Integrated DIN connector for 24V dc electrical supply featuring dust-protected ingress protection.
- High maximum flow rate of 786 L/min to enhance system air control response.
- Manual push-lock override and low power consumption at 0.35 W to reduce control energy use.
- Compatible with pneumatic actuators and conveyor systems requiring controlled air ramp-up.
Product Description
SMC AV3000-F03-5YZB-A Pneumatic Solenoid Valve Start-Up Valve G AV Series is engineered to deliver reliable control of compressed air in industrial automation and pneumatic systems. Operating at 24V dc with a single solenoid design, this valve supports soft-start functionality to ensure smooth ramp-up of pneumatic actuators and conveyor systems.
With a compact die cast aluminium body and Nitrile Rubber seals, it withstands operating temperatures up to 50°C and pressure ranges from 0.2 MPa to 1 MPa. The valve features a threaded G3/8 port size for easy integration into existing pipework. Its DIN electrical connection with IP65 dust protection ensures durability in harsh industrial environments.
The AV3000-F03-5YZB-A provides a maximum flow rate of 786 L/min, improving system responsiveness while maintaining low solenoid power consumption of 0.35 W. The valve includes a manual push-lock override for operational flexibility and an integrated silencer to minimize noise during operation.
Controls compressed air with maximum operating pressure of 1 MPa and pilot pressure range 0.2 to 1 MPa. Single solenoid, three-position valve with two ports for precise start-up air control. Robust die cast aluminium body and NBR seals provide chemical resistance and temperature durability.
Compact design (149.5mm x 40mm x 76mm) allows stand-alone mounting even in limited space. Low electrical consumption (0.35W) reduces energy usage during operation. DIN connector ensures secure and dust-protected electrical connection conforming to IP65 standards.
Ideal for controlling soft start sequences in conveyor and feeder applications, as well as pneumatic actuators where controlled air ramp-up is essential. This valve is suitable for industrial, manufacturing, automation, and laboratory pneumatic control systems needing reliable start-up valve performance. Manufactured in Japan and CE certified, it guarantees quality and adherence to standards.
Explore more Pneumatic Solenoid Valves in EnvMart’s extensive industrial valves collection for enhanced pneumatic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 1 MPa.
This valve has a maximum flow rate of 786 L/min, enhancing system air control response.
It features an integrated DIN connector for electrical supply, ensuring a secure and dust-protected connection.
The dimensions of this model are 149.5 mm in length, 76 mm in height, and 40 mm in width.
The valve operates within a temperature range of 0°C to a maximum of 50°C.
This solenoid valve has two ports, designed for effective start-up functionality.
The body is made of die cast aluminium, and it features Nitrile Rubber (NBR) seals.
The solenoid power consumption of this valve is 0.35 W, which helps reduce control energy use.
It is suitable for controlling soft start sequences in conveyor and feeder applications, as well as pneumatic actuators requiring controlled air ramp-up.
This model is designed as a start-up valve with a single solenoid and three positions.
The pilot pressure range for this valve is from 0.2 MPa to 1 MPa.
Yes, this valve is CE certified, ensuring adherence to relevant standards.
