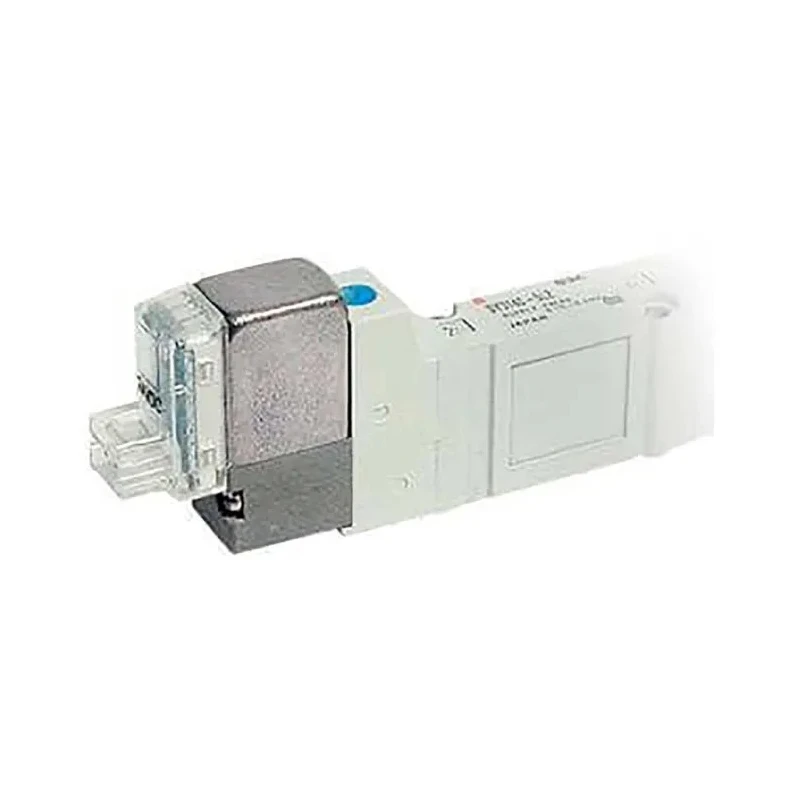

SMC Solenoid Pilot Valve with NPT, NPTF, Rc, G Thread Connections 24V DC 5 Port SY5000 Series

The SMC SY5120-5DZD-01F-Q Solenoid Pilot Valve from the SY5000 Series is a high-quality pneumatic valve designed for precise control in industrial fluid power applications. Engineered with multiple thread connection standards including NPT, NPTF, Rc, and G, this valve offers flexible installation options in pneumatic systems.

Constructed with an aluminum body and featuring halogenated nitrile rubber seals, it ensures durability and reliable performance under varied environmental conditions. The valve accommodates operating pressures from -100 kPa up to 0.7 MPa and supports air as the working fluid. Suitable for ambient and fluid temperatures between -10 and 50 degrees Celsius, it can be utilized in applications requiring freeze-resistant solutions.

Equipped with a coil rated for 12 V and 24 V DC operation, the SY5120-5DZD-01F-Q enables energy-efficient electrical control. Its design includes 5 ports and 2 positions facilitating effective pneumatic control and fluid direction. Compact physical dimensions (height 105.8 mm, width 60.9 mm) allow for easy integration into existing systems without extensive space requirements.

With a maximum flow rate of 746 L/min, this valve supports high-throughput air flow ensuring responsiveness and efficiency in pneumatic automation processes. Its RoHS compliance confirms adherence to environmental safety standards, making it suitable for sustainable industrial usage.

This solenoid pilot valve's body ported, base mount construction provides sturdy mounting and operational reliability for continuous industrial, manufacturing, HVAC, laboratory, and pneumatic machinery use cases.

Operates with air fluid at pressures from -100 kPa to 0.7 MPa. Suitable for ambient and fluid temperatures ranging from -10 to 50°C without freezing. Features halogenated nitrile rubber seals for enhanced durability. Constructed from aluminum with body ported mount type for robust application.

Supports coil rated voltages of 12 V and 24 V DC for flexible usage. Compact dimensions with height 105.8 mm and width 60.9 mm fit varied setups. Provides a maximum flow rate of 746 L/min for efficient fluid power transfer.

Complies with RoHS environmental standards, ensuring regulatory conformity. Includes 2 positions for valve operation, with 5 port valve function for versatile pneumatic control. Explore EnvMart’s extensive range of industrial pneumatic valves and accessories for your fluid power and automation needs.
