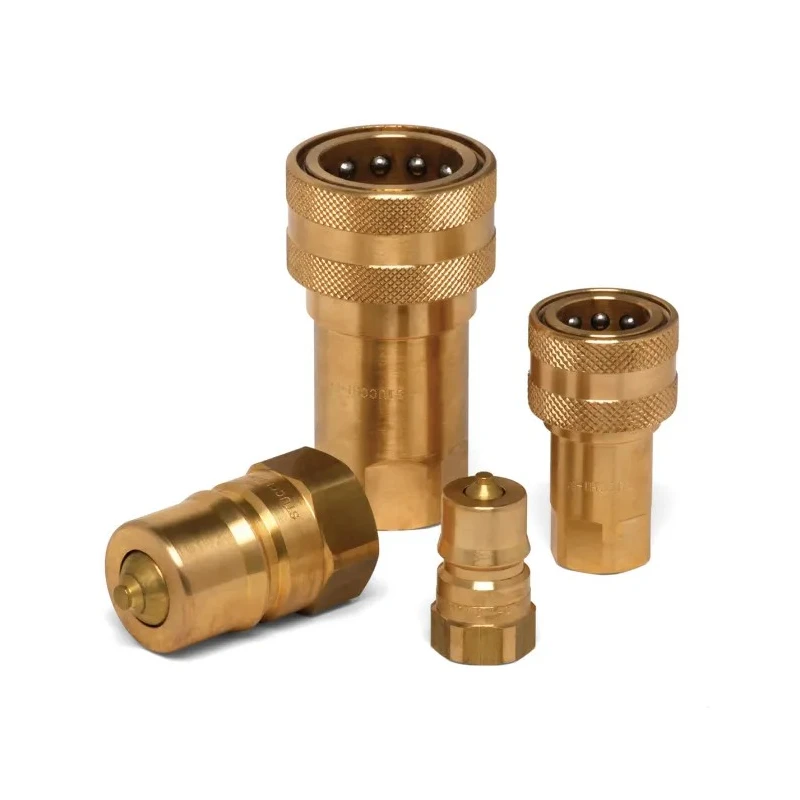

RS PRO Brass Hydraulic Quick Connect Coupling Female BSP 1/2 Inch, 160 Bar, Poppet Valve, Ball Lock, Model 768-5829

RS PRO 768-5829 Brass Hydraulic Quick Connect Coupling Female BSP 1/2 Inch is engineered to provide robust and dependable hose connections in demanding hydraulic applications. With a maximum operating pressure of 160 bar, it ensures secure and leak-proof connections with its ball lock mechanical system and poppet valve mechanism. The coupling is constructed from high-quality brass, known for corrosion resistance and durability.

This hydraulic quick connect coupling is equipped with fluoroelastomer (VITON) seals that function efficiently within a broad temperature range of -15°C to 180°C, making it suitable for diverse environments including industrial hydraulic lines, food and chemical processing plants, water and coolant lines, and mobile equipment applications.

The female BSP thread standard and 1/2 inch thread size allow compatibility with common industrial fittings, while the simple connection and disconnection mechanism - pulling back the sleeve - enables quick and safe operation without leakage, even under residual pressure.

RS PRO couplings are designed in compliance with ISO 7241-1 series 'B' standards, ensuring interchangeability and quality. The coupling’s mechanical connection uses locking balls that secure the halves firmly. This coupling is ideal for use where reliable, fast, and safe hydraulic hose connections are required.

Features include a poppet valve system, mechanical locking balls, ease of connection and disconnection by pulling back the sleeve, and resistance to a wide temperature range with standard VITON seals.

Constructed from high-quality brass for durability. Poppet valve ensures secure fluid control and leak-free operation. Mechanical ball lock provides a robust connection. Pull back sleeve design allows quick make and break connections.

Compatible with BSP thread standard, female 1/2 inch thread size. Operates reliably from -15°C to 180°C with fluoroelastomer seals. Suitable for industrial, food, chemical processing, and mobile equipment hydraulic lines.

Conforms to ISO 7241-1 series 'B' standards for Hydraulic Quick Connect Couplings.

Upgrade your hydraulic systems with RS PRO quality quick connect couplings, designed to deliver exceptional performance, safety, and convenience. Browse the hydraulic fittings category to explore a wide range of compatible solutions and accessories.
