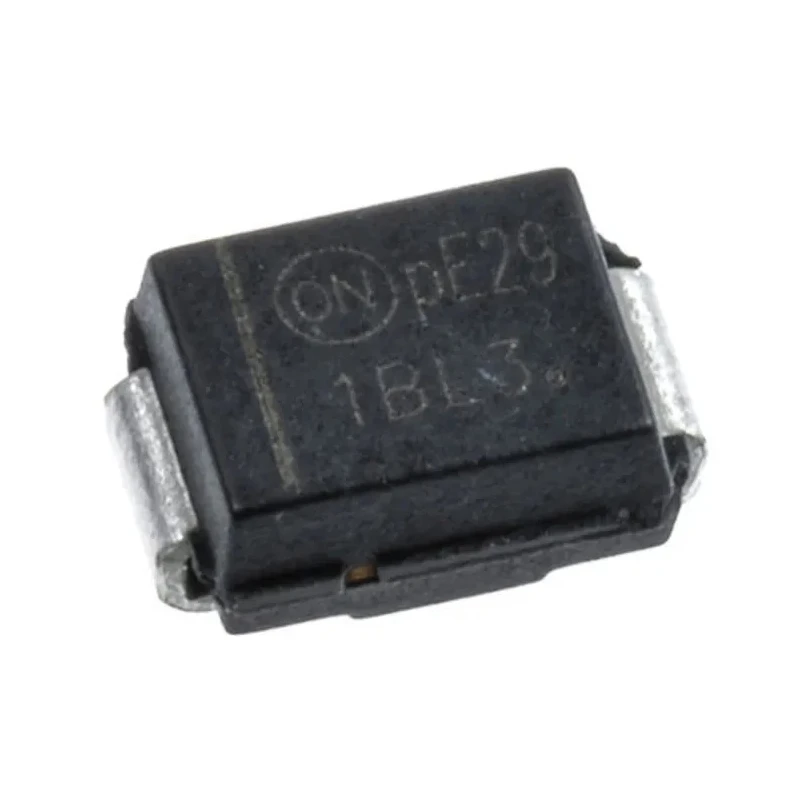

onsemi 30 V 2 A Schottky Diode 2-Pin DO-214AA MBRS130LT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS130LT3G |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | MBRS130 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 440mV |
| onsemi 30V 2A, Schottky Diode, 2-Pin DO-214AA MBRS130LT3GBrand | ON Semiconductor |
Key Features
- The diode supports a maximum continuous forward current of 2 A.
- Offers a peak reverse repetitive voltage of 30 V for robust operation.
- Built with a Schottky barrier for low forward voltage drop at 440 mV.
- Operates reliably within a temperature range from -65°C to 125°C.
- Designed for surface mount applications with a compact DO-214AA package.
- Features a peak non-repetitive forward surge current of 40 A.
- Ensures low reverse leakage current with a peak reverse current of 10 mA.
- Complies with AEC-Q101 automotive standards for quality and reliability.
Product Description
The onsemi MBRS130LT3G is a high-performance Schottky diode featuring a 30 V peak reverse voltage and 2 A maximum continuous forward current. Housed in a compact 2-pin DO-214AA surface mount package, it is designed for efficient low voltage and high frequency rectification duties in various electronic circuits.
Utilizing the Schottky barrier principle, it offers a minimal forward voltage drop of approximately 440 mV, which enhances energy efficiency and lowers thermal generation in operation. The diode maintains stability over a broad temperature range from -65°C to 125°C, making it suitable for harsh industrial and automotive environments.
Its construction includes an epoxy moulded case ensuring durability and stress protection, while maintaining a lightweight package of 11.7 mg. This diode is Pb-Free, supporting environmentally responsible manufacturing practices.
Typical applications involve freewheeling and polarity protection diode roles, in addition to its use as a power rectifier in power supplies, automotive electronics, and industrial control systems.
Compliance with the stringent AEC-Q101 automotive standard guarantees reliable performance in automotive systems and other demanding uses. The diode offers a maximum continuous forward current of 2 A and a peak surge current of 40 A.
Its peak reverse voltage is rated at 30 V with low leakage current. Compact dimensions (4.32 mm x 3.95 mm x 2.13 mm) aid automated board assembly efficiency. Low forward voltage ensures reduced power losses in rectification.
Wide operating temperature range supports diverse environmental conditions. This product is ideal for industrial, automotive, power supply, and electronic manufacturing applications requiring compact, efficient, and reliable Schottky diodes.
Explore more semiconductor components and Schottky diodes in the Electronics & Electricals category at EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 A.
It has a peak reverse repetitive voltage rating of 30 V.
The forward voltage drop is approximately 440 mV.
This diode operates reliably within a temperature range from -65°C to 125°C.
The MBRS130LT3G is housed in a compact 2-pin DO-214AA surface mount package.
The peak non-repetitive forward surge current is rated at 40 A.
The peak reverse current is 10 mA.
Typical applications include freewheeling, polarity protection, and power rectification in power supplies and automotive electronics.
The dimensions of this diode are 4.32 mm in length, 3.95 mm in width, and 2.13 mm in height.
Yes, it complies with the AEC-Q101 automotive standard for quality and reliability.
The weight of this diode is 11.7 mg.
This diode is a Schottky rectifier, which utilizes a Schottky barrier for operation.
