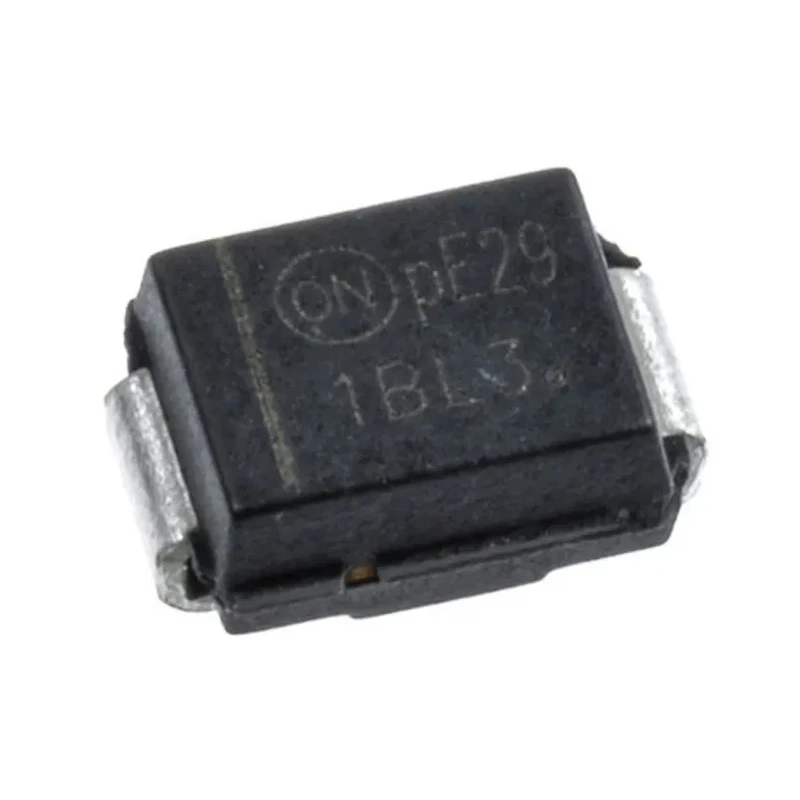

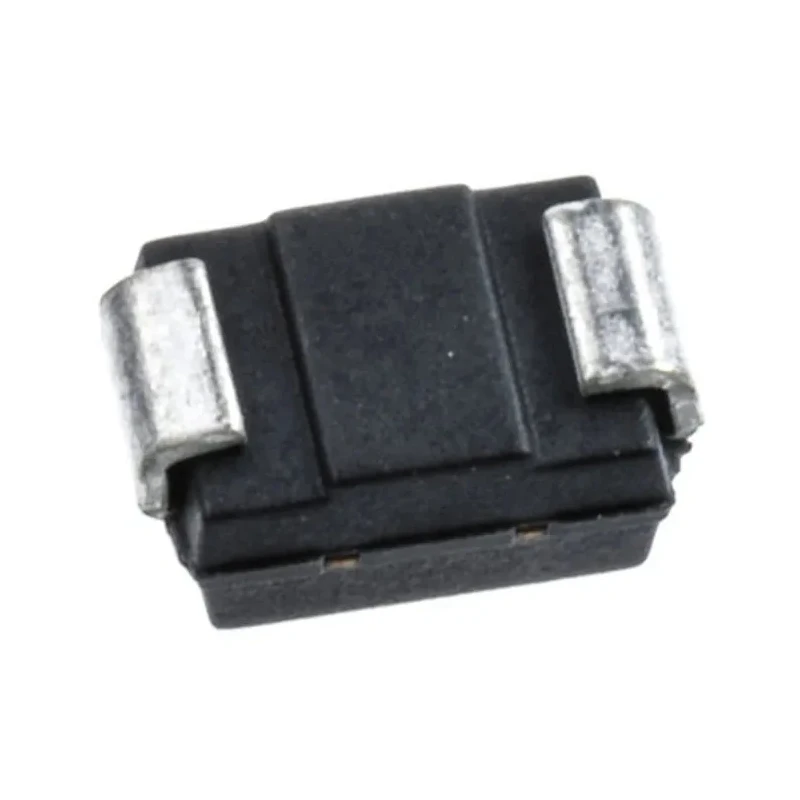

onsemi 30 V 2 A Schottky Diode 2-Pin DO-214AA MBRS130LT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS130LT3G |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | MBRS130 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 440mV |
| onsemi 30V 2A, Schottky Diode, 2-Pin DO-214AA MBRS130LT3GBrand | ON Semiconductor |
Key Features
- Employs Schottky barrier principle for low forward voltage drop and low reverse current.
- Designed for high-frequency rectification and polarity protection functions.
- Compact DO-214AA package with epoxy molded case for mechanical strength.
- Wide operating temperature range from -65°C to 125°C.
- Peak non-repetitive forward surge current of 40 A ensures robustness.
- Lightweight package with weight approximately 11.7 mg.
- Automotive grade AEC-Q101 qualification ensures reliable performance in automotive applications.
- Package dimensions approximately 4.32 mm length, 3.95 mm width, 2.13 mm height.
Product Description
onsemi MBRS130LT3G Schottky Diode 2-Pin DO-214AA is a surface mount semiconductor device designed for power rectification using the Schottky barrier principle to achieve minimal forward voltage drop and low reverse leakage current. This diode supports a maximum continuous forward current of 2A and a peak reverse repetitive voltage of 30V, making it suitable for circuit protection and efficient switching applications.
The device comes in a compact 2-pin DO-214AA package weighing around 11.7 mg, which is epoxy molded for enhanced durability and stress protection. It operates reliably over a broad temperature range from -65°C to +125°C, with a peak surge current capability of 40A for short duration pulses, providing strong transient resistance.
This Schottky diode is ideal for use in low voltage, high frequency rectification scenarios such as power supplies, freewheeling diodes in DC motor drives, and polarity protection circuits, especially where size and weight constraints are critical. The diode’s automotive standard compliance to AEC-Q101 ensures it meets stringent quality and reliability requirements for automotive and industrial applications.
Low forward voltage of 440 mV reduces power losses. Peak reverse current limited to 10 mA enhances efficiency. Robust construction suitable for automated board assembly. Epoxy molded case provides mechanical strength and environmental protection.
Lightweight and compact physical design for space-constrained electronics.
Applications for this device include power rectification in consumer electronics, telecommunications equipment, automotive electronics, and embedded systems requiring efficient high-speed switching. Its surface mount design enables seamless integration into automated production processes and densely packed circuit boards.
Explore more semiconductor components and Schottky diodes optimized for performance and reliability on EnvMart’s platform.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this Schottky diode is 2A.
The peak reverse repetitive voltage rating is 30V.
The dimensions of the DO-214AA package are approximately 4.32 mm in length, 3.95 mm in width, and 2.13 mm in height.
This model operates over a temperature range from -65°C to +125°C.
The peak non-repetitive forward surge current is 40A.
The maximum forward voltage drop is 440 mV.
The peak reverse current is limited to 10 mA.
This diode complies with the automotive standard AEC-Q101.
This diode uses a surface mount type.
The weight of this Schottky diode is approximately 11.7 mg.
The MBRS130LT3G is designed for applications such as power rectification in consumer electronics, telecommunications equipment, and automotive electronics.
The diode configuration of this model is single.
