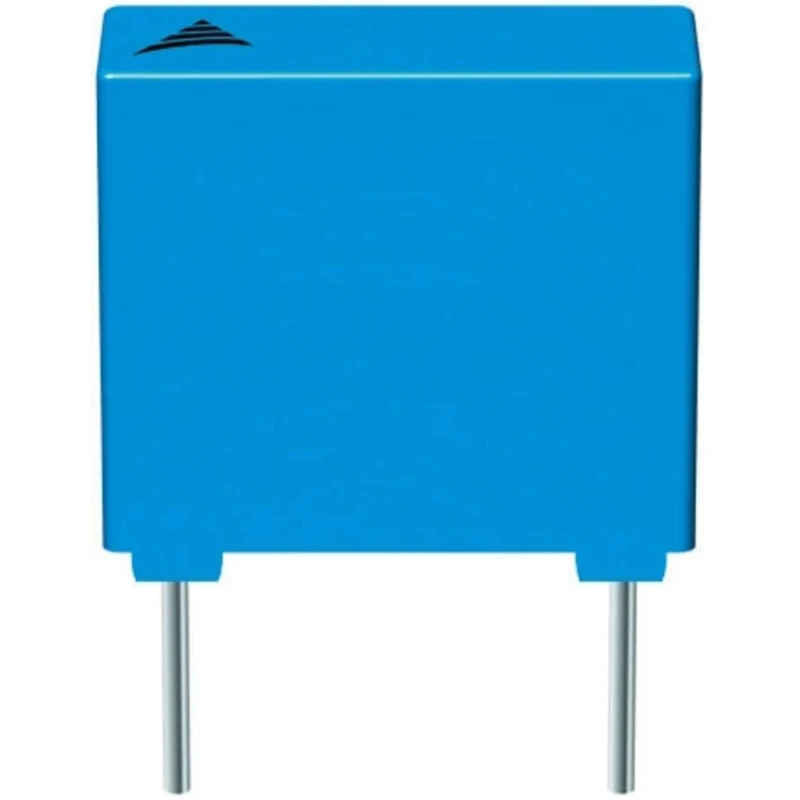

TDK Film Capacitor 56 nF 300V AC 300V DC Through Hole Polypropylene Case B32023A3563M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 56 nF 300V AC 300V DC Through Hole Polypropylene Case B32023A3563M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	Spain
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	15mm
Length	26.5mm
Model	B32023A3563M000
Width	6mm
Mount Type	Through Hole
Series	B32023
Maximum Operating Temperature	110°C
Capacitance	56nF
Standards/Approvals	CSA, UL
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm

Key Features

Constructed with a plastic case and epoxy resin sealing for durability.
Compact dimensions enable easy PCB mounting with a 22.5 mm lead pitch.
Features excellent self-healing properties for enhanced reliability.
Suitable for interference suppression and line-to-ground applications.
Operates reliably across a temperature range from -40 to 110°C.
Certified to CSA and UL standards ensuring safety and quality.
Designed with a lead diameter of 0.8 mm and pin count of 2 for stable connections.
High voltage capability supports demanding electronic circuits.

Product Description

TDK B32023A3563M000 is a high-quality film capacitor designed for electronic applications requiring a capacitance of 56 nF with rated voltages of 300V AC and 300V DC. Featuring polypropylene construction encased in a plastic case with epoxy resin sealing, it ensures mechanical strength and reliability in industrial and commercial electronic circuit designs.

This through-hole mount component has a lead pitch of 22.5 mm and compact dimensions of 26.5 mm length, 15 mm height, and 6 mm width, facilitating easy integration onto printed circuit boards. The capacitor offers excellent self-healing properties, making it suitable for noise interference suppression and line-to-ground safety applications where durability and performance are crucial.

Operating temperature ranges from -40°C to 110°C, supporting diverse operating environments. The product complies with multiple international standards including EN 132400 / IEC 60384-14, UL1414, UL1283, and CSA certifications, underlining its suitability in regulated industrial and consumer electronics applications.

With two pins and a lead diameter of 0.8 mm, it provides stable and secure electrical connections. Its series B32023 encapsulates the trusted TDK quality and performance in passive electronic components.

Polypropylene construction with plastic case and epoxy resin sealing for robust durability. Compact physical size for efficient board space utilization. High voltage handling capacity up to 300V AC and 300V DC. Wide operating temperature range for industrial reliability.

Certified to CSA and UL standards ensuring international compliance. Excellent self-healing properties increase lifespan and performance. Utilized in interference suppression and line-to-ground electronic applications. Manufactured in Spain ensuring quality control and traceability.

This capacitor is ideal for use in industrial, commercial electronics, power supply units, and HVAC control systems. For further selection and part compatibility, explore related Film Capacitors in the Electronics Components category on EnvMart.
