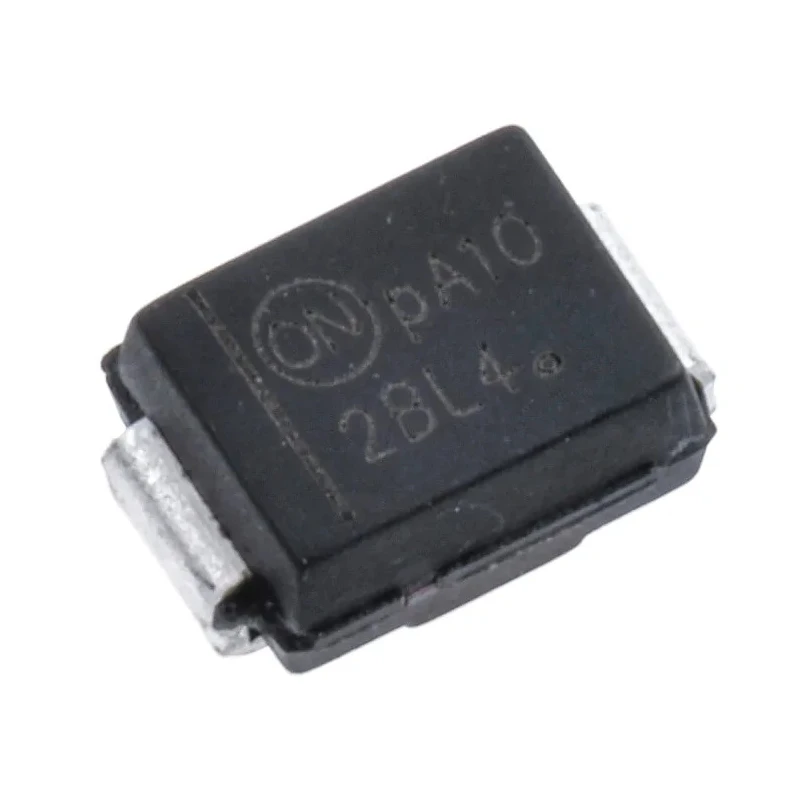

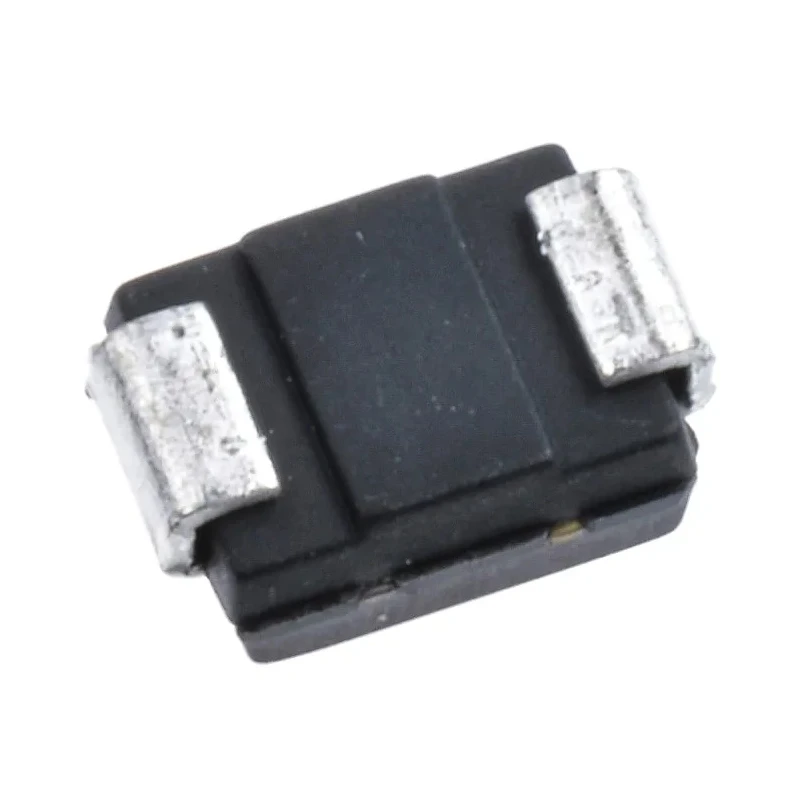

onsemi Schottky Diode 40 V 2 A Surface Mount DO-214AA Package MBRS240LT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS240LT3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 540mV |
Key Features
- This diode employs Schottky barrier technology for low forward voltage drop and fast switching.
- It is designed for high-frequency rectification and polarity protection applications.
- The package is epoxy moulded with lightweight construction weighing approximately 11.7 mg.
- Operates efficiently over a temperature range from -55°C to 125°C.
- Peak non-repetitive forward surge current rating is 25 A.
- Automotive grade AEC-Q101 compliant ensuring reliable performance in automotive applications.
- Features a rectangular DO-214AA package with dimensions 4.32 mm length, 3.56 mm width, and 2.13 mm height.
- Offers peak reverse current of 2 mA and a maximum forward voltage of 540 mV.
Product Description
onsemi MBRS240LT3G Schottky Diode is a high-performance semiconductor device designed for low voltage, high-frequency rectification, freewheeling, and polarity protection. It features a single diode configuration housed in a space-saving surface mount DO-214AA package, ideal for applications requiring compact size and lightweight components.
This diode utilizes the Schottky barrier principle employing a barrier metal to optimize the forward voltage drop and reverse current, thereby enhancing efficiency in power management across industrial, automotive, and electronic systems. The diode supports a maximum continuous forward current of 2 A and withstands peak reverse repetitive voltage up to 40 V.
Operating temperature ranges from -55°C to 125°C, making it suitable for use in harsh environments including automotive applications thanks to its compliance with the AEC-Q101 standard. The epoxy moulded case ensures durability and protection from mechanical stress, while the lightweight 11.7 mg package reduces system weight.
Typical uses include high-frequency power rectification circuits, polarity protection diodes in power supply modules, and automotive electronics requiring robust semiconductor components. The diode’s 2-pin configuration simplifies PCB layouts and automated board assembly processes.
This diode employs Schottky barrier technology for low forward voltage drop and fast switching. It is designed for high-frequency rectification and polarity protection applications. The package is epoxy moulded with lightweight construction weighing approximately 11.7 mg.
Operates efficiently over a temperature range from -55°C to 125°C. Peak non-repetitive forward surge current rating is 25 A. Automotive grade AEC-Q101 compliant ensuring reliable performance in automotive applications. Features a rectangular DO-214AA package with dimensions 4.32 mm length, 3.56 mm width, and 2.13 mm height.
Offers peak reverse current of 2 mA and a maximum forward voltage of 540 mV.
Choose onsemi MBRS240LT3G Schottky Diode for reliable, efficient performance in electronic, automotive, and industrial power management applications. Discover more products in the Schottky Diodes & Rectifiers category at EnvMart to meet your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 A.
It operates efficiently over a temperature range from -55°C to 125°C.
The maximum forward voltage drop for this diode is 540 mV.
This model weighs approximately 11.7 mg, making it lightweight for various applications.
It is housed in a rectangular DO-214AA package.
The peak non-repetitive forward surge current rating is 25 A.
Yes, it is compliant with the AEC-Q101 automotive standard.
This diode features a 2-pin configuration.
It is suitable for high-frequency rectification, freewheeling, and polarity protection applications.
The package is epoxy moulded, providing protection and durability.
