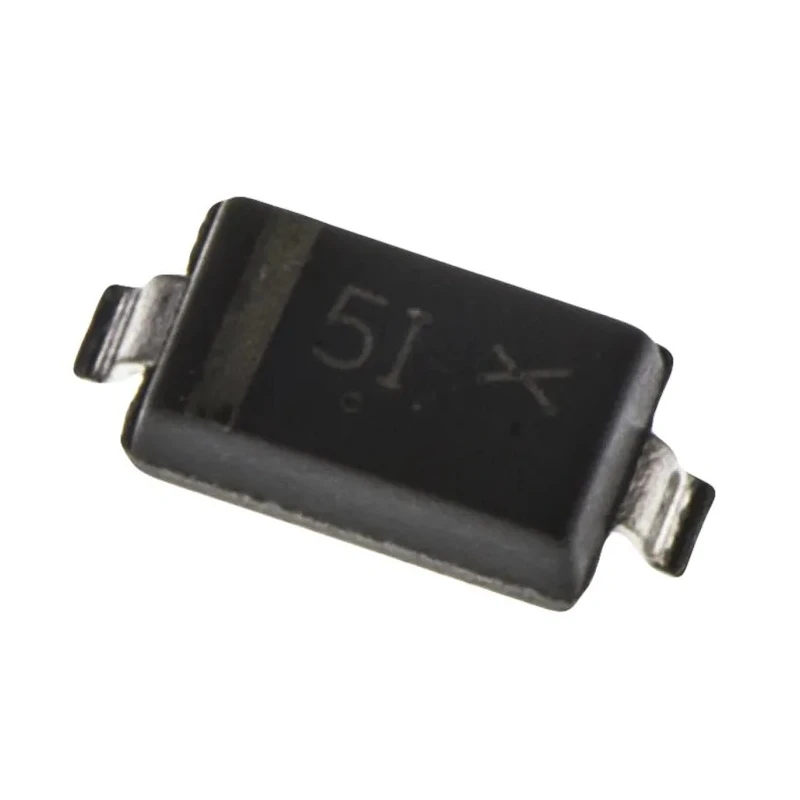

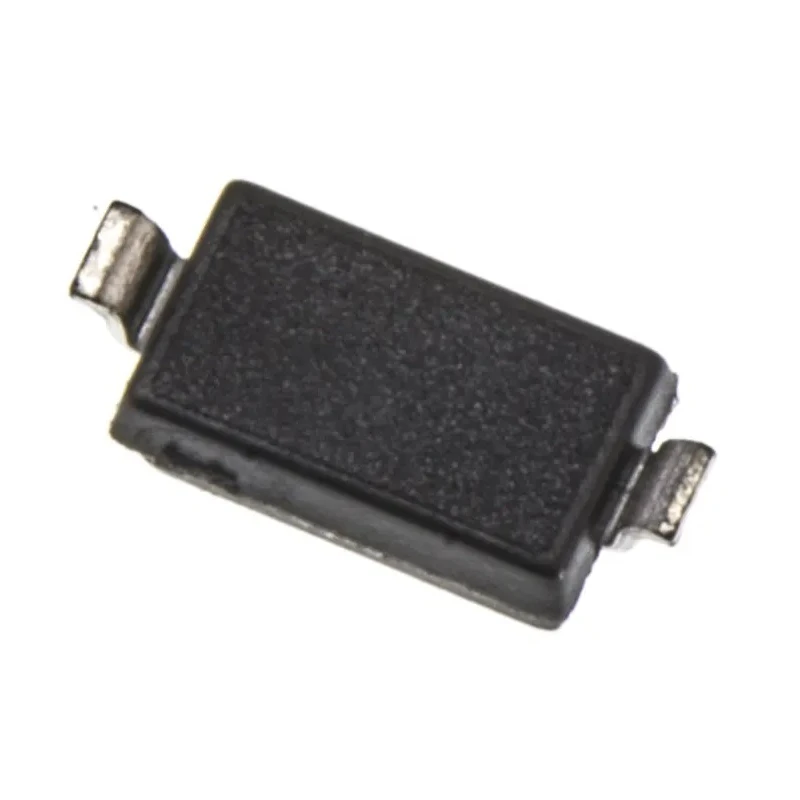

onsemi Silicon Junction Switching Diode, Single, 300 mA, 75 V, 350 mW, 2-Pin SOD-123 MMSD4148T1G

onsemi MMSD4148T1G Silicon Junction Switching Diode is a highly reliable single diode designed for surface mount technology (SMT) applications. It supports a maximum forward current of 300 mA and a peak reverse voltage of 75 V, making it suitable for switching and signal processing tasks in various electronic circuits. Packaged in the compact SOD-123 form factor, this diode measures 2.69 mm in length, 1.6 mm in width, and 1.12 mm in height, which enables space-saving on densely populated PCBs.

This diode exhibits a low peak reverse recovery time of 4 ns, allowing for fast switching with minimal losses. The maximum power dissipation of 350 mW permits operation under moderate power levels while maintaining device integrity. It is rated to operate over a wide temperature range from -55°C to 150°C, suitable for demanding industrial conditions.

The device also withstands peak non-repetitive forward surge currents of up to 2 A, providing robustness against transient surges during switching events. Though this particular model does not possess automotive standard certifications, it benefits from the quality and reliability standards of onsemi.

Typical applications include switching diodes in power supplies, signal demodulation, and other electronic control circuits in industrial, commercial, and consumer electronic products. The MMSD4148T1G is designed for ease of insertion and soldering in automated SMT assembly, enhancing production efficiency and consistency.

Designed for surface mount applications in compact electronic devices. Maximum forward current of 300 mA ensures reliable switching performance. Maximum peak reverse voltage of 75 V for robust operation in various circuits.

Small SOD-123 package with 2.69 mm length, 1.6 mm width, and 1.12 mm height. Peak reverse recovery time of 4 ns enables fast switching capability. Maximum power dissipation rating of 350 mW supports moderate power applications.

Operational temperature range spans from -55°C up to 150°C for industrial environments. Non-repetitive forward surge current capability of 2 A for transient conditions. No specific automotive standard certification applicable to this device.

Ideal for use in switching and signal processing in industrial and consumer electronics. For further exploration, EnvMart offers a wide selection of semiconductor Switching Diodes and electronic components for various industrial applications.
