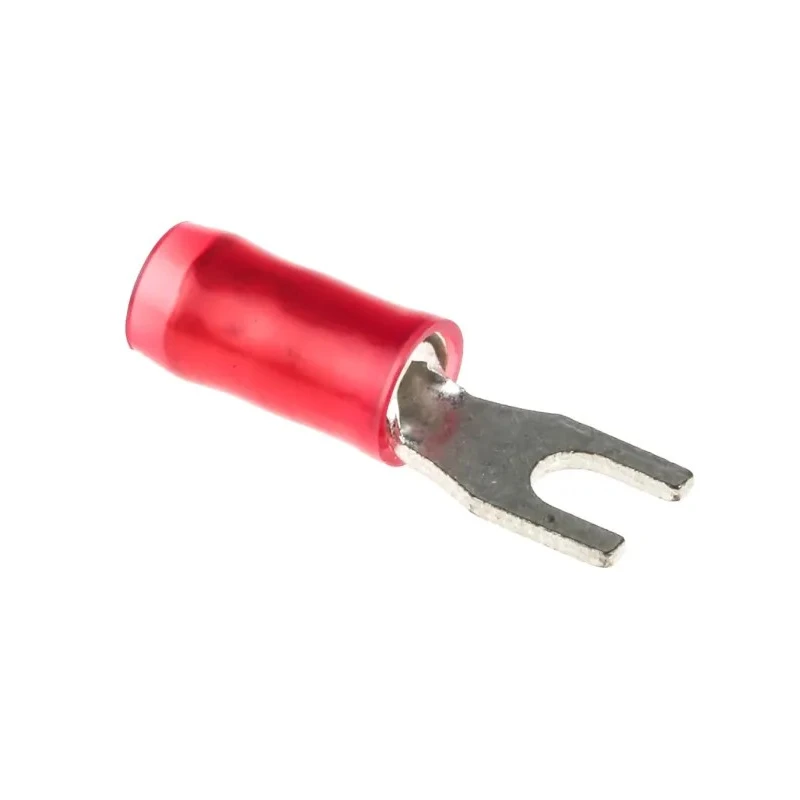

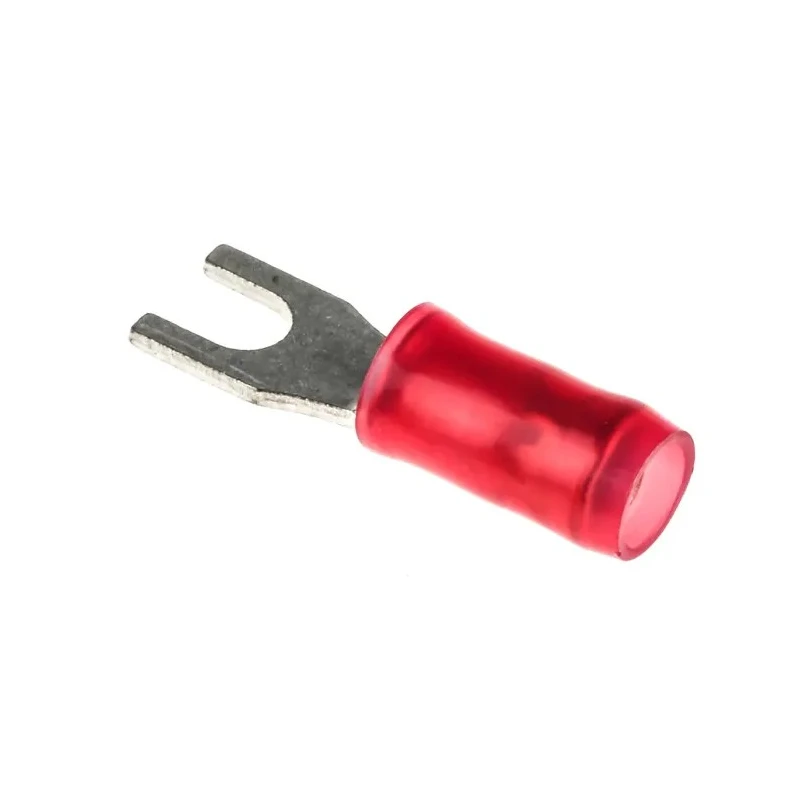

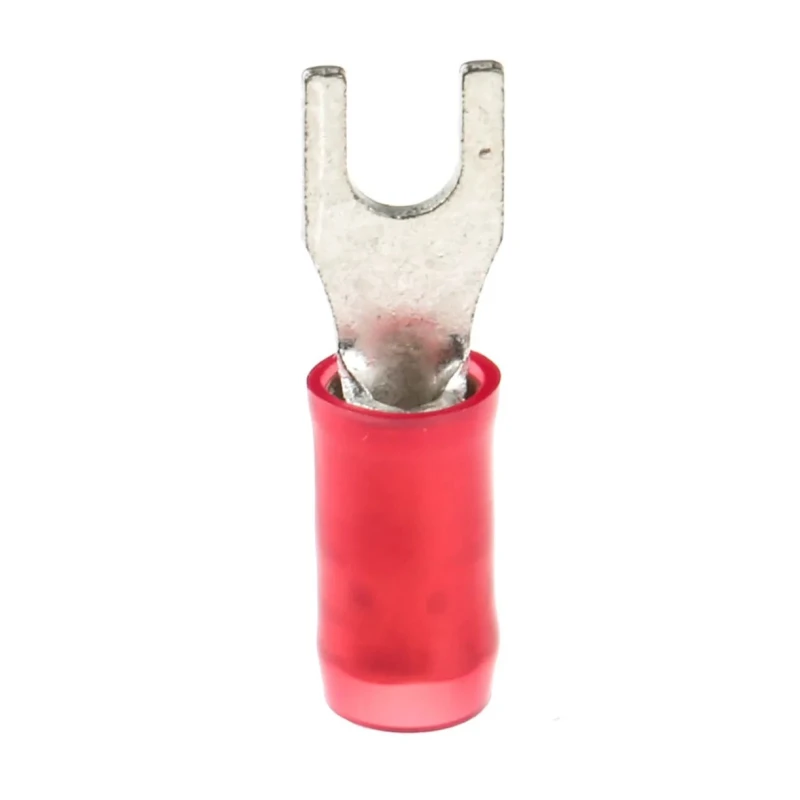

TE Connectivity PIDG Insulated Fork Terminal 22 AWG to 16 AWG M2.5 Stud Size Nylon Red 130521

TE Connectivity 130521 PIDG Insulated Fork Terminal is an insulated wire crimp terminal designed for high reliability in electrical and electronic applications. This Fork Terminal supports wire sizes from 22 AWG to 16 AWG (0.3mm² to 1.4mm²) and features a M2.5 stud size, making it suitable for precision wiring and panel connections.

The terminal body is made from high conductivity copper with tin plating to prevent corrosion, ensuring long-lasting electrical contact. The nylon insulation sleeve, colored red, provides mechanical protection and easy wire gauge identification, improving safety and installation speed.

Its specialized design includes serrations inside the wire barrel to maximize contact and tensile strength post-crimping. The copper sleeve surrounding the barrel enhances wire insulation support, preventing insulation fraying and conductor breakage under bending stress.

The funnelled wire entry facilitates efficient wire insertion during production, reducing assembly time. This terminal complies with requirements suitable for industrial, automotive, aerospace, and instrumentation applications, although it has no specific certifications listed.

Typical applications include control panels, lighting systems, power supplies, transportation, lifting equipment, motors, and appliances where reliable wire termination is critical.

Constructed with high conductivity copper for optimal electrical performance. Tin plating on contacts provides corrosion resistance. Nylon insulation sleeve enhances durability and eases wire size identification. Funnelled wire entry streamlines wire insertion process.

Serrated wire barrel ensures excellent contact and tensile strength. Supports wire sizes ranging from 22 AWG to 16 AWG. Overall length is compact at 19.6 mm for versatile usage. 0.8 mm thickness allows fitting in tight assembly spaces.

Set your sourcing with TE Connectivity's PIDG insulated terminals for dependable electrical connections. Explore our Electronics & Electricals categories for more wire terminals and splices.
