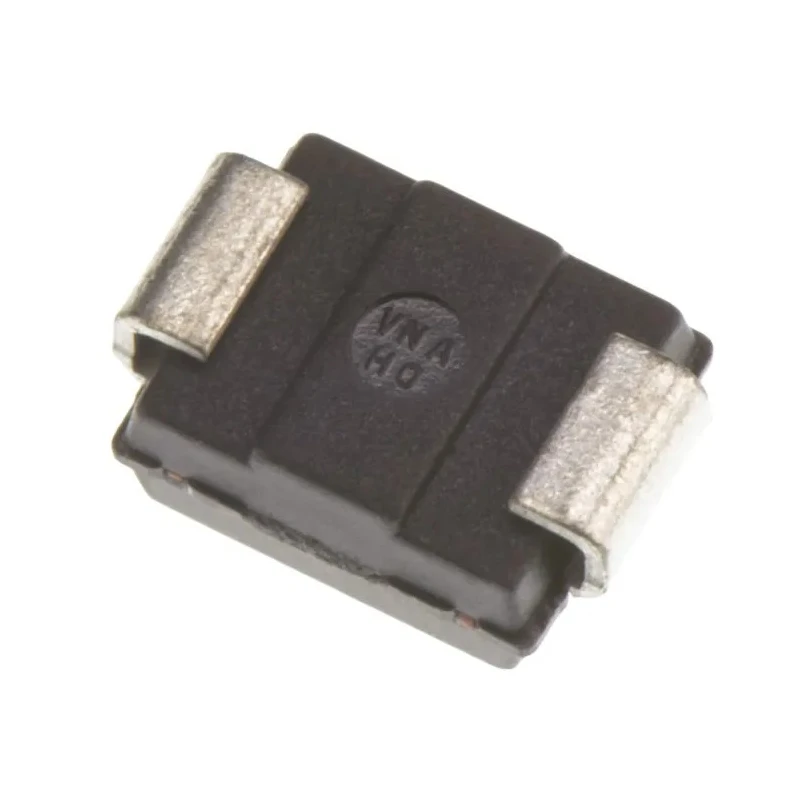

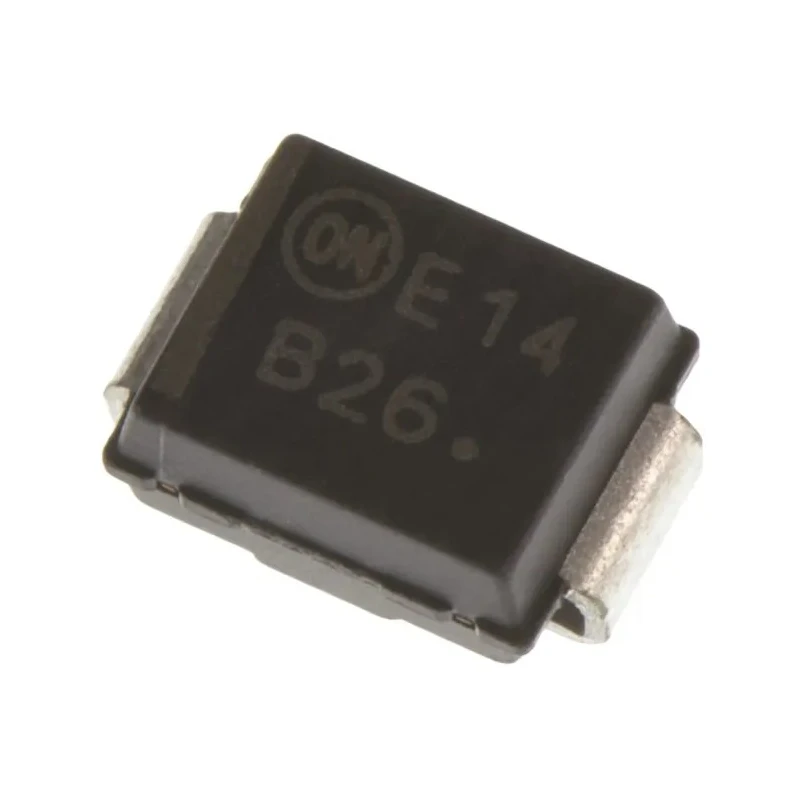

onsemi 60 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AA MBRS260T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS260T3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 630mV |
Key Features
- Compact surface mount design with DO-214AA package type.
- Maximum continuous forward current of 2 A supports reliable operation.
- Peak reverse repetitive voltage rating of 60 V.
- Low forward voltage drop of 630 mV enhances efficiency.
- Operating temperature range from -55°C to 125°C for varied environments.
- High surge current capability up to 60 A peak non-repetitive forward surge.
- Offers lightweight epoxy moulded package with 2 pins for easy assembly.
- AEC-Q101 automotive qualified for robust automotive applications.
Product Description
onsemi MBRS260T3G is a high-performance Schottky diode featuring a surface mount DO-214AA package, rated for 60 V peak reverse repetitive voltage and 2 A maximum continuous forward current.
This diode utilizes the Schottky barrier principle to ensure a low forward voltage drop of 630 mV and minimal reverse leakage current, making it ideal for efficient rectification in low-voltage and high-frequency circuits.
With a compact form factor measuring 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height, the MBRS260T3G fits automated board assembly processes and space-constrained electronic designs.
The device is encapsulated in a lightweight epoxy moulded case weighing approximately 11.7 mg, providing stress protection and durability. It supports operating temperatures from -55°C to 125°C, suitable for a wide range of industrial and automotive environments.
Compact surface mount DO-214AA package enhances space efficiency. Reliable 2 A forward current rating ensures robustness in power circuits. Low forward voltage drop minimizes power loss and heat generation. High surge current capability withstands transient loads.
AEC-Q101 qualification certifies suitability for automotive applications. Epoxy moulded case provides mechanical and thermal protection. Ideal for switching, polarity protection, and freewheeling diode applications in industrial, automotive, and communication equipment.
This diode is widely used in industrial control systems, power supplies, automotive electronics, and manufacturing circuits requiring efficient rectification and protection. Explore our comprehensive range of Schottky diodes and rectifiers for reliable semiconductor solutions at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the MBRS260T3G is 2 A.
This diode has a peak reverse repetitive voltage rating of 60 V.
The dimensions of this diode are 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height.
The operating temperature range for the MBRS260T3G is from -55°C to 125°C.
The maximum forward voltage drop of the MBRS260T3G is 630 mV.
It has a peak non-repetitive forward surge current capability of up to 60 A.
This diode comes in a surface mount DO-214AA package type.
Yes, the MBRS260T3G is AEC-Q101 automotive qualified.
The MBRS260T3G weighs approximately 11.7 mg.
It is a single Schottky diode.
This model is suitable for applications such as switching, polarity protection, and freewheeling in industrial, automotive, and communication equipment.
The peak reverse current for the MBRS260T3G is 200 μA.
