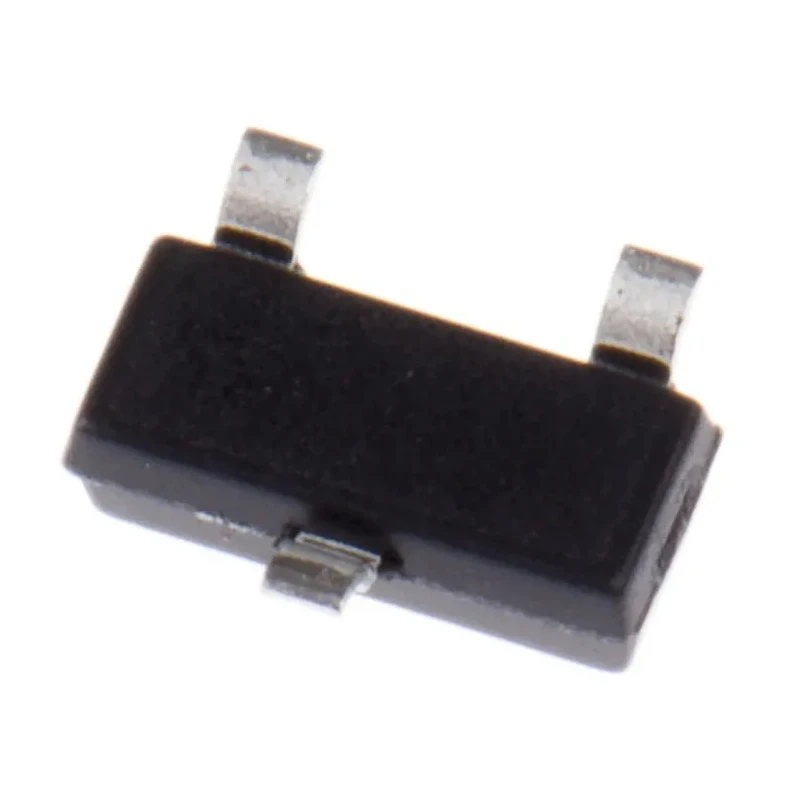

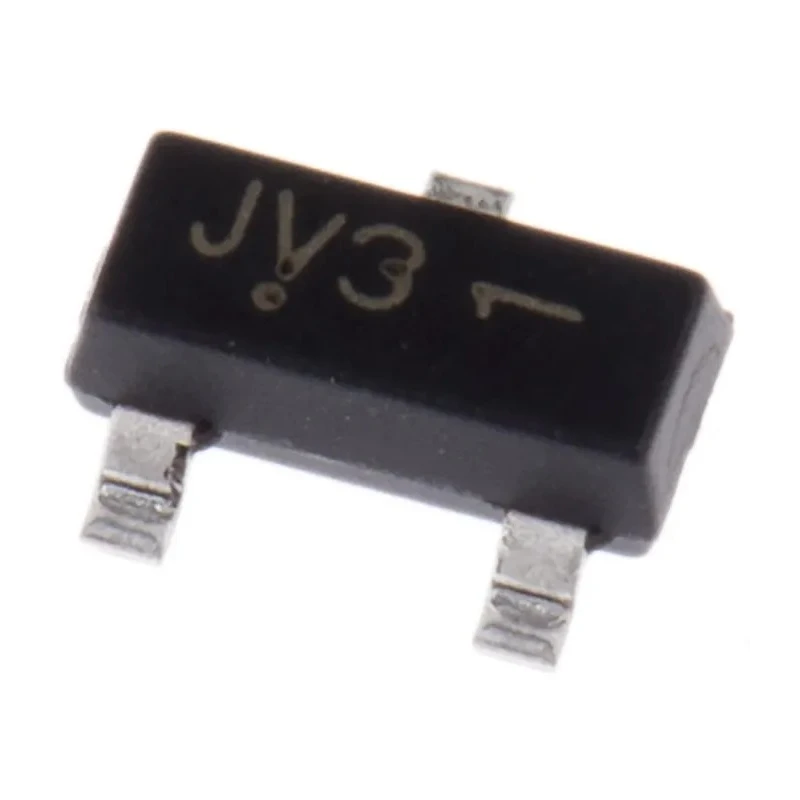

onsemi 30 V 200 mA Surface Mount Schottky Diode SOT-23 Package BAT54LT1G

onsemi BAT54LT1G is a single diode Schottky rectifier packaged in a surface mount SOT-23 case. Designed for low voltage and high frequency rectification, it features a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V.

The diode provides a low maximum forward voltage drop of 0.8 V which enables efficient power usage and minimum power loss. With a peak reverse recovery time of 5 nanoseconds, the BAT54LT1G supports fast switching applications commonly required in industrial, automotive, and electronic equipment.

The device is rated for reliable operation in extreme environmental conditions, from a minimum operating temperature of -55°C to a maximum of 125°C, assuring robust performance in demanding applications. Its compact dimensions (2.9 mm length, 1.3 mm width, 0.94 mm height) enable efficient use on densely packed printed circuit boards and automated assembly lines.

The BAT54LT1G also meets the stringent AEC-Q101 automotive qualification standards, making it suitable for automotive electronics requiring high reliability and quality. Its epoxy moulded lightweight case supports stress protection and automated manufacturing.

Applications include polarity protection, freewheeling diodes in motor drives, and low voltage rectification in power supplies and consumer electronics. The diode’s Schottky barrier technology ensures optimal forward voltage and minimizes reverse leakage current, vital for efficient circuit design.

Supports a maximum continuous forward current of 200 mA. Maximum reverse voltage of 30 V for dependable protection. Low forward voltage drop of 0.8 V to reduce power losses. 5 ns peak reverse recovery time suitable for high-frequency switching.

Operates between -55°C and 125°C for harsh environments. SOT-23 surface mount package for compact circuit designs. Qualified to automotive AEC-Q101 standard for extended reliability. Lightweight epoxy moulded package ideal for automated assembly.

Schottky barrier technology for efficient diode performance.
