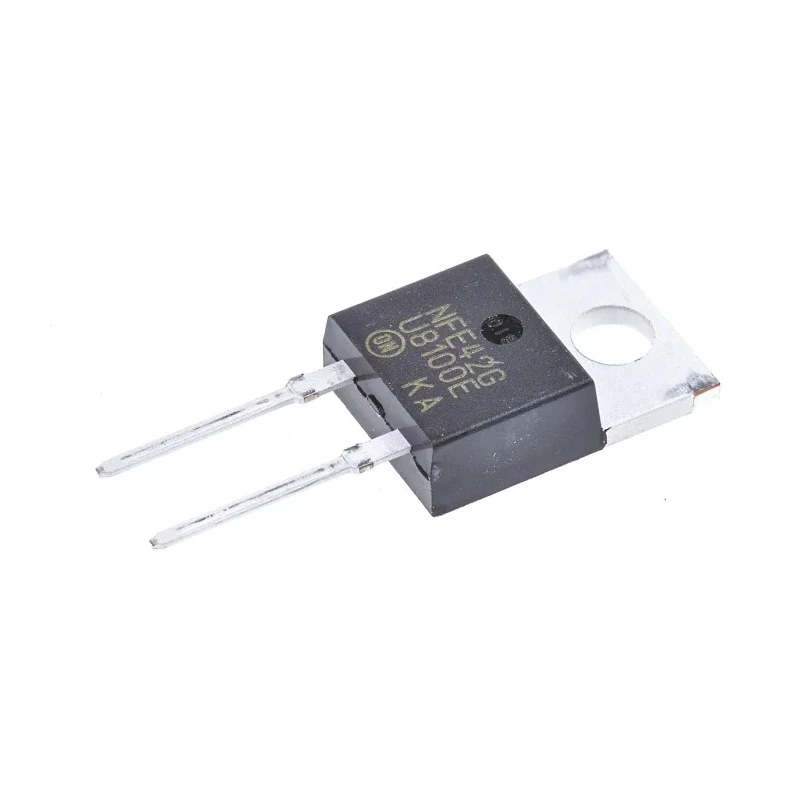

onsemi 1 kV 8 A Switching Diode 2-Pin TO-220AC MUR8100EG

onsemi MUR8100EG is a single diode switching rectifier designed for high performance in electronic circuits. Packaged in TO-220AC through-hole mount, it can handle a maximum continuous forward current of 8 A and withstand peak reverse repetitive voltage of 1 kV. This diode is engineered for switching applications requiring fast recovery and efficient conduction.

The device features a maximum forward voltage drop of 1.8 V, minimizing power loss during operation. Its peak non-repetitive forward surge current is 100 A, providing robustness against transient current spikes. Operating temperatures range from -65°C to 175°C, making it suitable for a variety of industrial and automotive environments.

This diode complies with the AEC-Q101 automotive standard, making it reliable for automotive electronic systems. The fast peak reverse recovery time of 100 ns allows for rapid switching, improving performance in power electronics, inverter circuits, and power supply designs.

Physical dimensions are compact with 10.29 mm length, 4.82 mm width, and 9.27 mm height, enabling easy PCB integration. The device originates from the Czech Republic, assuring quality manufacturing standards.

Typical applications include power conversion modules, motor drives, and industrial automation systems. With its robust electrical specifications and automotive qualification, the onsemi MUR8100EG switching diode is ideal for demanding environments in industrial, automotive, and power electronics sectors.

The diode features a TO-220AC package type providing robust mechanical stability. It supports maximum continuous forward current of 8 amperes. The peak reverse repetitive voltage is rated at 1000 volts, ensuring high voltage tolerance.

Designed as a switching rectifier with single diode configuration and 2 pins. Maximum forward voltage drop is 1.8 volts, offering efficient conduction. The diode’s peak non-repetitive forward surge current is 100 amperes.

It operates reliably between -65°C and 175°C operating temperature range. The device has a fast peak reverse recovery time of 100 nanoseconds suitable for switching applications. Complies with automotive standard AEC-Q101, ensuring automotive-grade quality.

Dimensions: 10.29 mm length, 4.82 mm width, and 9.27 mm height. Explore more semiconductor components and Switching Diodes at EnvMart for your industrial and automotive needs.
