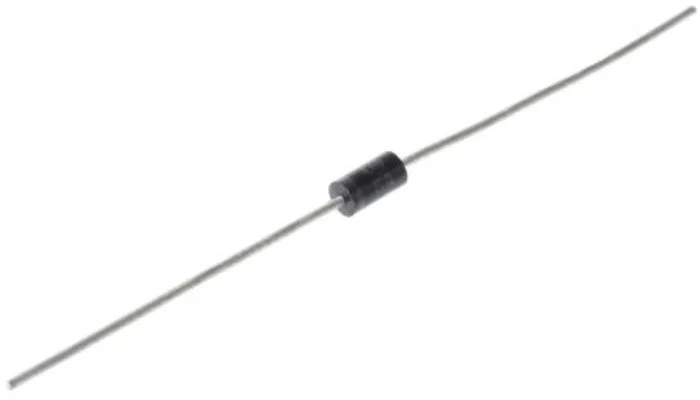

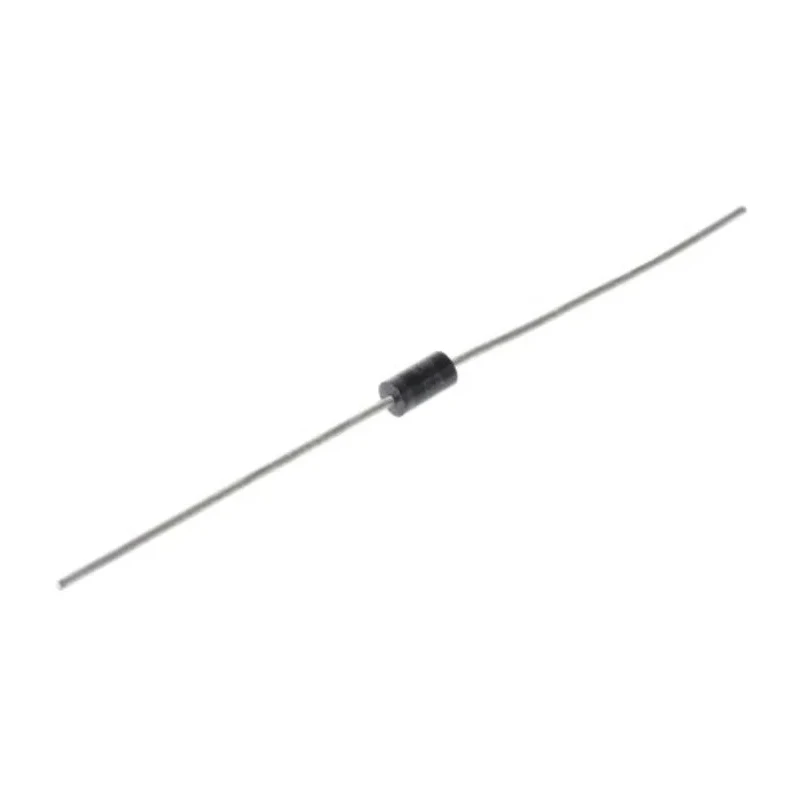

onsemi 36 V General Purpose Zener Diode 1W Through Hole 2-Pin DO-41 1N4753A

onsemi 1N4753A is a high-quality general purpose Zener diode designed for precise voltage regulation in electronic circuits. It features a nominal Zener voltage of 36 volts with a tolerance of 5%, providing stable and reliable voltage clamping performance. This diode can dissipate power up to 1 watt, making it suitable for low power applications in industrial, automotive, and consumer electronics.

The diode utilizes a single-element chip in a through-hole DO-41 package, which ensures easy mounting and effective heat dissipation. Its hermetically sealed glass case with double slug construction and oxide passivated die offers superior protection against environmental factors, enhancing longevity and performance stability.

This Zener diode operates efficiently over a wide temperature range from -65°C to 200°C, broadening its application scope in harsh industrial environments. The leads are corrosion resistant and readily solderable with a maximum lead temperature of 230°C for 10 seconds, facilitating reliable assembly.

Its test current is rated at 7 mA and maximum reverse leakage current is low at 5 μA, details that contribute to its precision voltage regulation capabilities. The compact dimensions of 5.2 mm length and 2.72 mm height make it ideal for space-constrained PCB layouts.

Single diode configuration designed for voltage regulation applications. Nominal Zener voltage of 36 V with ±5% tolerance ensuring stable voltage performance. Maximum power dissipation of 1 watt suitable for low power electronic circuits.

Through hole mount type with 2-pin DO-41 hermetically sealed glass package. Wide operating temperature range from -65°C to 200°C for reliable industrial use. Test current rated at 7 mA with a maximum reverse leakage current of 5 μA.

Double slug type construction with oxide passivated die for durability. External corrosion resistant finish with readily solderable leads for easy assembly. Cathode polarity clearly marked by polarity band ensuring correct installation.

Compact dimensions: length 5.2 mm, height 2.72 mm for space-effective designs.

This diode is extensively used in electronics and electrical applications including power supplies, voltage regulators, and protection circuits. Its reliability and precise characteristics make it ideal for industrial and commercial manufacturing, laboratory electronics, and automotive electronic controls.
