| Country of Origin | Czech Republic |
|---|---|
| Brand | onsemi |
| Height | 1.12mm |
| Length | 2.69mm |
| Model | MBR0520LT1G |
| Width | 1.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 250μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5.5A |
| Maximum Forward Voltage Vf | 385mV |

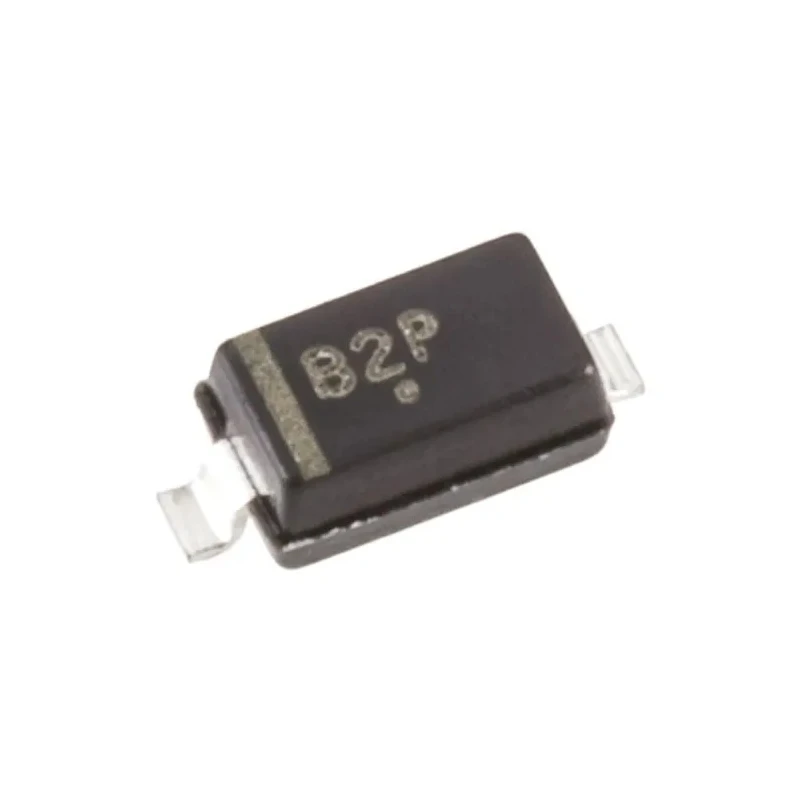

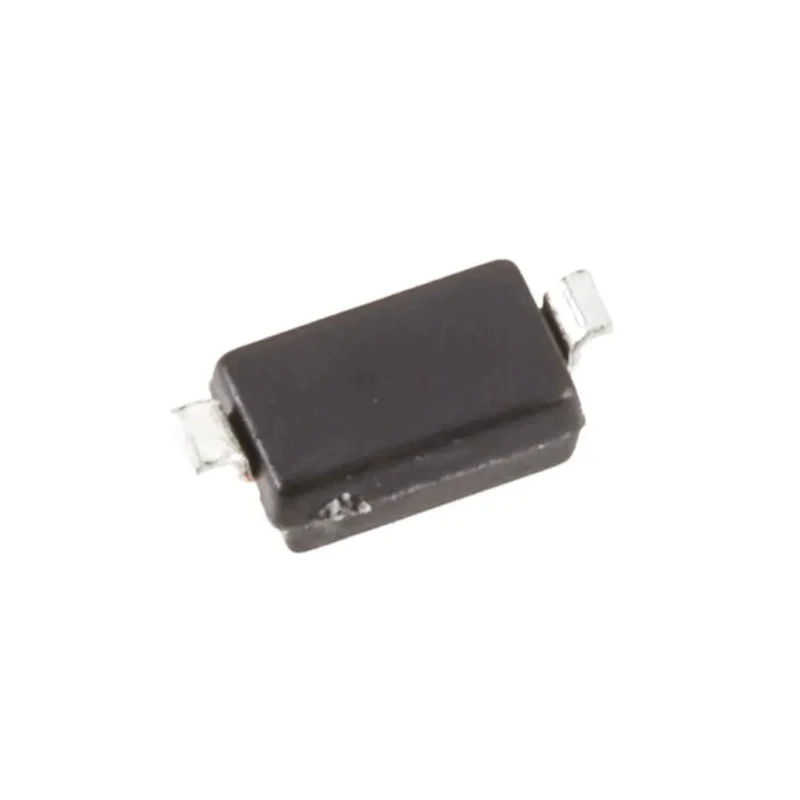

onsemi MBR0520LT1G is a Schottky barrier rectifier diode designed for surface mount technology in a compact 2-pin SOD-123 plastic package. It provides a maximum continuous forward current of 500 mA and a peak reverse voltage of 20 V, making it suitable for efficient low voltage and high frequency rectification tasks commonly found in electronic, automotive, and power supply systems.
The diode features a low forward voltage drop of 385 mV which improves power efficiency and reduces heat generation. Its construction includes corrosion-resistant external surfaces that enhance durability during automated board assembly processes. The operating temperature range from -65°C to 125°C allows usage in harsh industrial and automotive environments.
Key design advantages include a stress protection guard ring and a cathode band for easy polarity identification, ensuring robust and mistake-free PCB mounting. The peak non-repetitive forward surge current of 5.5 A provides reliable transient current handling, protecting delicate circuitry during voltage spikes.
This onsemi Schottky diode is widely applied in automotive electronics, power rectifiers, DC/DC converters, and other semiconductor-based switching power supplies. The product meets the AEC-Q101 automotive qualification standard, guaranteeing high reliability in critical applications.
Surface mount SOD-123 package with corrosion resistant external surfaces. Maximum forward voltage of 385 mV ensuring efficient rectification. Peak reverse repetitive voltage rated at 20 V. Operating temperature range from -65°C to 125°C for versatile applications.
Peak non-repetitive forward surge current of 5.5 A for transient handling capability. Features a cathode band for polarity identification. Ideal for low voltage, high frequency rectification applications. Compliant with automotive standard AEC-Q101 for reliability.
