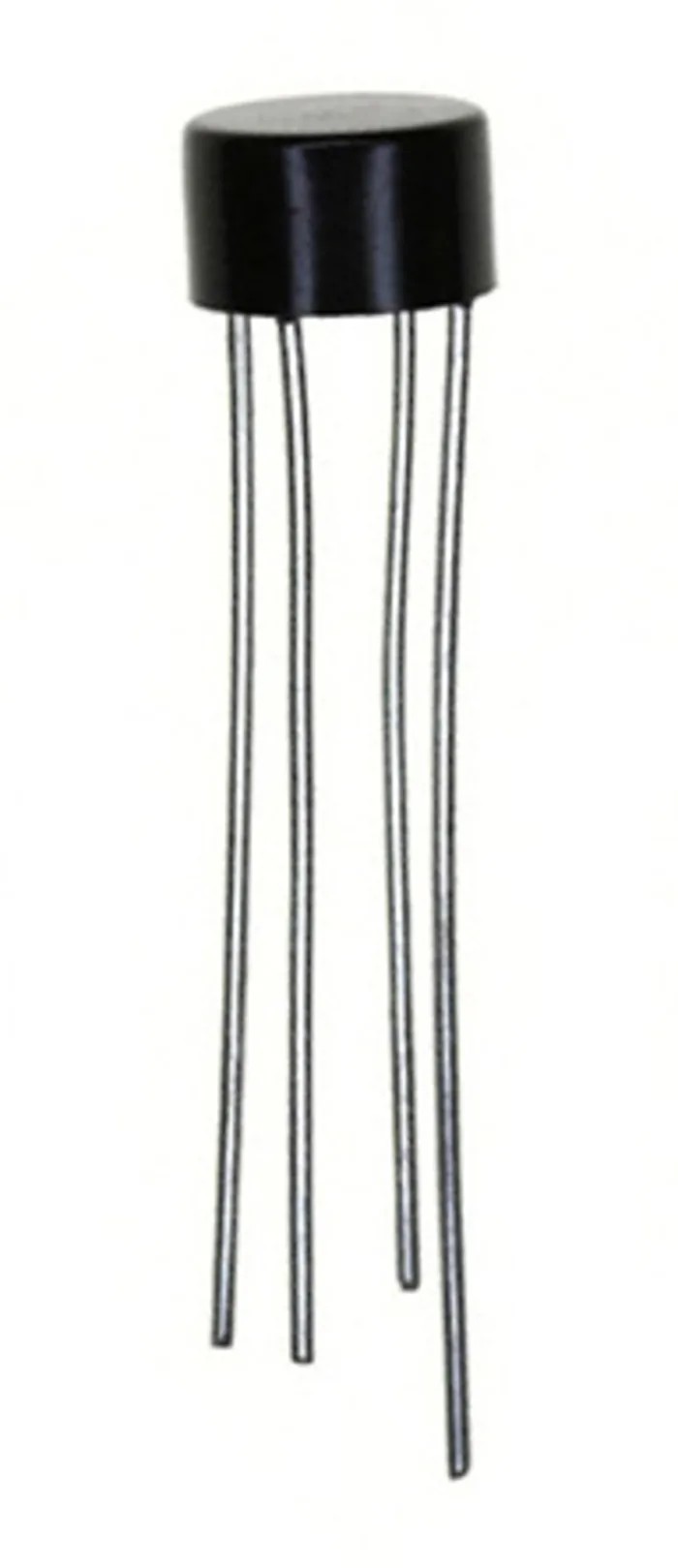

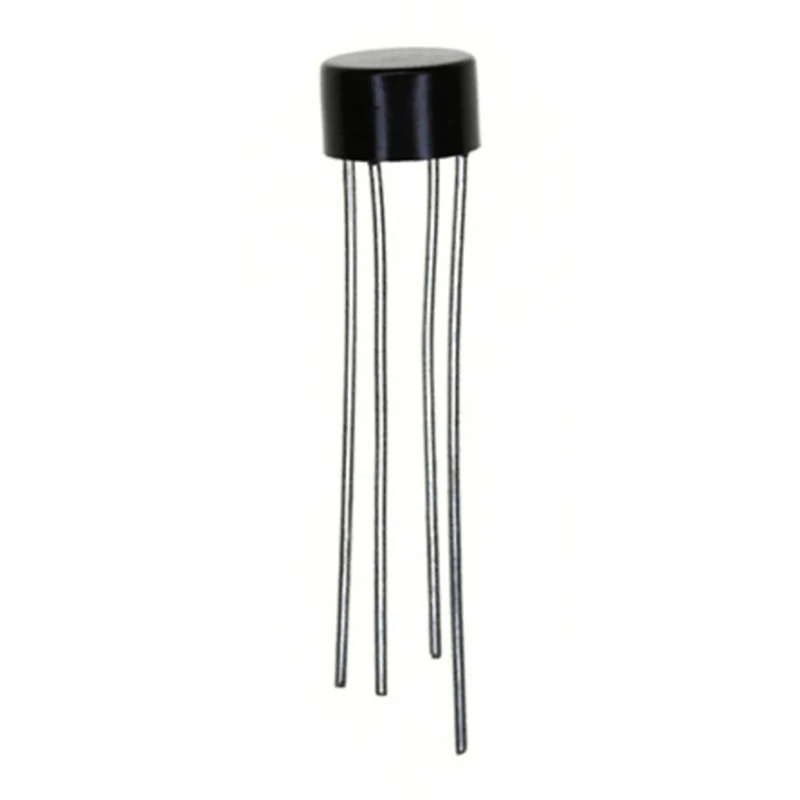

HY Electronic Corp Bridge Rectifier 600 V 50 A 4-Pin Single WO Series W06G
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | W06G |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | WOXG |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | WOG |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1.5A |
| Peak Forward Voltage Vf | 1V |
| WO/WOM Series | Silicon Passivated Bridge Rectifiers |
| WOxG/WOxMG Series | Glass passivated Bridge Rectifiers |
| Surge overload rating | -40 A peak |
Key Features
- The device supports a peak non-repetitive forward surge current of 50 A.
- It operates efficiently within a wide temperature range from -55°C to 150°C.
- This rectifier features a through-hole mount type with a WOG package.
- The compact dimensions include 9.86 mm length and 8.84 mm width.
- Glass passivated construction ensures high reliability and durability.
- No automotive standard approvals apply, suited for general electronic applications.
- Peak forward voltage drop is 1 V with a peak reverse current of 5 μA.
- Ideal for printed circuit board applications requiring AC to DC conversion.
Product Description
HY Electronic Corp W06G bridge rectifier is a through-hole mounted discrete semiconductor device designed for power conversion applications. It offers a peak reverse repetitive voltage (VRRM) of 600 V and a 1.5 A forward current, supporting a peak non-repetitive forward surge current of 50 A. Its robust glass passivated WO series design improves device longevity and stability under surge conditions.
The bridge rectifier is built to operate over a wide thermal range between -55°C minimum and 150°C maximum operating temperature, making it suitable for demanding industrial and electronic environments. The compact size with a length of 9.86 mm, width of 8.84 mm, and height of 5.6 mm facilitates efficient PCB mounting in dense circuit layouts.
The device has four pins configured as a single-phase rectifier, optimized for converting alternating current (AC) to direct current (DC) with peak forward voltage of 1 V and minimal leakage currents (peak reverse current of 5 μA).
Commonly used in power supply modules, motor controllers, and other electronic equipment, this rectifier is ideal for industrial electronics requiring reliable AC/DC conversion. It does not carry automotive-specific certifications but fulfills standard semiconductor quality requirements.
The device features glass passivation for enhanced reliability. It is suitable for mounting on printed circuit boards through standard through-hole techniques. Designed for surge overload conditions with a peak rating of 40 A.
Package type WOG helps in stable mounting and electrical insulation. Manufactured in China under the HY Electronic brand. Explore more semiconductor products and Bridge Rectifiers in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage (VRRM) of this bridge rectifier is 600 V.
This model can operate at a maximum temperature of 150°C.
It supports a peak non-repetitive forward surge current of 50 A.
The forward current rating is 1.5 A, which is significantly lower than the peak surge current rating of 50 A.
The dimensions of this rectifier are 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height.
This model features a through-hole mount type for easy PCB installation.
The peak forward voltage drop is 1 V.
The peak reverse current is rated at 5 μA.
It is configured as a single-phase rectifier with four pins.
This rectifier belongs to the WOXG series.
It is manufactured in China under the HY Electronic brand.
It is commonly used in power supply modules, motor controllers, and other electronic equipment requiring AC to DC conversion.
