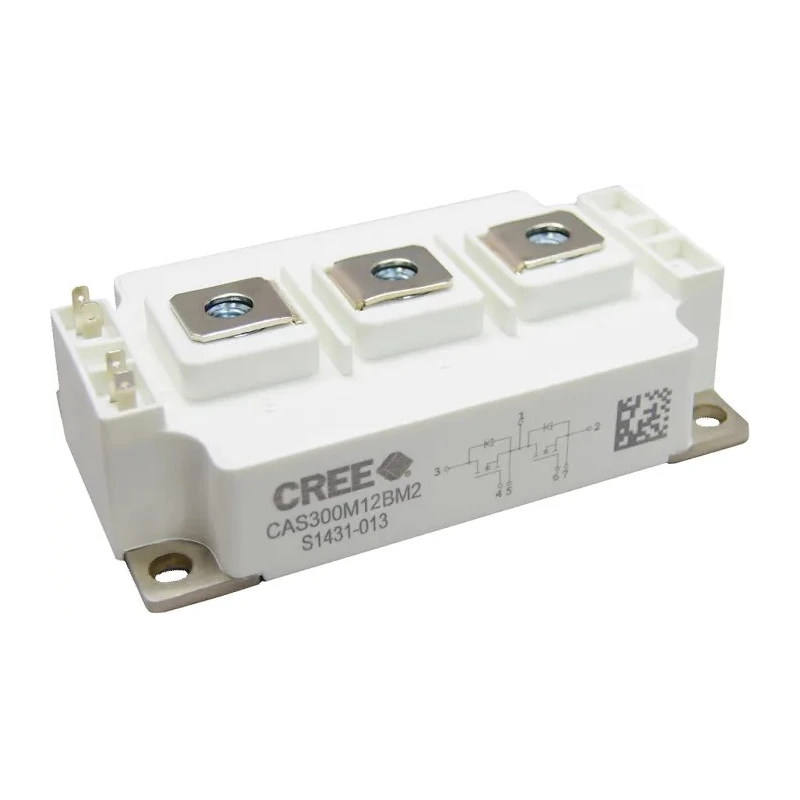

Wolfspeed N-Channel Power MOSFET 404 A, 1200 V Enhancement Mode, 7-Pin Module CAS300M12BM2

Free Delivery in India | Lowest Global Shipping Charges

Wolfspeed N-Channel Power MOSFET 404 A, 1200 V Enhancement Mode, 7-Pin Module CAS300M12BM2

Name: Wolfspeed N-Channel Power MOSFET 404 A, 1200 V Enhancement Mode, 7-Pin Module CAS300M12BM2
Brand: Wolfspeed
SKU: 136574
Price: 1281.61 USD
Availability: InStock



Category Power MOSFET Brand Wolfspeed Condition New

Specifications

Country of Origin	India
Brand	Wolfspeed
Height	30mm
Length	106.4mm
Model	CAS300M12BM2
Width	61.4mm
Mount Type	Screw
Minimum Operating Temperature	150°C
Pin Count	7
Channel Type	N
Maximum Continuous Drain Current Id	404A
Maximum Drain Source Voltage Vds	1200V
Maximum Drain Source Resistance Rds	9.8mΩ
Channel Mode	Enhancement
Maximum Power Dissipation Pd	1.66kW
Typical Gate Charge Qg @ Vgs	1025nC
Maximum Gate Source Voltage Vgs	-10, +25V
Forward Voltage Vf	2.5V
Transistor Configuration	Series

Key Features

This module employs enhancement mode operation for normally off, fail-safe performance.
It supports a maximum power dissipation of 1.66 kW ensuring robust thermal handling.
The device includes a screw mount type with a compact form factor of 106.4 mm length, 61.4 mm width, and 30 mm height.
Typical gate charge is 1025 nC at 10 V gate voltage, enabling efficient switching.
The forward voltage is rated at 2.5 V aiding in low conduction losses.
Designed for use at high maximum operating temperatures up to 150°C for demanding industrial applications.
The maximum drain-source resistance of 9.8 milliohms allows high efficiency in power conversion.

Product Description

Wolfspeed CAS300M12BM2 is a high-performance N-Channel Power MOSFET module optimized for industrial and power electronics applications requiring high efficiency and reliability. It supports a continuous drain current of 404 A with a maximum voltage rating of 1200 V, housed in a 7-pin module designed for secure screw mounting.

The device operates in enhancement mode, providing normally-off transistor configuration ensuring safe operation under fault conditions. It boasts a low maximum drain-source resistance of 9.8 milliohms, contributing to reduced conduction losses and improved power efficiency.

Typical gate charge of 1025 nC at 10 V gate voltage facilitates fast switching speeds while minimizing switching losses. The forward voltage of 2.5 V also helps reduce power dissipation during conduction.

The module is designed for robust thermal performance with a maximum operating temperature of 150°C and maximum power dissipation of 1.66 kW. Its compact dimensions of 106.4 mm length, 61.4 mm width, and 30 mm height make it suitable for tight industrial assemblies.

Applications include induction heating, solar and wind inverters, DC-DC converters, three-phase power factor correction, line regeneration drives, uninterruptible power supplies, motor drives, and battery chargers. Wolfspeed silicon carbide technology offers ultra-low loss high-frequency operation and ease of paralleling due to its inherent SiC properties.

This module offers enhancement mode, normally-off operation for enhanced safety. Ultra low loss and high-frequency operation benefits power electronics design. Copper baseplate and aluminium nitride insulator reduce thermal requirements.

Compact 7-pin design for industrial mounting ease. Suitable for high temperature and high power dissipation environments. Ideal for renewable energy and motor drive applications. Explore more from Wolfspeed power semiconductor modules in the Electronics & Electricals > Semiconductor > Power MOSFET category at EnvMart.
