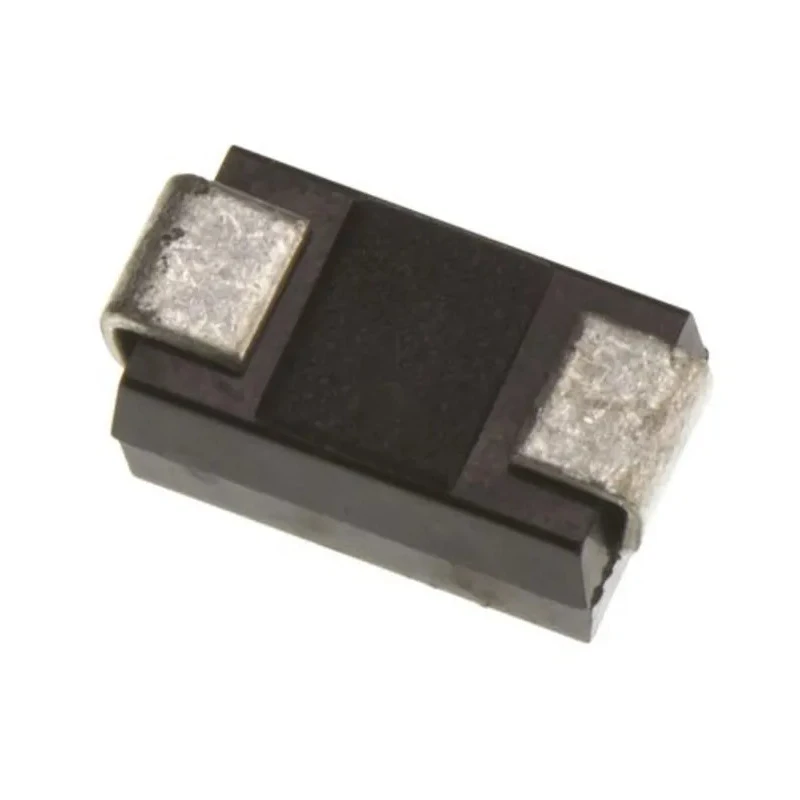

onsemi Schottky Diode 20 V 1 A Surface Mount DO-214AC Package SS12
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.2mm |
| Length | 4.75mm |
| Model | SS12 |
| Width | 2.95mm |
| Mount Type | Surface |
| Series | SS12 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 500mV |
| Vishay 20 V 1 A Diode Schottky 2-Pin DO-214AC SS12-E3/5ATBrand | Vishay |
Key Features
- Maximum continuous forward current of 1 A for reliable performance.
- Peak reverse repetitive voltage of 20 V for stable operation.
- Surface mount DO-214AC package with compact dimensions.
- Maximum forward voltage of 500 mV minimizing power loss.
- Operational temperature range from -65°C to 125°C suitable for varied environments.
- Peak non-repetitive forward surge current up to 40 A for transient protection.
- Low peak reverse current of 10 mA to reduce leakage losses.
- Designed for efficient power conversion in electronic circuits.
Product Description
onsemi SS12 Schottky Diode is a high-quality discrete semiconductor component designed for power and signal rectification in electronic circuits. This surface mount diode, housed in a compact DO-214AC package, offers a maximum continuous forward current of 1 ampere and can withstand a peak reverse repetitive voltage of 20 volts, ensuring durability and efficiency in demanding applications.
The diode features a low forward voltage drop of 500 millivolts, which reduces power consumption and heat generation during operation. Its peak non-repetitive forward surge current rating of 40 amperes provides protection against short-term current spikes, enhancing circuit reliability.
With operational temperature capabilities ranging from -65°C to 125°C, the SS12 diode performs well in both industrial and commercial electronic environments. Its low peak reverse current of 10 milliamperes minimizes leakage current, improving overall efficiency.
The package dimensions are compact, with length measuring 4.75 mm, width 2.95 mm, and height 2.2 mm, making it suitable for space-constrained PCB layouts. This Schottky diode is ideal for use in power supply circuits, voltage clamping, signal demodulation, and rectification tasks in industrial, automation, and consumer electronics.
Maximum continuous forward current of 1 A for reliable performance. Peak reverse repetitive voltage of 20 V for stable operation. Surface mount DO-214AC package with compact size. Low maximum forward voltage of 500 mV reducing power loss.
Operational temperature range from -65°C to 125°C for diverse uses. Peak non-repetitive forward surge current of 40 A for transient protection. Low peak reverse current of 10 mA to minimize leakage. Compact dimensions enable use in space-limited electronic assemblies.
Widely used in industrial, commercial, and consumer electronics applications. Explore our extensive range of semiconductor components including Schottky diodes at EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 A.
It has a peak reverse repetitive voltage rating of 20 V.
The dimensions of the DO-214AC package are 4.75 mm in length, 2.95 mm in width, and 2.2 mm in height.
The operational temperature range is from -65°C to 125°C.
The maximum forward voltage drop is 500 mV.
It can handle a peak non-repetitive forward surge current of up to 40 A.
The peak reverse current is 10 mA.
This model uses surface mount technology.
This diode has 2 pins.
It is a single diode configuration.
This Schottky diode is suitable for power supply circuits, voltage clamping, signal demodulation, and rectification tasks in various electronic applications.
The country of origin for this diode is India.
