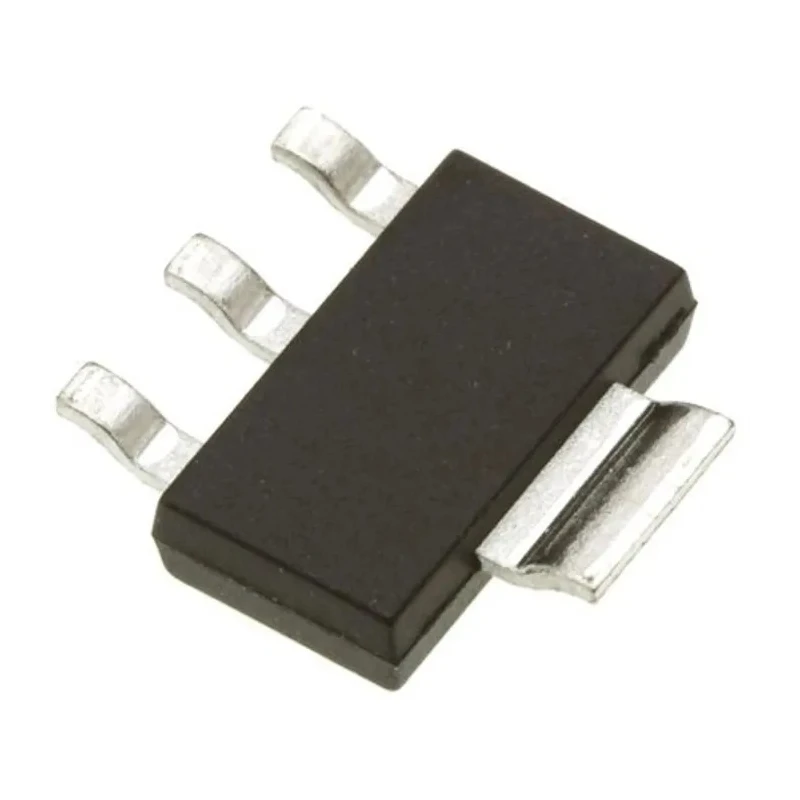

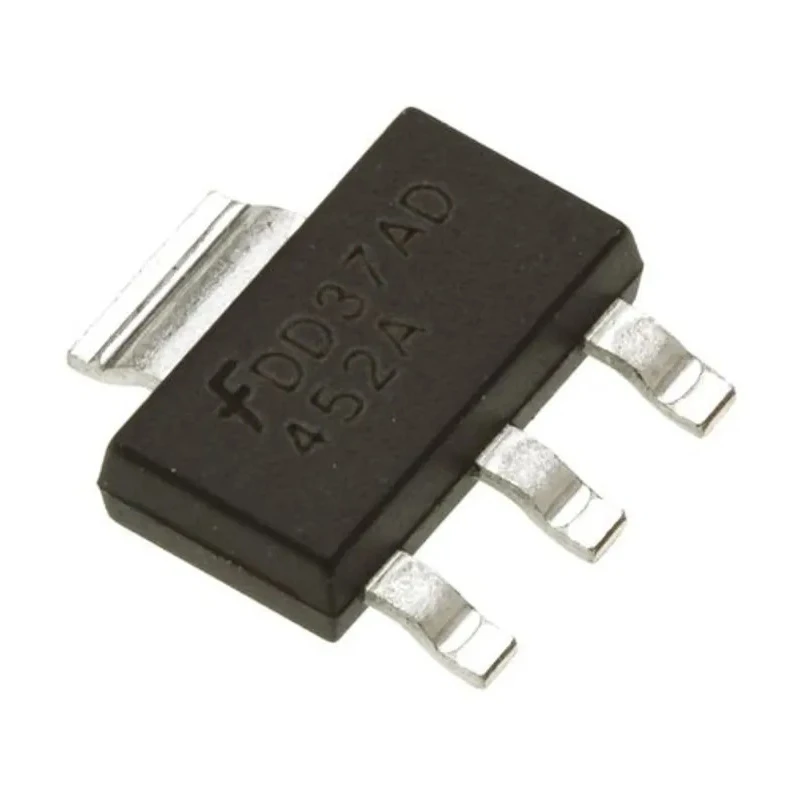

onsemi Small Signal NPN Transistor 500 mA 80 V 4-Pin SOT-223 PZTA06

Free Delivery in India | Lowest Global Shipping Charges

onsemi Small Signal NPN Transistor 500 mA 80 V 4-Pin SOT-223 PZTA06

Name: onsemi Small Signal NPN Transistor 500 mA 80 V 4-Pin SOT-223 PZTA06
Brand: onsemi
SKU: 136059
Price: 0.24 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.8mm
Length	6.7mm
Model	PZTA06
Width	7.3mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-55°C
Pin Count	4
Maximum Collector Emitter Voltage Vceo	80V
Minimum DC Current Gain hFE	100
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	4V
Maximum Collector Base Voltage VCBO	80V
Maximum Power Dissipation Pd	1W
Maximum DC Collector Current Idc	500mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz

Key Features

Maximum DC collector current of 500 mA for reliable performance.
Collector-emitter voltage rating of 80 V suitable for medium power applications.
Compact 4-pin SOT-223 surface mount package enhances thermal performance.
Minimum DC current gain (hFE) of 100 ensures efficient amplification.
Wide operating temperature range from -55°C to 150°C for industrial environments.
Maximum power dissipation of 1 W for sustained operation.
High transition frequency (ft) of 100 MHz supports high-frequency circuits.
Transistor polarity is NPN, compatible with common BJT circuits.

Product Description

onsemi PZTA06 is a small signal NPN bipolar junction transistor (BJT) designed with a maximum collector current of 500 mA and a collector-emitter voltage of 80 V. Packaged in a 4-pin SOT-223 surface mount format, it offers a compact solution for applications requiring reliable switching and amplification in electronic circuits.

This transistor features a minimum current gain (hFE) of 100 and a high transition frequency of 100 MHz, making it suitable for medium-frequency analog and switching applications. It can dissipate up to 1 watt of power reliably and operates efficiently over a wide temperature range of -55°C to 150°C, providing robustness in various industrial, communication, and consumer electronics environments.

The device’s compact dimensions (height 1.8 mm, length 6.7 mm, width 7.3 mm) and surface mount package allow for optimized PCB space usage and enhanced thermal management. The 4-pin configuration supports easy integration into surface mount technology (SMT) assembly processes.

Typical use cases include general-purpose amplification and switching tasks in circuits where dependable small signal transistors are required. Industrial electronics, telecommunication devices, and power management circuits can benefit from the characteristics of this NPN transistor.

Maximum DC collector current of 500 mA for reliable performance. Collector-emitter voltage rating of 80 V suitable for medium power applications. Compact 4-pin SOT-223 surface mount package enhances thermal performance. Minimum DC current gain (hFE) of 100 ensures efficient amplification.

Wide operating temperature range from -55°C to 150°C for industrial environments. Maximum power dissipation of 1 W for sustained operation. High transition frequency (ft) of 100 MHz supports high-frequency circuits. Transistor polarity is NPN, compatible with common BJT circuits.

Physical dimensions: height 1.8 mm, length 6.7 mm, and width 7.3 mm. Explore more on Bipolar Transistors in the Electronics & Electricals category at EnvMart for advanced semiconductor solutions.
