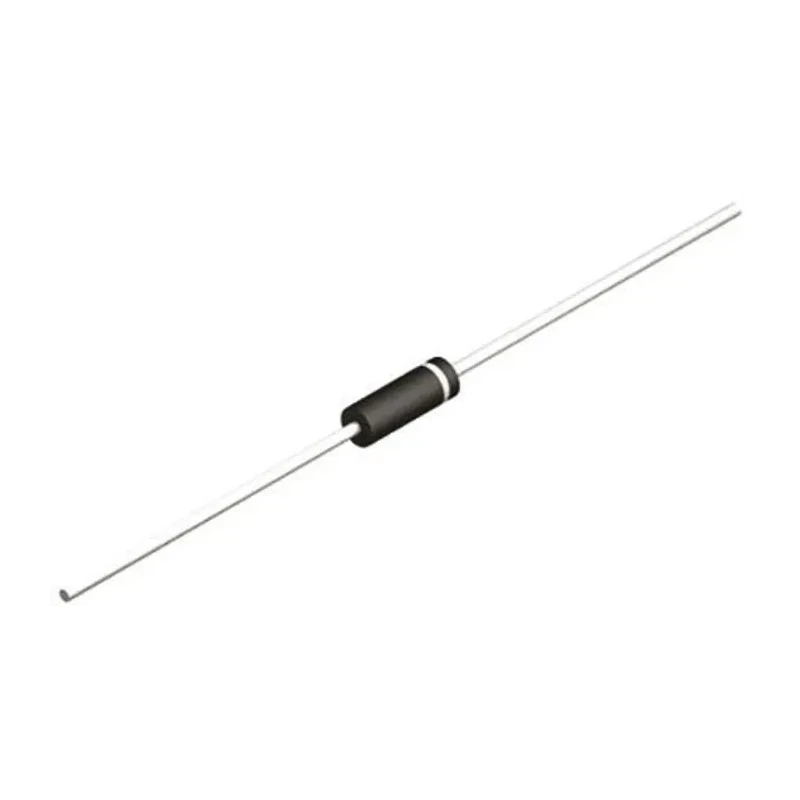

Vishay 1-Element Uni-Directional TVS Diode, 1.5 kW, 2-Pin, Through Hole Mount 1N6280A-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1-Element Uni-Directional TVS Diode, 1.5 kW, 2-Pin, Through Hole Mount 1N6280A-E3/54

Name: Vishay 1-Element Uni-Directional TVS Diode, 1.5 kW, 2-Pin, Through Hole Mount 1N6280A-E3/54
Brand: Vishay
SKU: 136021
Price: 0.81 USD
Availability: InStock



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	5.3mm
Brand	Vishay
Height	5.3mm
Length	9.5mm
Model	1N6280A-E3/54
Width	5.3mm
Mount Type	Through Hole
Series	1N6-A
Maximum Operating Temperature	175°C
Package Type	1.5KE
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	33.2V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	22.8V
Maximum Reverse Stand-off Voltage Vwm	20.5V
Peak Pulse Power Dissipation Pppm	1.5kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	45.2A
Maximum Reverse Leakage Current	1μA

Key Features

Provides effective transient voltage suppression at peak pulse power of 1.5 kW.
Configured as a single diode with uni-directional direction type for reliable polarity protection.
Minimum breakdown voltage of 22.8 V with maximum reverse stand-off voltage of 20.5 V.
Clamping voltage of 33.2 V and ESD protection enabled.
Operates reliably from -55°C up to 175°C for harsh environmental conditions.
Compact axial package type 1.5KE with 2 pins facilitates through hole mounting.
Maximum peak pulse current rating of 45.2 A ensures robust transient suppression.
Compliant with automotive standard AEC-Q101, suitable for automotive and industrial applications.

Product Description

Vishay 1N6280A-E3/54 is a high-performance uni-directional transient voltage suppressor (TVS) diode engineered for protecting sensitive electronics from transient voltage spikes. This single-element diode provides a peak pulse power dissipation of 1.5 kW, ensuring effective suppression of voltage spikes and surges in power supply lines.

Its axial 1.5KE package with through hole mount and 2 pins facilitates easy PCB integration. The diode offers a minimum breakdown voltage of 22.8 V and a maximum reverse stand-off voltage of 20.5 V, clamping voltage at 33.2 V to safeguard circuits.

The device has a maximum peak pulse current of 45.2 A and includes ESD protection, enabling resilience against electrostatic discharges in automotive and industrial environments.

Operational temperature range spans from -55°C to 175°C, making it suitable for harsh conditions. It conforms to the automotive standard AEC-Q101, enhancing reliability in automotive applications.

Compact dimensions (length 9.5 mm, diameter and width 5.3 mm) allow for space-saving PCB layouts while maintaining robust protection performance. Provides 1.5 kW peak pulse power dissipation for transient voltage suppression.

Uni-directional diode configuration protects circuitry from voltage spikes. Wide temperature operation from -55°C to 175°C ensures reliability. Automotive standard AEC-Q101 compliant for automotive-grade applications. Compact axial package with 2 pins supports through hole mounting.

Clamping voltage of 33.2 V limits transient voltage peaks. Maximum peak pulse current of 45.2 A supports high surge currents. Minimum breakdown voltage at 22.8 V ensures precise voltage protection. Manufactured in China with new condition for quality assurance.

This Vishay TVS Diode suits applications in automotive systems, industrial electronics, power supplies, and protection circuits requiring reliable transient voltage suppression. EnvMart offers this diode as part of the Semiconductor product range, ideal for engineers and designers requiring high-quality, robust surge protection components.
