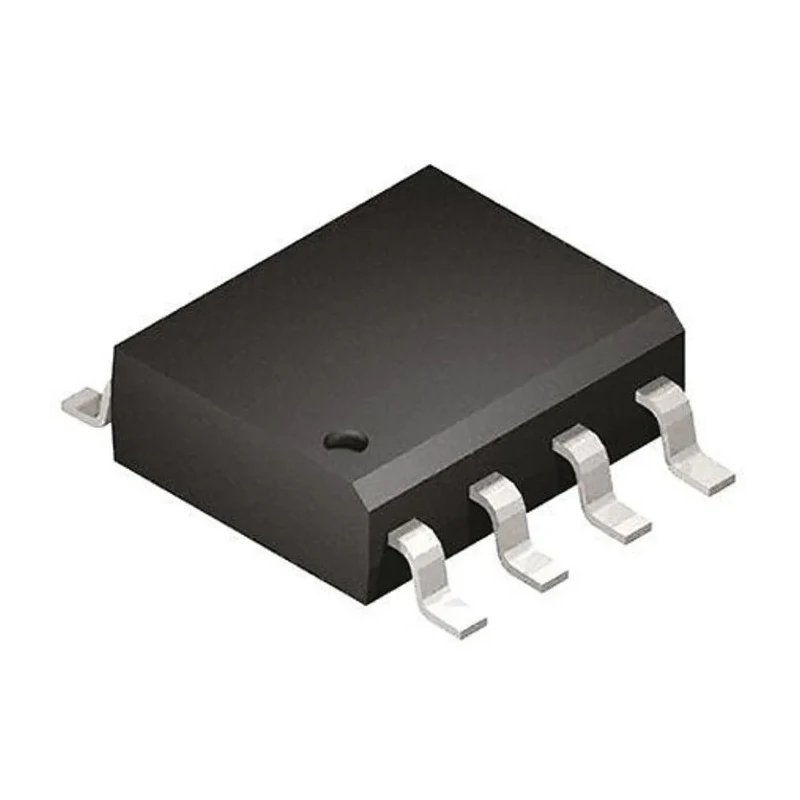

onsemi Operational Amplifier Dual Channel 8-Pin SOIC 3.2 MHz Gain Bandwidth 36V NCS20072DR2G
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 5mm |
| Model | NCS20072DR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCS20072 |
| Output Current | 70mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 3.2MHz |
| Input Bias Current | 1500 pA |
| Vos - Input Offset Voltage | ±4 mV |
| Slew Rate | 2.8V/μs |
| Input Offset Current | 1000 pA |
| Low supply current | 405 μA per channel |
Key Features
- Supports supply voltage range from 2.7 V to 36 V for versatile power applications.
- Featuring low supply current of 405 μA per channel for energy efficient operation.
- High slew rate of 2.8 V/μs ensures fast response to input changes.
- Compact SOIC package with dimensions 5 mm length, 4 mm width, and 1.5 mm height.
- Includes automotive standard AEC-Q100 compliance for high reliability in automotive electronics.
- Operates optimally between temperatures of -40°C to 125°C for industrial use cases.
- 8 pins and 2 channels with output current capability up to 70 mA.
- Input offset voltage of ±4 mV and input bias current around 1500 pA maintain signal accuracy.
Product Description
onsemi NCS20072DR2G is a precision dual operational amplifier in an 8-Pin SOIC package designed for versatile analog circuit applications. With a gain bandwidth product of 3.2 MHz, this device supports high-speed amplification tasks in industrial, automotive, and consumer electronics.
The amplifier operates within a wide supply voltage range from 2.7 V to 36 V and features a low supply current of 405 μA per channel. Its high slew rate of 2.8 V/μs enables rapid output signal changes, suitable for fast and accurate signal processing.
This operational amplifier meets the automotive standard AEC-Q100, ensuring reliability under demanding conditions often required in vehicular systems. It maintains stable performance across an extended temperature range from -40°C to 125°C, making it suited for harsh environments.
The compact SOIC package measures 5 mm in length, 4 mm in width, and 1.5 mm in height, facilitating integration on space-constrained PCBs. It provides dual channels with 8 pins and an output current of 70 mA, enabling flexible circuit designs.
Additional electrical characteristics such as an input offset voltage of ±4 mV and an input bias current of approximately 1500 pA contribute to precise and reliable amplification in signal conditioning tasks.
Supports supply voltage range from 2.7 V to 36 V for versatility. Low supply current enhances energy efficiency in applications. High slew rate allows fast response to rapid signal changes. Compact package suitable for dense circuit layouts.
Automotive standard compliance ensures reliability in demanding environments. Wide operating temperature range for industrial robustness. Dual channels with stable output current performance. Precise input offset and bias currents for accuracy.
This Operational Amplifier is ideal for industrial controls, instrumentation, automotive electronics, and general analog signal processing needs. Explore a wide range of onsemi products available at EnvMart to enhance your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NCS20072DR2G operational amplifier is 3.2 MHz, making it suitable for high-speed amplification tasks.
It supports a supply voltage range from 2.7 V to 36 V, allowing for versatility in various power applications.
This model can deliver an output current of up to 70 mA, enabling flexible circuit designs.
It operates optimally between -40°C to 125°C, making it suitable for industrial applications in harsh environments.
The compact SOIC package measures 5 mm in length, 4 mm in width, and 1.5 mm in height, facilitating integration on space-constrained PCBs.
The low supply current is 405 μA per channel, enhancing energy efficiency in applications.
It features a high slew rate of 2.8 V/μs, ensuring fast response to input changes.
The NCS20072DR2G has 2 channels, allowing for dual-channel applications.
The input offset voltage is ±4 mV, contributing to signal accuracy in amplification tasks.
It complies with the automotive standard AEC-Q100, ensuring reliability in automotive electronics.
The input bias current is approximately 1500 pA, which helps maintain signal integrity.
This model is designed for surface mounting, suitable for various PCB applications.
