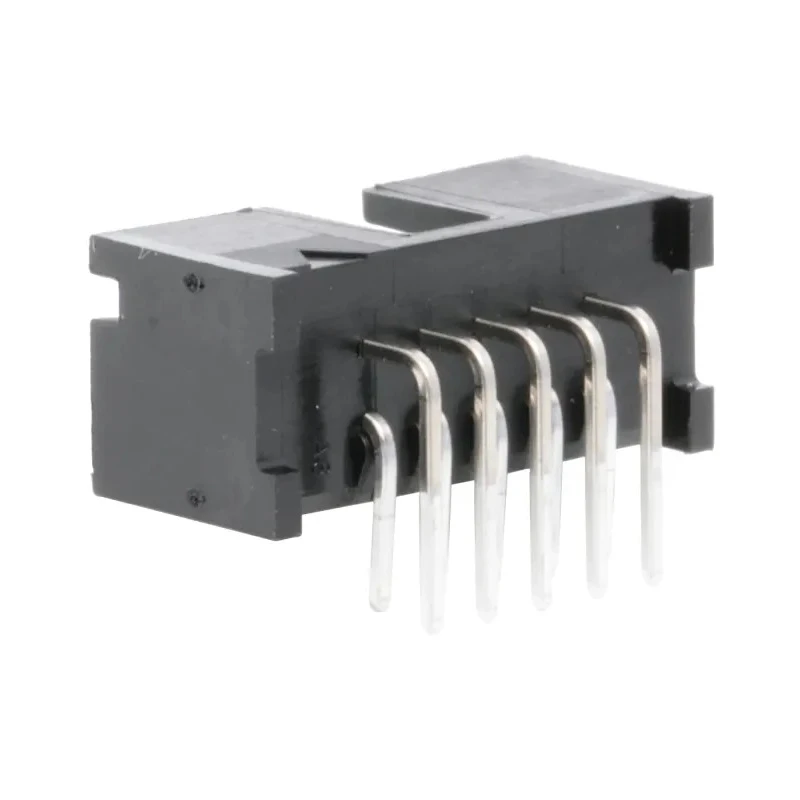

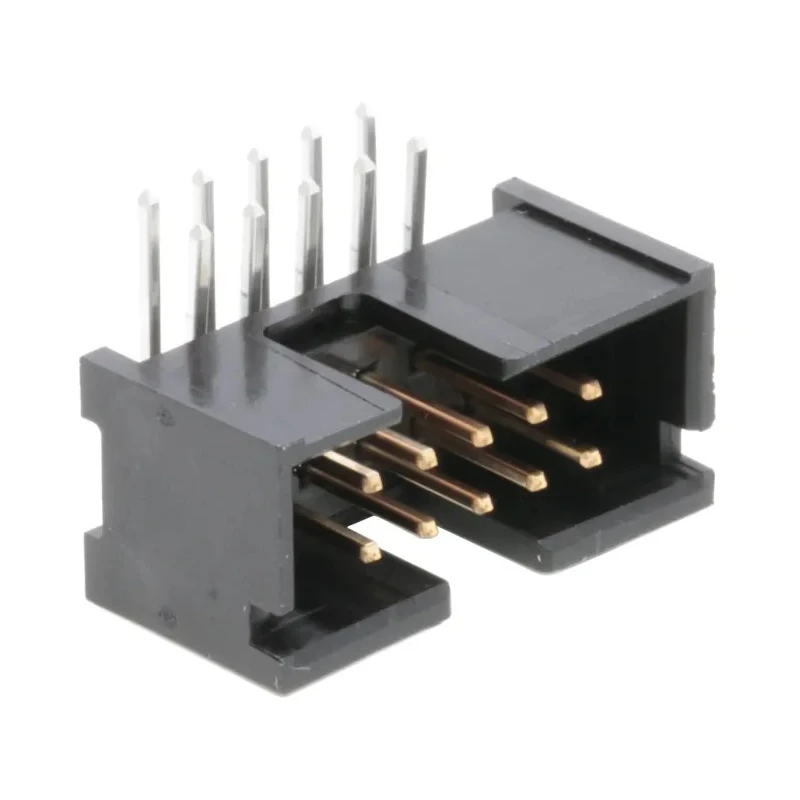

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, Shrouded 5103310-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.43mm |
Key Features
- Designed for reliable wire-to-board connections through a right angle through-hole mount.
- Housing made from durable polybutylene terephthalate for enhanced mechanical stability.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- Suitable for operating temperatures ranging from -65°C up to 105°C.
- Supports a maximum voltage rating of 250V and current rating of 1A for electronic applications.
- Termination is solder type, with a tail pin length of 3.43 mm for secure PCB insertion.
- Complies with DIN 41651 and DIN EN 60352 standards for PCB connectors.
- Shrouded design offers improved protection against mechanical damage and misalignment.
Product Description
TE Connectivity 5103310-1 AMP-LATCH Series Right Angle Through Hole PCB Header is an industrial-grade connector tailored for robust wire-to-board interconnection applications. Featuring a 2-row, shrouded design with 10 male contacts at a precise 2.54 mm pitch, this component ensures efficient space utilization while providing dependable electrical connectivity.
Constructed with a polybutylene terephthalate housing, it offers high mechanical resilience and thermal stability, suitable for harsh electronic environments. The copper alloy contacts plated with gold deliver superior conductivity, corrosion resistance, and long-term reliability.
Engineered to operate over a wide temperature range from -65°C to 105°C, this PCB Header supports currents up to 1A and voltages of 250V, making it ideal for various industrial, electronics manufacturing, and assembly applications.
The solder termination and 3.43 mm tail pin length facilitate secure mounting on PCB assemblies through a right angle through-hole method, allowing simplified installation and improved production efficiency. The shrouded design protects contacts from damage and prevents misalignment during assembly.
Reliable wire-to-board connections with right angle through-hole mount. Polybutylene terephthalate housing for durability and heat resistance. Gold-plated copper alloy contacts providing excellent electrical performance.
Wide operating temperature range of -65°C to 105°C. Voltage rating of 250V and current rating of 1A for versatile applications. Solder termination with 3.43 mm tail pin length for secure PCB insertion. Shrouded 2-row design enhancing protection and alignment.
Compliant with DIN 41651 and DIN EN 60352 standards. This connector is suitable for industrial electronics manufacturing, assembly lines, industrial control systems, and applications requiring robust and reliable PCB connections.
Explore EnvMart's extensive range of electronics and electrical components to complement your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this PCB header is 250V.
This connector has a current rating of 1A.
The pitch size of the contacts is 2.54 mm.
The housing is made from polybutylene terephthalate, and the contacts are made of copper alloy with gold plating.
It operates over a wide temperature range from -65°C to 105°C.
This model features 10 male contacts.
The termination type is solder.
The tail pin length is 3.43 mm.
Yes, it complies with DIN 41651 and DIN EN 60352 standards for PCB connectors.
The orientation of this connector is right angle.
It utilizes a through hole mount type.
This connector is suitable for industrial electronics manufacturing, assembly lines, and industrial control systems.
