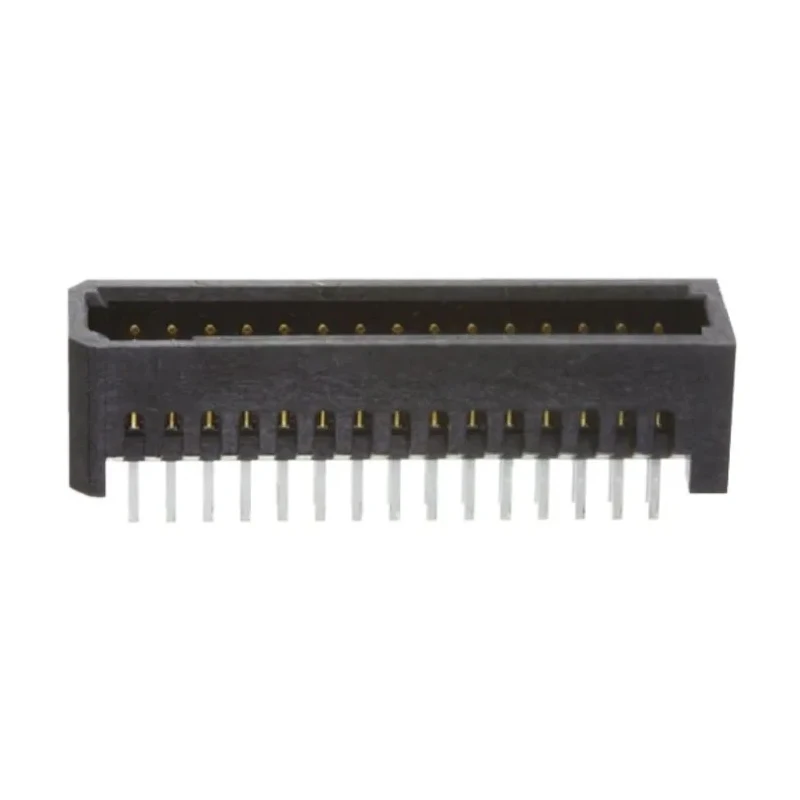

Samtec TFM Series Straight Through Hole PCB Header, 14 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-107-01-L-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec TFM Series Straight Through Hole PCB Header, 14 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-107-01-L-D

Name: Samtec TFM Series Straight Through Hole PCB Header, 14 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-107-01-L-D
Brand: Samtec
SKU: 366089
Price: 2.83 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Samtec
Orientation	Straight
Current	5A
Model	TFM-107-01-L-D
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TFM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
TFM-1xx-01-L-D	0.38 μm Gold plating on contact area and Matte Tin on tails
TFM-1xx-01-S-D-WT	0.76 μm Gold plating on contact area and Matte Tin on tails
TFM-1xx-01-L-D-RA	for Right Angle / Horizontal orientation

Key Features

Features a 1.27 mm pitch across 2 rows for compact mounting.
Constructed with Liquid Crystal Polymer housing for durability and stability.
Phosphor Bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
Rated for 5A current and 350V maximum voltage applications.
Shrouded design enhances connection reliability and protection.
Suitable for solder termination through-hole mount systems.
Operating temperature range from -55°C to 125°C for diverse environments.
Male contact gender with straight orientation for standard PCB integration.

Product Description

Samtec TFM Series Straight Through Hole PCB Header, model TFM-107-01-L-D, offers a high-quality solution for electronic component assembly requiring precision and durability. This PCB header features 14 gold-plated contacts arranged in 2 rows with a standard 1.27 mm pitch, making it ideal for compact board-to-board and wire-to-board connections.

Designed with a Liquid Crystal Polymer housing, this shrouded header provides excellent mechanical strength and thermal stability, supporting operational temperatures ranging from -55°C up to 125°C. The phosphor bronze contacts with 0.38 μm gold plating on the contact area and matte tin on tails ensure reliable electrical conductivity and corrosion protection.

Its 5A current rating and 350V voltage capacity make it suitable for varied industrial, electronic, and manufacturing applications. The straight orientation and through hole mount type support robust PCB assembly processes using solder termination. The shrouded design improves connector protection and alignment, enhancing overall connection performance and longevity.

This component is widely used in electronic manufacturing, industrial equipment, laboratory instrumentation, and power supply systems where reliable and compact PCB connectivity is critical.

14 contacts in 2 rows, 1.27 mm pitch for tight spacing and stable connections. High-quality Liquid Crystal Polymer housing ensures durability in harsh conditions. Gold-plated phosphor bronze contacts maximize conductivity and minimize wear.

Shrouded design protects contacts and facilitates safe mating. Supports solder termination with through-hole mounting for secure attachment. Wide temperature range suitable for electronic and industrial environments. 5A current and 350V voltage rating for versatile power handling.
