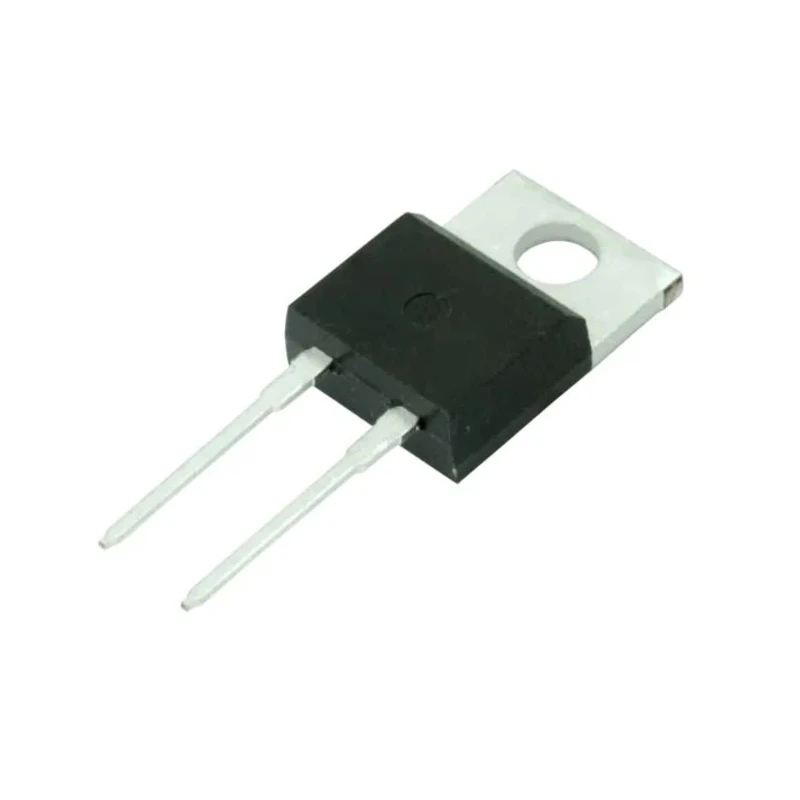

Vishay 650 V 16 A SiC Schottky Diode Through Hole TO-220AC 2L VS-C16ET07T-M3

Vishay VS-C16ET07T-M3 SiC Schottky Diode is a high-performance semiconductor device designed to provide efficient rectification with low forward voltage drop and fast switching characteristics. It is packaged in a TO-220AC 2L through-hole configuration with 3 pins, making it suitable for robust industrial, electronic, power supply, and automotive circuits requiring reliable Schottky diode performance.

This diode features a maximum continuous forward current rating of 16 A and a peak reverse repetitive voltage of 650 V, making it suitable for high-voltage and high-current applications. Utilizing Silicon Carbide (SiC) material, the diode achieves superior thermal performance with a maximum junction temperature of 175°C, enabling reliable operation in demanding environments.

Its positive forward voltage temperature coefficient allows easy parallel operation of multiple diodes. The virtually no recovery tail and absence of switching losses ensure low energy dissipation and high efficiency during high-speed switching. The MPS structure further enhances ruggedness against surge current events, increasing durability in transient conditions.

The 3-pin, through-hole TO-220AC 2L package facilitates straightforward mounting on PCBs for power converters, inverters, switch-mode power supplies, and other semiconductor applications where high-speed and high-efficiency rectification is required.

High ruggedness with SiC Merged PIN Schottky technology. Low forward voltage drop of 1.7 V enhances efficiency. Capable of handling 16 A continuous forward current. High peak reverse voltage tolerance of 650 V. Wide temperature operating range from -55°C to 175°C.

Fast switching behavior with no recovery tail or switching losses. Positive VF temperature coefficient supports paralleling. Robust MPS construction for surge current resilience.

This semiconducting device is widely utilized in industrial, power supply, automotive, and electronic circuits where high efficiency and reliability are critical. It is compliant with RoHS environmental standards but does not carry any specific automotive certification. It is classified under Schottky Diodes & Rectifiers category, providing advanced performance and dependable switching capacity for demanding applications.
