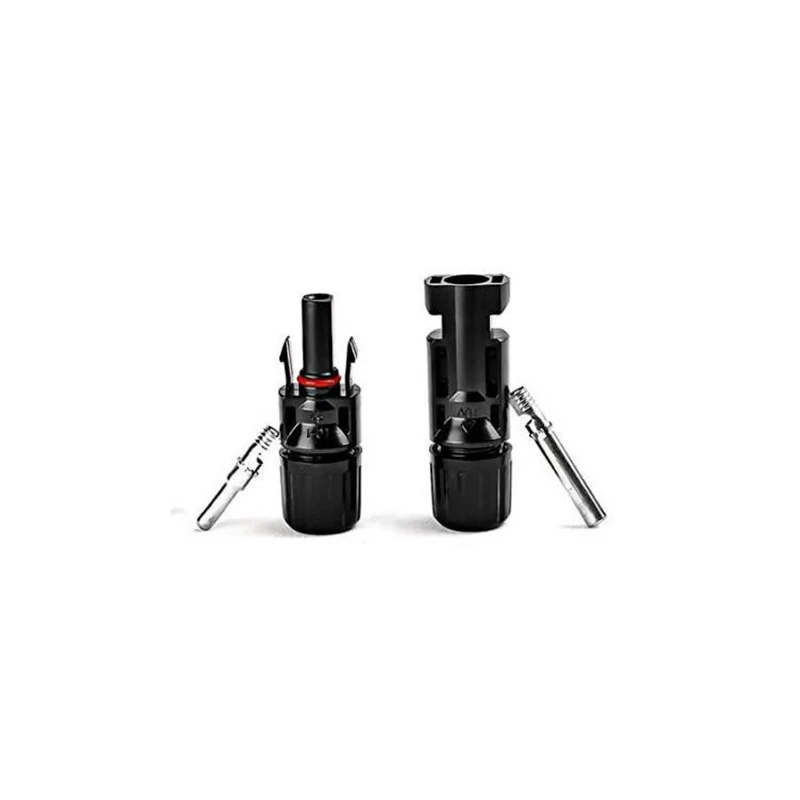

SUI Mc4 Connector for Solar Panel Black Pack of 10
Specifications
| Assembly Required | No |
|---|---|
| No. of units | 1 |
| Fragile | Yes |
| Contact Material | copper| tin plated |
| Packageing Content | MC4 connector for Solar Panels |
Key Features
- MC4 connector for Solar Panels
- Last as long as a solar panel for 25 years
Product Description
SUI Mc4 Connector for Solar Panel (Black) are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip that can ensure excellent electrical contact. Technical data: insulation material:pc rated current:30a rated voltage:1500v test voltage:6kv(50hz,1min) contact material: copper, tin plated contact resistance:3m degree of protection:ip67 safety class:ii flame calss:ul94-v0 insertion force: 50n withdrawal force: 50n ambient temperature range:-40~+85 suitable cable:2.5~6.0mm2awg14/12/1
- IP67 protection
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current of this connector is 30A, and the rated voltage is 1500V.
The contact material is copper that is tin plated, ensuring excellent electrical contact.
This model has an IP67 degree of protection, making it suitable for outdoor use.
The ambient temperature range for the SUI Mc4 connector is -40°C to +85°C.
Each pack contains 10 MC4 connectors for solar panels.
The insertion force is 50N, and the withdrawal force is also 50N.
No, assembly is not required for this connector.
This connector is suitable for cables ranging from 2.5 to 6.0 mm², or AWG 14/12/10.
The test voltage for this connector is 6kV at 50Hz for 1 minute.
The flame class rating is UL94-V0, indicating a high level of flame resistance.
The packaging content includes one MC4 connector for solar panels.
This connector is typically used to connect multiple solar panels or groups of solar panels together in parallel applications.
