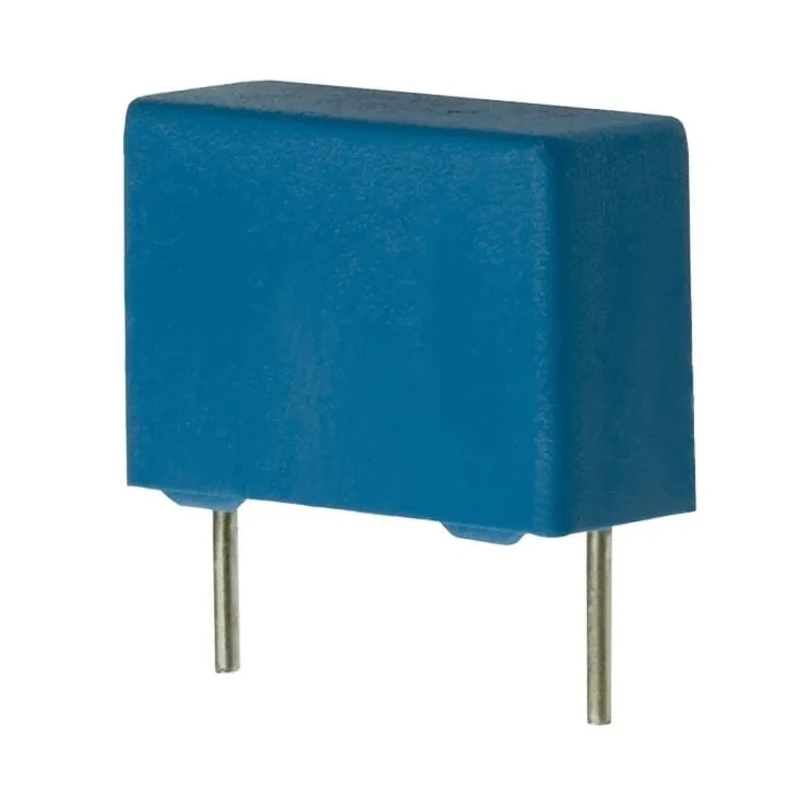

TDK Polypropylene Film Capacitor Rated 305V AC 305V DC Capacitance 330nF Through Hole Mount B32922C3334M189

Free Delivery in India | Lowest Global Shipping Charges

TDK Polypropylene Film Capacitor Rated 305V AC 305V DC Capacitance 330nF Through Hole Mount B32922C3334M189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	14mm
Length	18mm
Model	B32922C3334M189
Width	8mm
Mount Type	Through Hole
Series	B32922C
Maximum Operating Temperature	110°C
Capacitance	330nF
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	X2

Key Features

Constructed with polypropylene dielectric material for high reliability and stability.
Rated AC and DC voltage of 305 volts suitable for various electronic applications.
Compact dimensions of 18mm length, 14mm height, and 8mm width optimize PCB space.
Lead pitch of 15mm and lead diameter of 0.8mm ensure easy through-hole integration.
Maximum operating temperature of 110°C for durable performance under thermal stress.
Suppression class X2 suitable for EMI suppression and noise reduction in circuits.
Plastic case with epoxy sealing and lead-free tinned parallel wire leads supports RoHS compliance.

Product Description

TDK B32922C3334M189 polypropylene film capacitor features a high-quality polypropylene dielectric and is designed for reliable EMI suppression in electronic circuits. This capacitor is rated for 305V AC and 305V DC voltage operation, ideal for industrial and commercial electronic assemblies.

The component is housed in a plastic casing sealed with epoxy, providing strong resistance to environmental factors. The through-hole mount with a lead pitch of 15mm and lead diameter of 0.8mm allows straightforward installation on printed circuit boards. With dimensions of 18mm length, 14mm height, and 8mm width, it is compact to fit various PCB layouts.

It operates efficiently up to a maximum temperature of 110°C. The capacitor’s suppression class X2 rating makes it suitable for noise filtering and interference suppression in power supplies and signal processing applications.

Compliance with standards EN 60384-14:2014/A1:2016 and IEC 60384-14:2013/AMD1:2016 ensures adherence to quality and safety benchmarks. The capacitor contains lead-free tinned parallel wire leads supporting RoHS directives and environmental safety.

Constructed with polypropylene dielectric material for excellent electrical performance. Rated for 305V AC and 305V DC voltage applications. Compact through-hole design with 15mm lead pitch and 0.8mm lead diameter supports easy PCB mounting.

Maximum operating temperature of 110°C for robust performance in demanding environments. Suppression class X2 suitable for EMI filtering and noise reduction in electronic circuits. Plastic case and epoxy sealing provide mechanical and environmental protection.

Compliance with EN and IEC standards ensures quality and reliability. Lead-free tinned leads promote eco-friendly disposal per RoHS regulations.

This polypropylene film capacitor is widely used in industrial electronics, power supplies, HVAC controls, and other electronic assemblies requiring stable capacitance and EMI suppression.

Explore EnvMart’s extensive range of Film Capacitors to find complementary components and enhance your industrial electronic designs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The capacitance of this model is 330nF.

It is rated for 305V AC and 305V DC voltage operation.

The maximum operating temperature is 110°C.

The dimensions are 18mm in length, 14mm in height, and 8mm in width.

This model supports through-hole mounting.

The lead pitch is 15mm and the lead diameter is 0.8mm.

It has a suppression class of X2, suitable for EMI filtering and noise reduction.

It is constructed with polypropylene dielectric material and housed in a plastic case with epoxy sealing.

Yes, it complies with EN 60384-14:2014/A1:2016 and IEC 60384-14:2013/AMD1:2016 standards.

This model has a pin count of 2.

It is widely used in industrial electronics, power supplies, HVAC controls, and other electronic assemblies requiring stable capacitance and EMI suppression.
