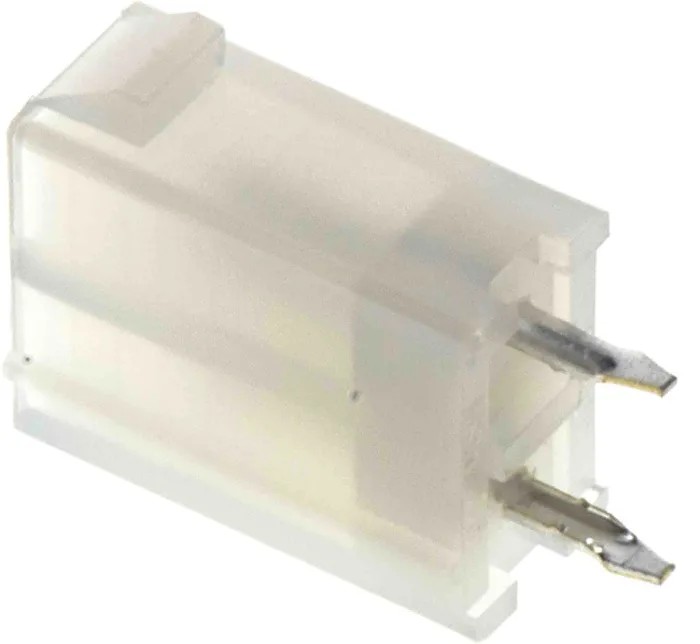

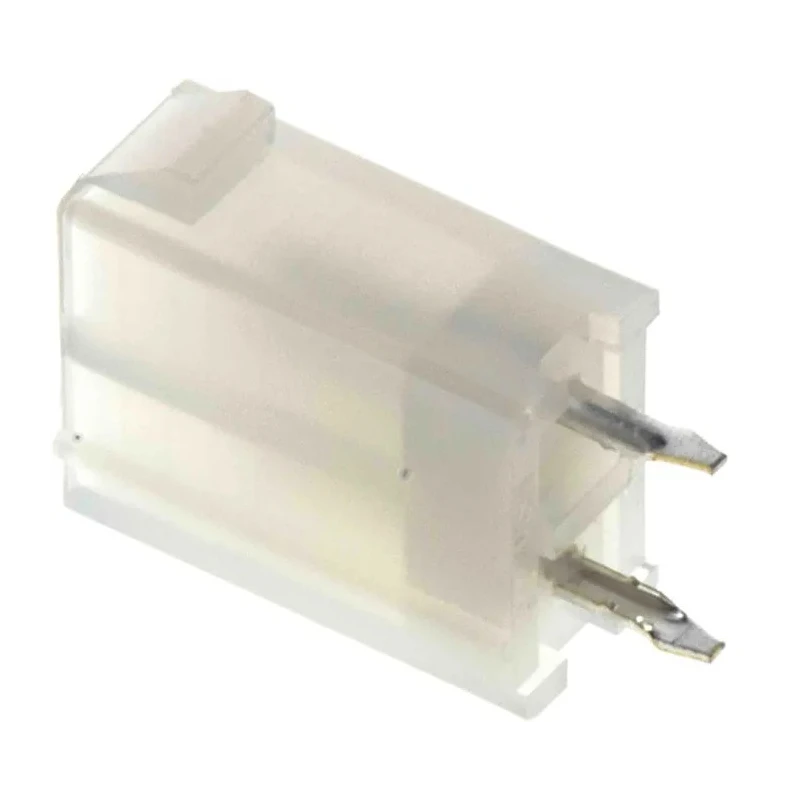

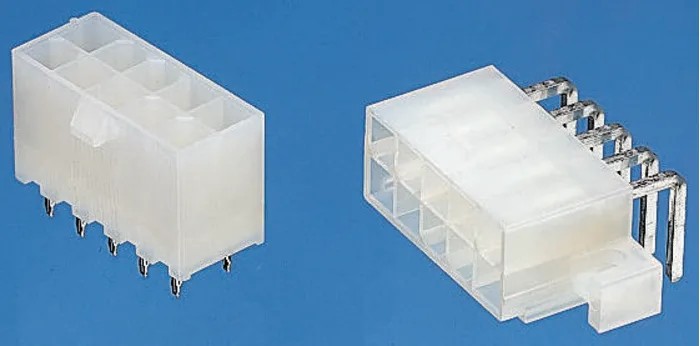

Molex Mini-Fit Jr PCB Header Right Angle Through Hole 24 Contacts 4.2 mm Pitch Shrouded 39-30-0240
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header supports up to 6A current per contact for reliable power delivery.
- Constructed with a durable nylon housing and brass contacts plated with tin for corrosion resistance.
- The male connector features fully isolated terminals to prevent debris interference and damage.
- Its scoop-proof housing protects contact pins during mating at severe angles.
- Includes polarization, keying, and a positive locking mechanism to ensure correct and secure mating.
- Rated for a maximum voltage of 600V and operating temperatures from -40°C to 105°C.
- Ideal for high current wire-to-board applications in industrial automation and consumer electronics.
- Manufactured in Mexico with new product condition assurance.
Product Description
Molex 39-30-0240 Mini-Fit Jr PCB Header is a robust right angle connector designed for through hole PCB mounting with 24 male contacts spaced at 4.2 mm pitch. The connector is shrouded to protect the contacts and enhance durability.
It features a nylon housing and brass contacts plated with tin, offering excellent electrical conductivity and mechanical resilience. The fully isolated terminals prevent short circuits caused by debris or mishandling.
The scoop-proof housing prevents damage to the pins during angled mating, ensuring longevity in demanding environments. Polarization and keying features help prevent incorrect mating, while a positive locking mechanism secures the connector firmly in place. An audible click confirms full engagement.
This PCB header supports a current rating of 6A per contact and can withstand voltages up to 600V, making it suitable for demanding power applications in consumer white goods, office equipment, industrial automation, networking hardware such as servers and routers, and other electronic devices requiring secure wire-to-board connection.
With a temperature operating range from -40°C to 105°C, it can perform reliably in varied environmental conditions. The product meets standard reliability parameters but does not carry specific approvals.
Manufactured in Mexico, this connector is sold new and ready for immediate integration into industrial, laboratory, and commercial electronic assembly applications. Supports up to 6A current per contact. Durable nylon housing with tin-plated brass contacts.
Fully isolated terminals for enhanced safety. Scoop-proof housing prevents pin damage. Polarization, keying, and positive locking ensure secure mating. 600V voltage rating and wide operating temperature range. Ideal for wire-to-board connections in industrial and consumer applications.
Explore more electronics components and precise PCB Headers at EnvMart for your next high-density connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 6A per contact, making it suitable for high current wire-to-board applications.
It is rated for a maximum voltage of 600V, ensuring reliable power delivery in various applications.
The housing is made of durable nylon, while the contacts are brass plated with tin for corrosion resistance and enhanced conductivity.
The contacts are spaced at a pitch of 4.2 mm, which is standard for this type of connector.
It can operate within a temperature range of -40°C to 105°C, allowing for reliable performance in diverse environments.
This model features 24 male contacts, providing multiple connection points for wire-to-board applications.
It uses a solder termination type, which is common for securing connections on printed circuit boards.
Yes, this PCB header is shrouded, which helps protect the contacts and enhances durability during use.
It includes polarization, keying, and a positive locking mechanism to ensure secure and correct mating during installation.
This connector is manufactured in Mexico, ensuring a new product condition for immediate integration into applications.
The connector is designed with a right angle orientation, suitable for through hole mounting on PCBs.
It is ideal for high current wire-to-board applications in industrial automation, consumer electronics, and networking hardware.
