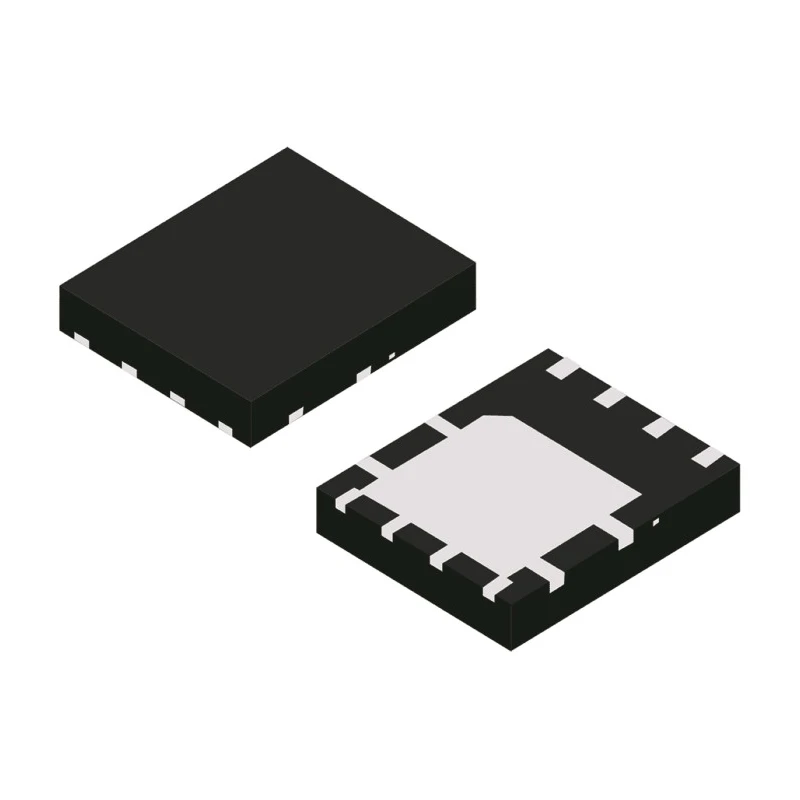

DiodesZetex 60 V 25 A Schottky Barrier Diode PowerDI5060 Package 8-Pin SBRT25U60SLP-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 5.1mm |
| Model | SBRT25U60SLP-13 |
| Width | 6mm |
| Mount Type | Surface |
| Series | 25A TrenchSBR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5060 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 8 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Barrier |
| Peak Reverse Current Ir | 80mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 550mV |
Key Features
- This diode offers a maximum continuous forward current of 25A, suitable for robust power applications.
- It supports a peak reverse repetitive voltage of 60V, ensuring reliable operation in demanding environments.
- The device maintains a low maximum forward voltage of 550mV, enhancing efficiency and reducing power loss.
- Operating temperature ranges from -55°C to a maximum of 150°C for versatile thermal performance.
- Peak non-repetitive forward surge current rating is 220A, allowing for high transient current tolerance.
- Compact dimensions include 5.1mm length, 6mm width, and 1.1mm height, enabling good PCB integration.
- Complies with automotive standard AEC-Q101 and industry standard FBI approvals.
- Constructed with trench Schottky barrier technology for superior thermal stability and reliability.
Product Description
DiodesZetex SBRT25U60SLP-13 is a high-performance Schottky Barrier Diode designed for efficient power rectification in electronic circuits. Packaged in a PowerDI5060 surface mount 8-pin format, this diode supports a continuous forward current of 25A and a peak reverse voltage of 60V, making it suitable for power supply and automotive applications.
The diode's low forward voltage drop of 550mV minimizes conduction losses, improving energy efficiency in power management systems. It is engineered using trench Schottky barrier technology, offering excellent thermal stability and robustness at elevated temperatures, with an operating range from -55°C to 150°C.
This device withstands non-repetitive surge currents up to 220A, providing reliable protection against transient conditions typically encountered in industrial and automotive environments.
Its compact dimensions of 5.1mm length, 6mm width, and 1.1mm height facilitate seamless PCB mounting and integration into compact assemblies. The diode meets automotive AEC-Q101 qualification, ensuring suitability for automotive electronics.
Applications of the SBRT25U60SLP-13 diode include power supplies, voltage rectification in DC-DC converters, free-wheeling diodes in motor drives, and high-efficiency power conversion systems in industrial and automotive sectors.
Features of this diode make it ideal for use in laboratory, manufacturing, construction, and HVAC control equipment requiring high efficiency, reliability, and thermal resilience. This diode offers a maximum continuous forward current of 25A, suitable for robust power applications.
It supports a peak reverse repetitive voltage of 60V, ensuring reliable operation in demanding environments. The device maintains a low maximum forward voltage of 550mV, enhancing efficiency and reducing power loss. Operating temperature ranges from -55°C to a maximum of 150°C for versatile thermal performance.
Peak non-repetitive forward surge current rating is 220A, allowing for high transient current tolerance. Compact dimensions include 5.1mm length, 6mm width, and 1.1mm height, enabling good PCB integration. Complies with automotive standard AEC-Q101 and industry standard FBI approvals.
Constructed with trench Schottky barrier technology for superior thermal stability and reliability. Explore the full range of Schottky Diodes & Rectifiers for reliable electronic component solutions at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 25A, making it suitable for robust power applications.
This model supports a peak reverse repetitive voltage of 60V, ensuring reliable operation in demanding environments.
The diode maintains a low maximum forward voltage drop of 550mV, enhancing efficiency and reducing power loss.
It operates within a temperature range from -55°C to a maximum of 150°C, allowing for versatile thermal performance.
The peak non-repetitive forward surge current rating is 220A, providing high transient current tolerance.
The compact dimensions of this diode are 5.1mm in length, 6mm in width, and 1.1mm in height, facilitating good PCB integration.
It is packaged in a PowerDI5060 surface mount format, which is suitable for various electronic applications.
This diode complies with the automotive standard AEC-Q101, ensuring its suitability for automotive electronics.
The diode is configured as a single barrier rectifier, designed for efficient power rectification.
It meets the FBI standards and has received approvals, ensuring compliance with industry requirements.
This diode is suitable for applications such as power supplies, voltage rectification in DC-DC converters, and free-wheeling diodes in motor drives.
