DiodesZetex 100 mA NPN 45 V 3-Pin SOT-323 Bipolar Transistor BC847AW-7-F

DiodesZetex BC847AW-7-F is a high-performance bipolar NPN transistor designed for use in electronic circuits requiring moderate current and voltage capabilities. Featuring a maximum DC collector current of 100 mA and a collector emitter voltage rating of 45 V, this transistor ensures reliable operation in amplification and switching applications.

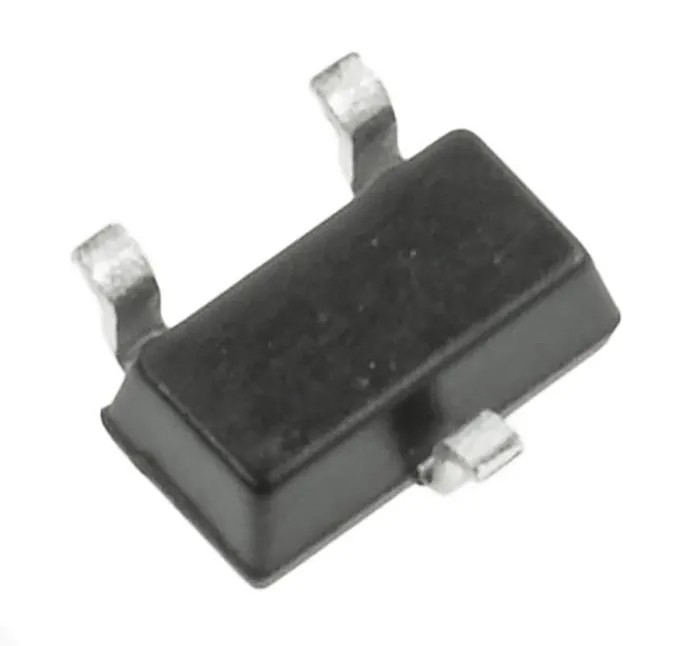

The device is housed in a compact 3-Pin SOT-323 package, ideal for surface mount technology (SMT) assemblies where PCB space is limited. With a maximum power dissipation of 200 mW, it is suitable for low power designs.

The transistor offers a minimum DC current gain (hFE) of 110, providing effective signal gain, and can operate at frequencies up to 100 MHz, making it suitable for HF circuits and other high-frequency electronics. The wide operating temperature range from -65°C to 150°C ensures stable performance in industrial and automotive environments.

Compliant with the automotive AEC-Q101 standard, the BC847AW-7-F transistor meets stringent quality and reliability requirements, making it a preferred choice in automotive and industrial electronics. The device's compact dimensions (2.2 mm x 2.2 mm x 1.1 mm) facilitate integration into dense circuit layouts.

This transistor is widely applicable in industrial instrumentation, signal processing, and control systems requiring small signal bipolar transistors with robust electrical characteristics. It is part of the BC847AW series renowned for consistent performance.

Supports a maximum DC collector current of 100 mA. Maximum collector emitter voltage (Vceo) is 45 V. Package type is compact SOT-323 with surface mount technology. Maximum power dissipation rated at 200 mW for reliable performance.

Minimum DC current gain (hFE) of 110 ensures signal amplification. Automotive-grade AEC-Q101 compliant series for enhanced reliability. Operating temperature range from -65°C to 150°C suitable for harsh environments. Maximum transition frequency of 100 MHz supports high-frequency applications.

Small dimensions of 2.2 mm length, 2.2 mm width, and 1.1 mm height allow compact PCB layouts. Designed as a single transistor configuration with NPN polarity. Explore a wide range of Bipolar Transistors and semiconductor components in EnvMart's catalog to find components matching your industrial and electronic design needs.
