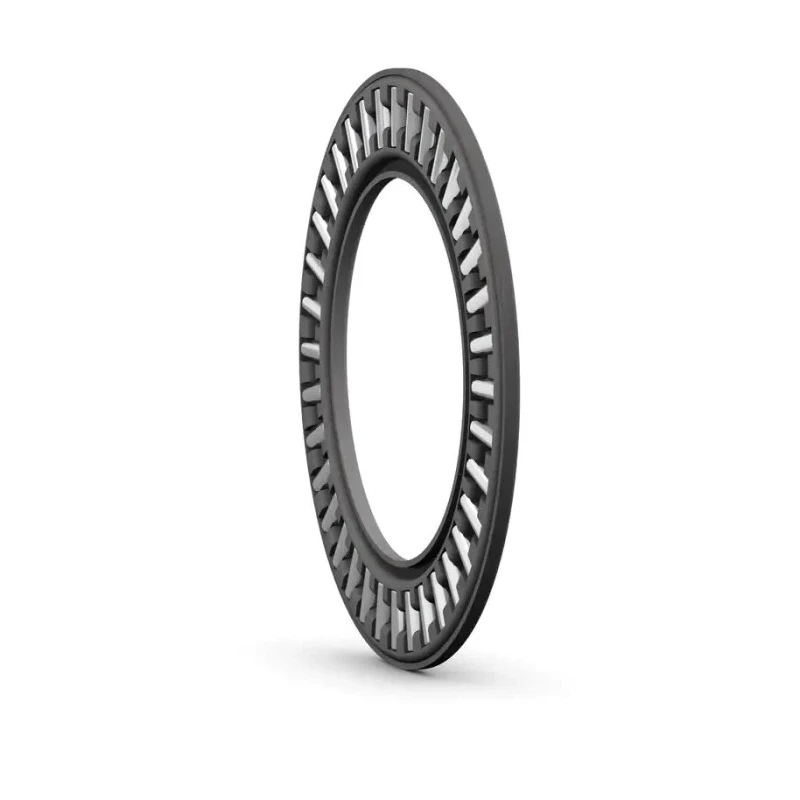

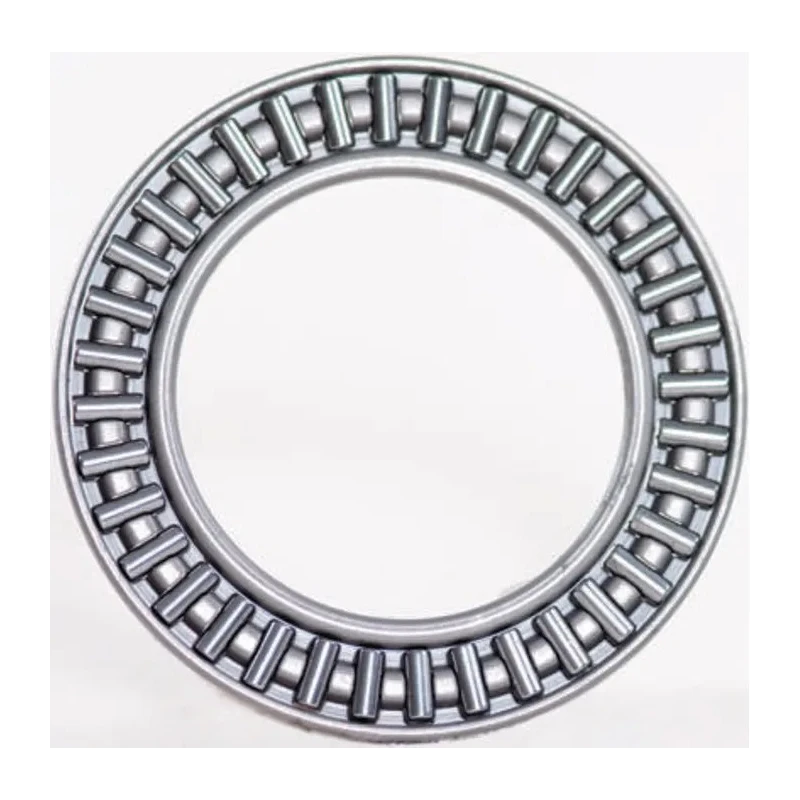

SKF Thrust Needle Roller Bearing, 100mm ID, 135mm OD, Sheet Steel Cage, Carbon Chromium Steel, Parallel Bore, AXK 100135

SKF AXK 100135 is a thrust needle Roller Bearing engineered for efficient rotary motion, high-load resistance, and longevity in industrial machinery. With a compact design featuring a 100mm inside diameter and 135mm outside diameter, it fits seamlessly into gearboxes, transmission systems, and industrial motors. The parallel bore type makes installation straightforward, reducing assembly time and potential misalignment, which is critical for consistent mechanical performance.

The bearing's cage is manufactured from sheet steel, providing strength and corrosion resistance, while the rolling elements and primary bearing material are carbon chromium steel - chosen for its high load-carrying capacity and fatigue resistance. These materials contribute to an extended operational life, even under cyclic loading and adverse working conditions.

Inside diameter of 100mm and outside diameter of 135mm. 4mm race width for compact heavy-duty configuration. Dynamic load rating: 76.5 kN; static load rating: 560 kN. Cage material: Sheet steel. Roller material: Steel. Single row, needle-type bearing design for high thrust-load capacity with minimal space requirements.

Limiting speed: 2800 rpm, maximum speed with oil lubrication: 1200 rpm, maximum speed with grease lubrication: 850 rpm. Compliance with ISO 199:1997, ISO 14001, ISO 492:1994, DIN 17 230:1980, and other international standards.

Applications for the AXK 100135 include gearboxes, industrial motors, and transmission systems where high thrust forces and space efficiency are required. This bearing is also well suited for repetitive, high-cycle loading environments due to its fatigue limit load of 65.5 kN. Its lightweight, robust design provides reliable service and helps minimize equipment downtime in commercial, industrial, and manufacturing contexts.

Choose SKF for trusted bearing performance across critical rotating machinery. For more SKF roller and thrust bearings, browse EnvMart's industrial tools and mechanical spares category.
