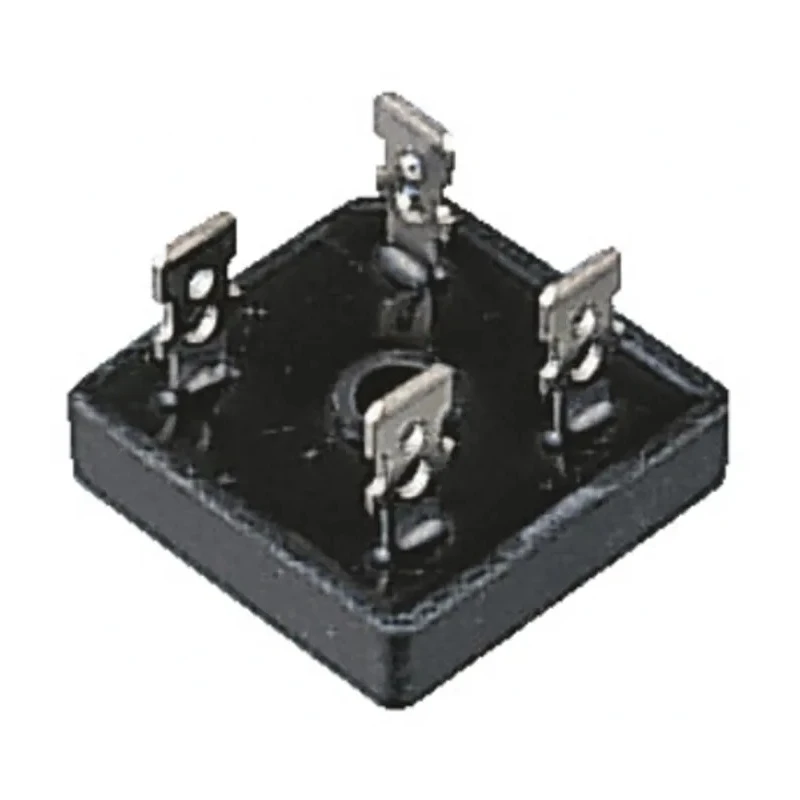

Vishay Single-Phase Glass Passivated Bridge Rectifier, 100 V, 15 A Forward Current, 300 A Surge Current, 4-Pin GBPC1501-E4/51
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 7.87mm |
| Length | 28.8mm |
| Model | GBPC1501-E4/51 |
| Width | 28.8mm |
| Mount Type | Screw |
| Series | GBPC15 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Designed with glass passivation for reliability and durability.
- Operates up to a maximum temperature of 150°C and minimum of -55°C.
- Capable of handling peak forward surge current of 300 A.
- Compact dimensions at 28.8 mm length and width with 7.87 mm height.
- Low peak forward voltage of 1.1 V ensuring efficient full-wave rectification.
- High case dielectric strength of 1500 Vrms and fast-on terminals for easy installation.
- Suitable for industrial and electronic power supply applications requiring DC conversion from AC input.
- Glass passivated single phase configuration ensures minimal leakage current (typically less than 0.5 μA).
Product Description
Vishay GBPC1501-E4/51 is a single-phase glass passivated bridge rectifier designed for converting AC input into DC output using a robust full-wave rectification method. This power semiconductor device offers a peak repetitive reverse voltage (VRRM) of 100 V and a steady forward current rating of 15 A.
Featuring a 4-pin screw mount package (GBPC type), it ensures secure mechanical installation and excellent thermal dissipation. The rectifier operates reliably within a temperature range from -55°C to 150°C, making it suitable for demanding industrial and electronic circuit environments.
Its peak non-repetitive forward surge current (IFSM) capability is 300 A, allowing it to handle high transient loads efficiently. The device exhibits a low peak forward voltage drop of 1.1 V typical, enhancing system efficiency by reducing power losses.
The compact rectangular form factor measures 28.8 mm in length and width with a height of 7.87 mm. Its glass passivation technology ensures a very low reverse leakage current, typically under 0.5 μA, thereby maintaining circuit integrity and performance.
Designed without automotive certification and made in China, the GBPC1501-E4/51 bridge rectifier is ideal for power supply circuits, industrial equipment, and control systems requiring reliable DC conversion from AC sources.
Glass passivated technology for enhanced reliability and longevity. Fast-on terminals enable quick and secure electrical connections. High thermal and dielectric strength ensure stability in harsh conditions. Compact design facilitates space-saving in electronic modules.
Specialized for single-phase full-wave rectification in industrial applications. Explore the Vishay category at EnvMart for comprehensive Bridge Rectifiers and related semiconductor components to meet diverse electronic infrastructure needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak repetitive reverse voltage (VRRM) of this bridge rectifier is 100 V.
This model has a steady forward current rating of 15 A.
It can operate at a maximum temperature of 150°C.
The minimum operating temperature is -55°C.
The peak non-repetitive forward surge current (IFSM) capability is 300 A.
This unit measures 28.8 mm in length and width, with a height of 7.87 mm.
It features a screw mount package for secure mechanical installation.
The typical peak forward voltage drop is 1.1 V, which enhances system efficiency.
This model is designed for single-phase configuration.
This bridge rectifier has a pin count of 4.
The peak reverse current is rated at 500 μA.
It is suitable for industrial and electronic power supply applications that require DC conversion from AC input.
