DiodesZetex 4 2-Input AND Schmitt Trigger Input Logic Gate, 14-Pin SOIC, 74AHCT08S14-13

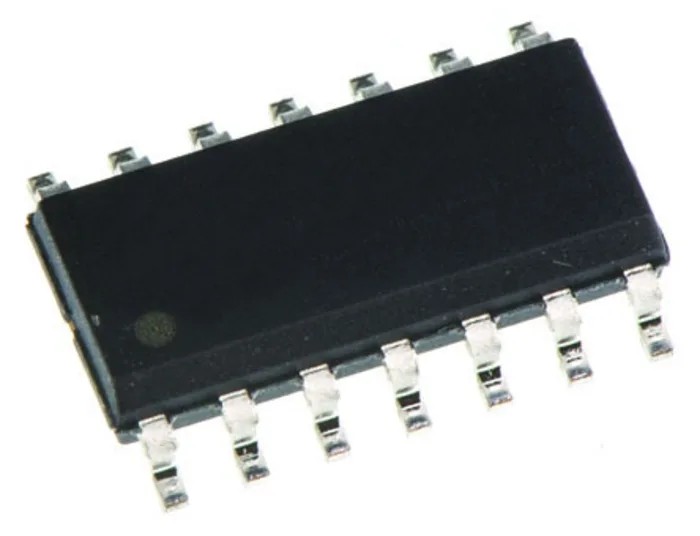

DiodesZetex 74AHCT08S14-13 is a 4 2-input AND Schmitt Trigger input logic gate housed in a 14-pin Small Outline Integrated Circuit (SOIC) package. This device belongs to the 74AHCT family, known for high-speed CMOS logic with low power consumption, advancing industrial and commercial electronics applications.

The logic IC operates on a supply voltage range of 4.5V to 5.5V, allowing compatibility with TTL voltage level inputs. It features four independent 2-input AND gates with Schmitt trigger inputs, which improve noise immunity and signal integrity on the input lines. The device supports output currents of up to 8mA sinking or sourcing at 4.5V supply voltage, suitable for driving a variety of digital components.

With a maximum propagation delay of 11 nanoseconds, the 74AHCT08S14-13 supports high-speed digital logic operations. Its compact 14-pin SOIC package, measuring 8.74mm in length and 1.48mm in height, facilitates efficient surface mount PCB assembly in automated manufacturing lines.

The IC is qualified for operation in temperatures ranging from -40°C to 125°C, covering a wide industrial temperature range. Its push-pull output type provides robust drive strength for digital signals. Additional features include compliance with ESD protection standards, ensuring device longevity and reliability in harsh electrostatic environments.

The 74AHCT series by Diodes Inc offers a broad selection of standard logic gates, hex inverters, and buffers, making it suitable for diverse embedded system designs, industrial automation, and communication electronics.

The device operates with a supply voltage range of 4.5V to 5.5V. It features 4 independent 2-input AND gates with Schmitt trigger inputs for noise immunity. Maximum propagation delay time is 11 nanoseconds under specified load conditions.

Supports output current sinking or sourcing up to 8mA at 4.5V supply. Operating temperature ranges from -40°C up to 125°C for industrial reliability. Compact SOIC package dimensions with a height of 1.48mm and length of 8.74mm.

TTL voltage level compatible inputs ensure easy interfacing with other digital ICs. Designed for surface mounting, suitable for automated PCB assembly processes. Output type is push-pull, providing strong drive capability.

Device meets industry ESD protection standards with robust tolerance levels.

This Logic Gate IC is ideal for applications in industrial automation controls, digital signal processing, embedded system design, communication devices, and other electronic systems requiring reliable, high-speed AND logic operations. DiodesZetex logic ICs are known for quality and efficiency, making them preferred components for professional electronic manufacturing and repair.
